35 80-0180-307, Rev A
NOTE: Do not use Dummy Cylinder!
7. REMOVE the cylinder with Locking Ring Tool (P/N 22-0594),
REPLACE with new cylinder, and SECURE the new cylinder with
locking ring (see Figure 31).

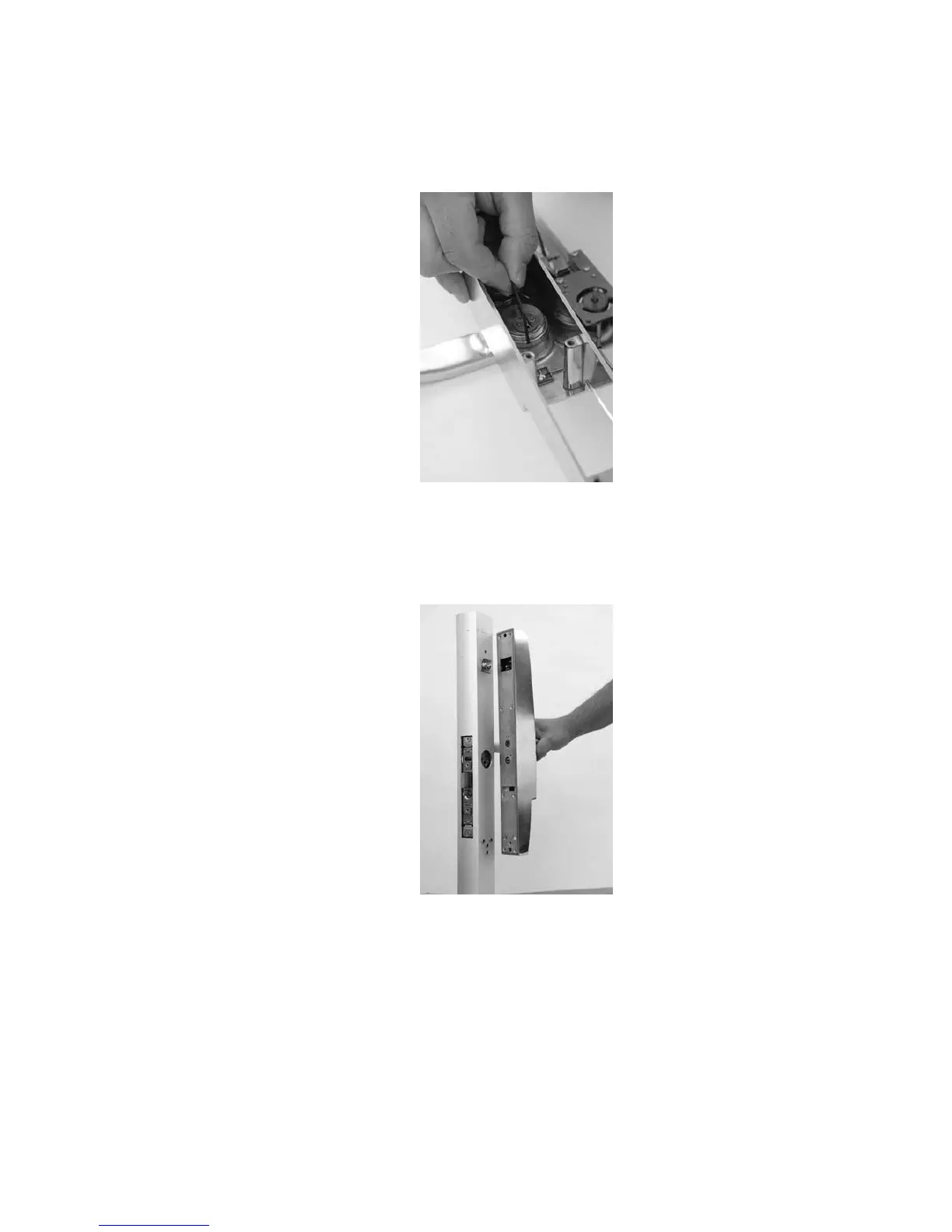

Figure 31
8. Gently PLACE back plate back on housing, and SECURE with the
eight (8) #10-32 x 5/8 screws.
9. PLACE eForce 150 back on mounting bracket and GUIDE spindle
into cam plug (see Figure 32).
Figure 32
10. ENSURE back surface of trim is flush with door stile surface, and
then SECURE with two (2) #10-32 x 5/8 screws through the inside
bottom of trim.
