36 80-0180-307, Rev A

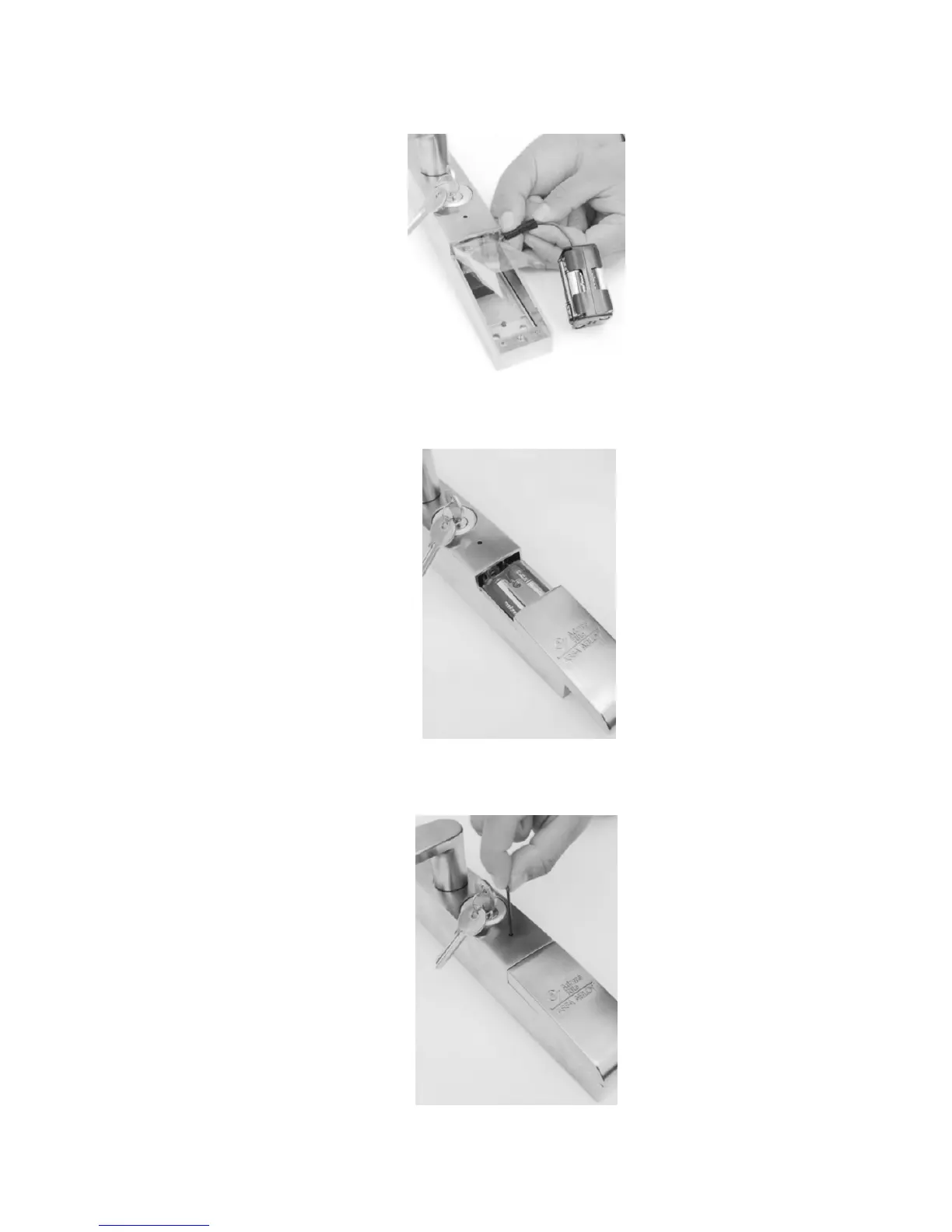

11. PLUG the battery pack into the eForce 150 connector (see
Figure 33).
Figure 33
12. INSERT the battery case into the eForce 150.
13. SLIDE battery cover over the inserted battery case (see Figure 34).
Figure 34
14. INSERT the Allen key and TURN clockwise two full turns to secure
the battery cover (see Figure 35).
Figure 35
