ADAMS RITE 3090 - Preparing the Spindle

8 80-0180-307, Rev A
Preparing the Spindle
NOTE 1: Steps 1–2 are performed for Adams Rite MS1850 Deadbolts,
4500/4900 Deadlatches, and 8000 Series Mortise Exit
Devices.
NOTE 2: One notch is added for a 2” thick door.
1. SNAP OFF the spindle at the fifth (5
th
) notch (see Figure 4).
2. INSERT the flat end into the exit device.

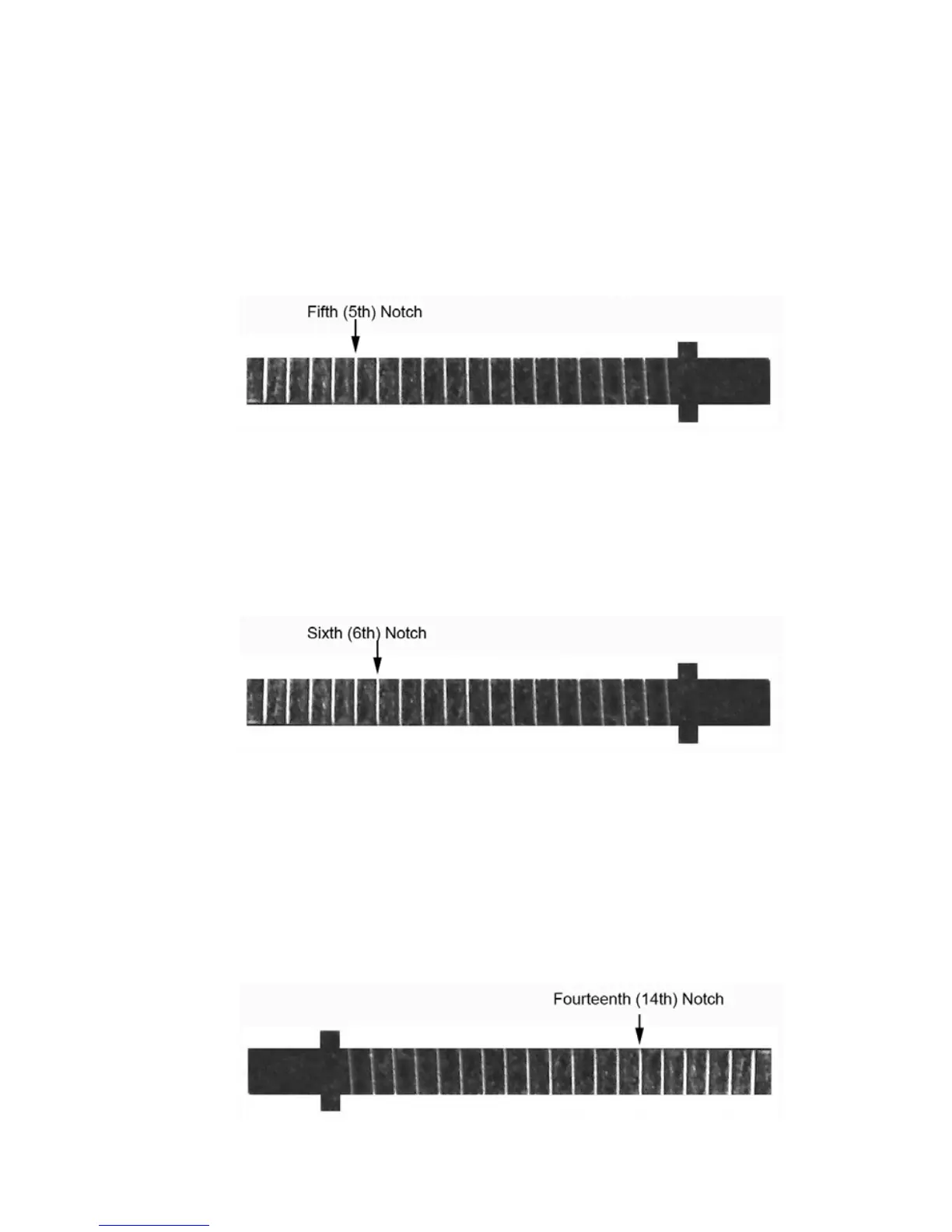

Figure 4
NOTE 1: Steps 3–4 are performed for Adams Rite 8600 Concealed
Vertical Rod Exit Devices.
NOTE 2: Two (2) notches are added for a 2” thick door.
3. SNAP OFF the spindle at the sixth (6
th
) notch (see Figure 5).
4. INSERT the flat end into the exit device.
Figure 5
NOTE 1: Steps 5–6 are performed for Adams Rite 8000 Series Surface
Vertical Rod and Rim Exit Devices, Yale 7200 Series Narrow
Stile Exit Devices, and Corbin Russwin ED4000 Series Exit
Devices.
NOTE 2: Two (2) notches are added for a 2” thick door.
5. SNAP OFF the spindle at the fourteenth (14
th
) notch (see Figure 6).
6. INSERT the “T” end into the exit device.
Figure 6
