Advanced Instruments Osmo1 User Guide

Chapter 7 Diagnostics
53
Osmo1® Single-Sample Micro-Osmometer User Guide

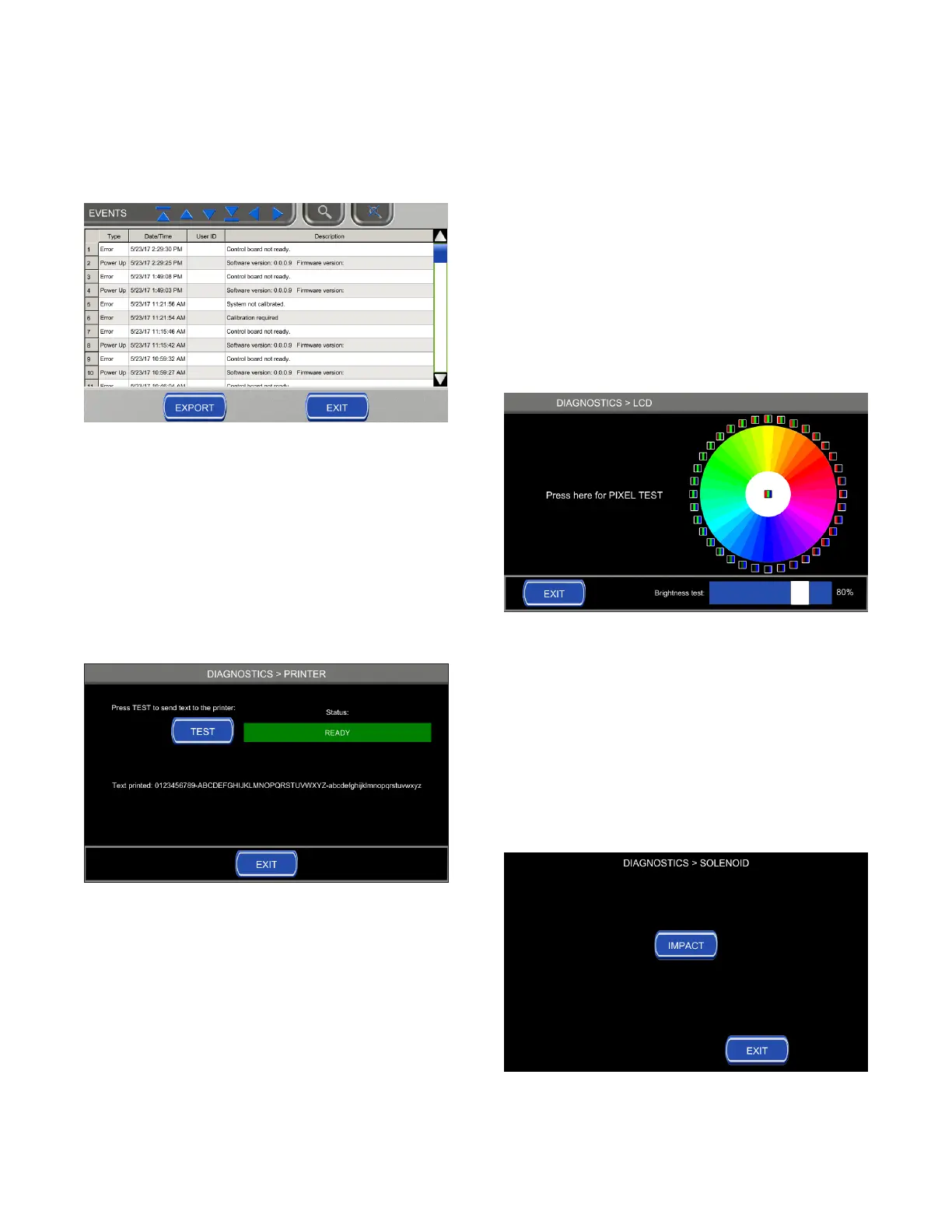

Figure 78: Events log
7.7 Printer
From the Diagnostics menu, select Printer to open the
Printer diagnostics screen (Figure 79).
From the Printer screen, tap Test to initiate a built-in
print test of all alpha-numeric characters. The status
display is Ready if the printer is functioning properly.
Tap Exit to return to the Diagnostics menu.
Figure 79: Printer screen
7.8 LCD
From the Diagnostics menu, select LCD to open the LCD
diagnostics screen (Figure 80).
From the LCD screen, you can initiate a pixel test to
check the screen for “dead pixels” of various colors.
You can also test the LCD backlight using the brightness
test slider.
Tap Exit to return to the Diagnostics menu.
Figure 80: LCD screen
7.9 Solenoid
From the Diagnostics menu, select Solenoid to open the
Solenoid diagnostics screen (Figure 81).
You can test that the instrument solenoid is working
from this screen. To activate the solenoid test, tap
Impact.
Tap Exit to return to the Diagnostics menu.
Figure 81: Solenoid screen
