AIMB-276 User Manual 6

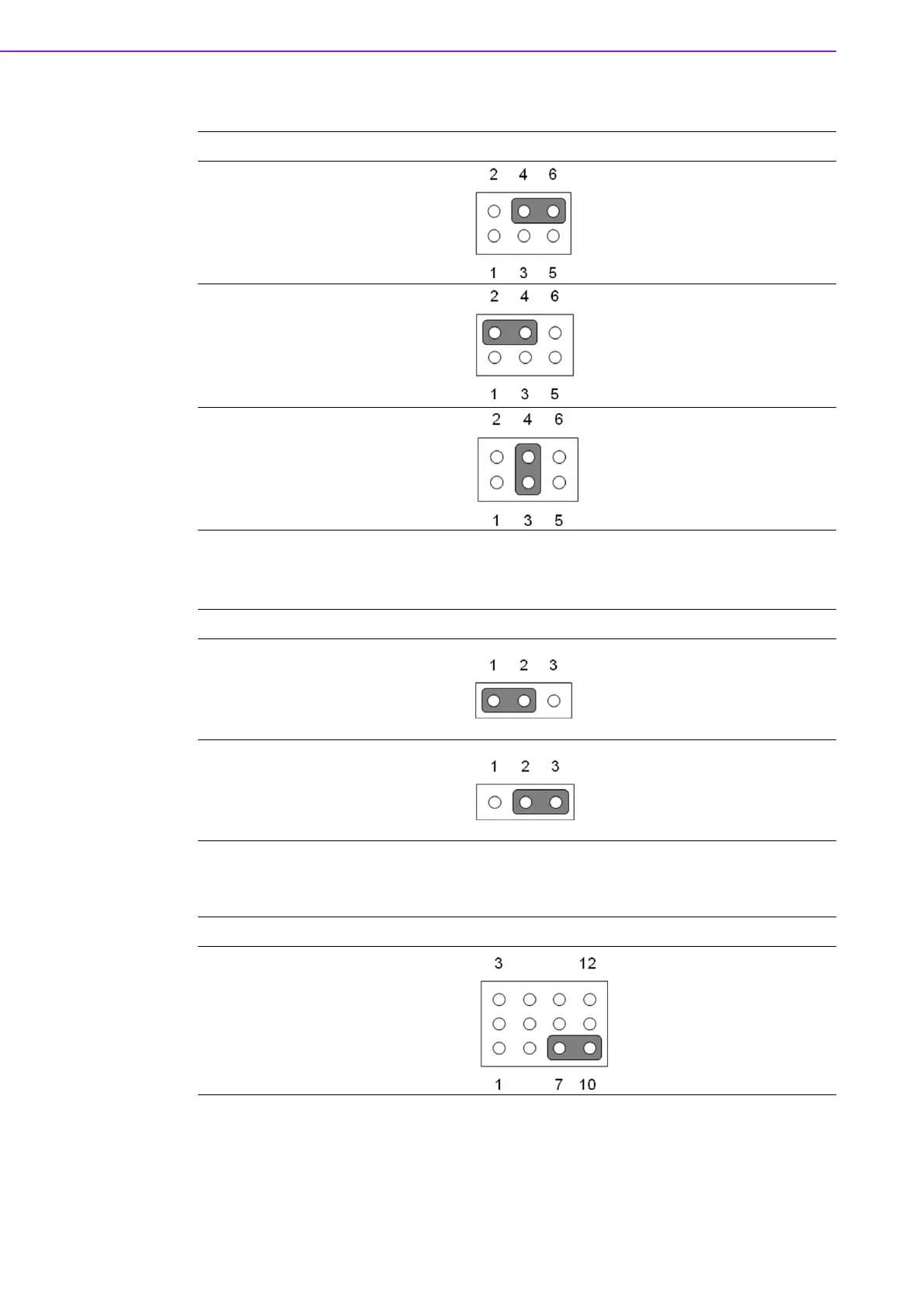

1. Voltage selection for LVDS1/EDP1 connector (JLVDS1)
2. CMOS clear (JCMOS1)
3. PWRBTN#/ RESET#/HDD LED/ Serial bus from HW monitor IC/Internal Buzzer
/ External Speaker header (JFP1)
Function Jumper Setting
Jumper position for +3.3V (Default)
Jumper position for +5V
Jumper position for +12V
Function Jumper Setting
Keep CMOS Data (Default)
Clear CMOS Data
Function Jumper Setting
Internal Buzzer (Default)
