7 AIMB-276 User Manual
Chapter 1 General Information

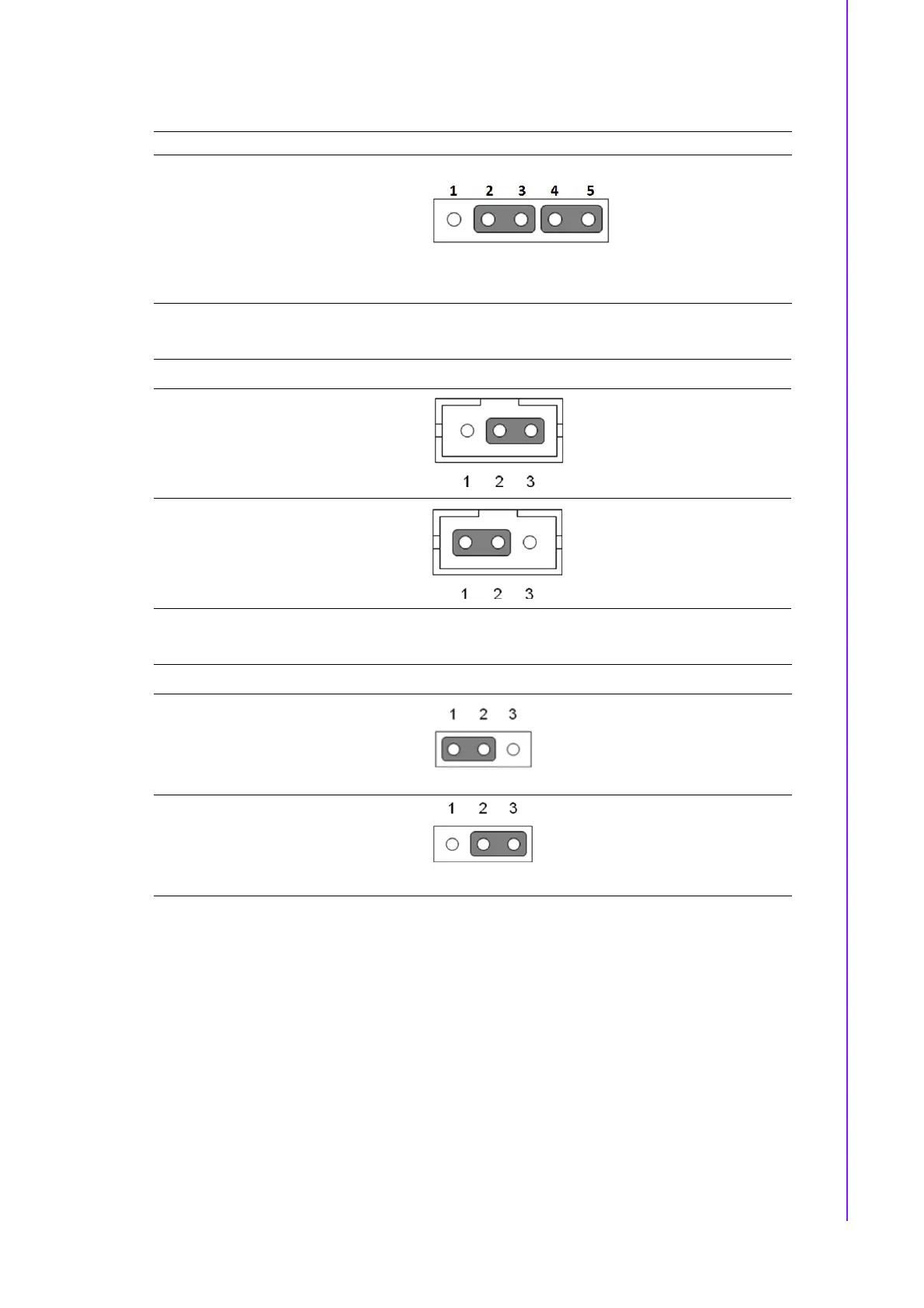

4. Watchdog timer output and OBS beep (JWDT1+ JOBS1)
5. AT / ATX Mode selection (PSON1)
6. Case open selection pin header (JCASEOP_SW1)
Function Jumper Setting
Watchdog Timer Output (2-3) (Default)
OBS BEEP(4-5) (Default)
Function Jumper Setting
ATX Mode (Default)
AT Mode
Function Jumper Setting
Normal Close
Normal Open (Default)
