AIMB-276 User Manual 8

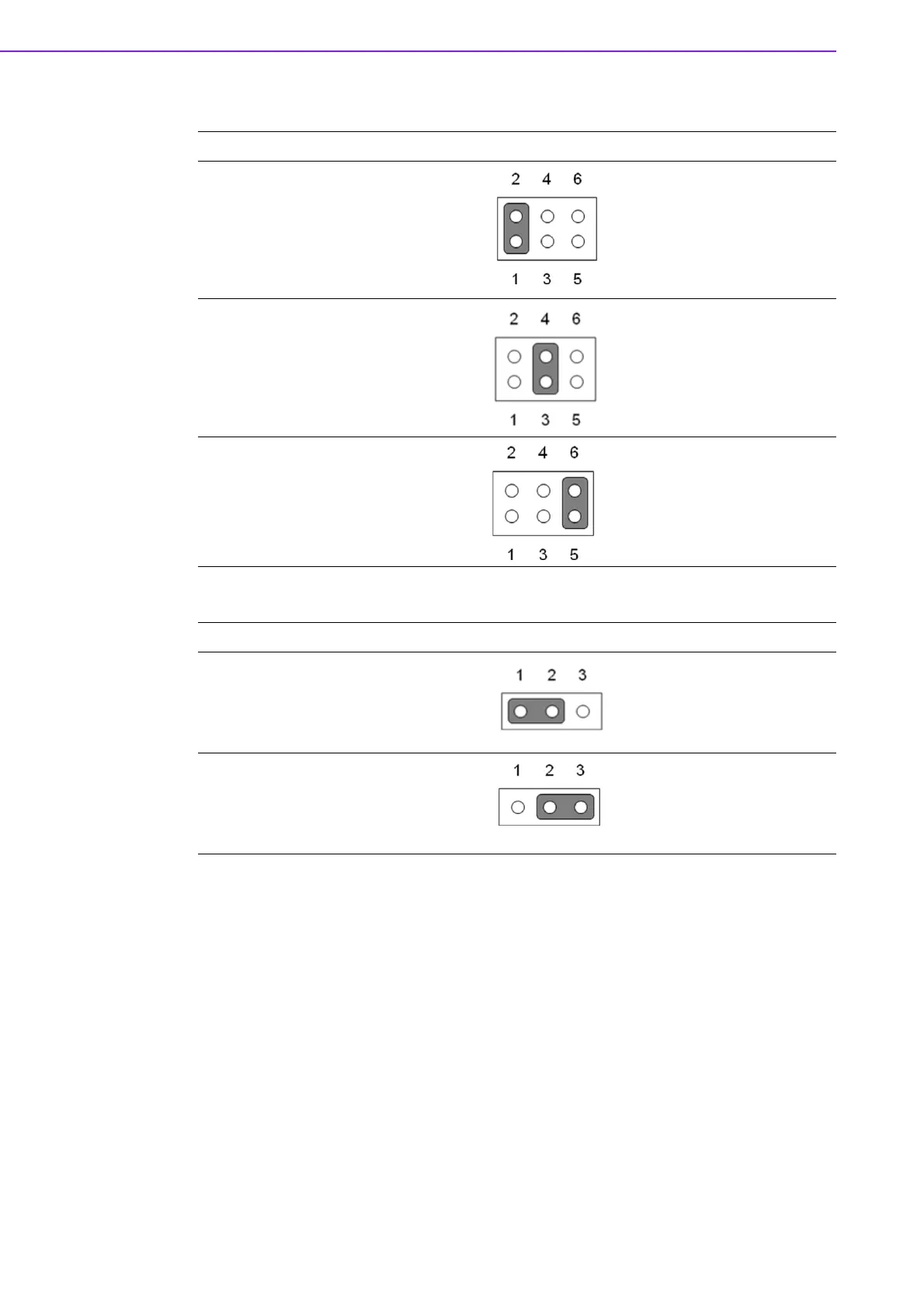

7. COM1_RI# Pin RI# / 5V / 12V selection (JSETCOM1_V1)
8. LVDS VESA, JEIDA format selection pin header (JLVDS_VCON1)
Function Jumper Setting
Jumper position for RI# (Default)
Jumper position for +5V
Jumper position for +12V
Function Jumper Setting
JEIDA mode (HI=+3.3V)
VESA mode (Low=0V) (Default)
