57

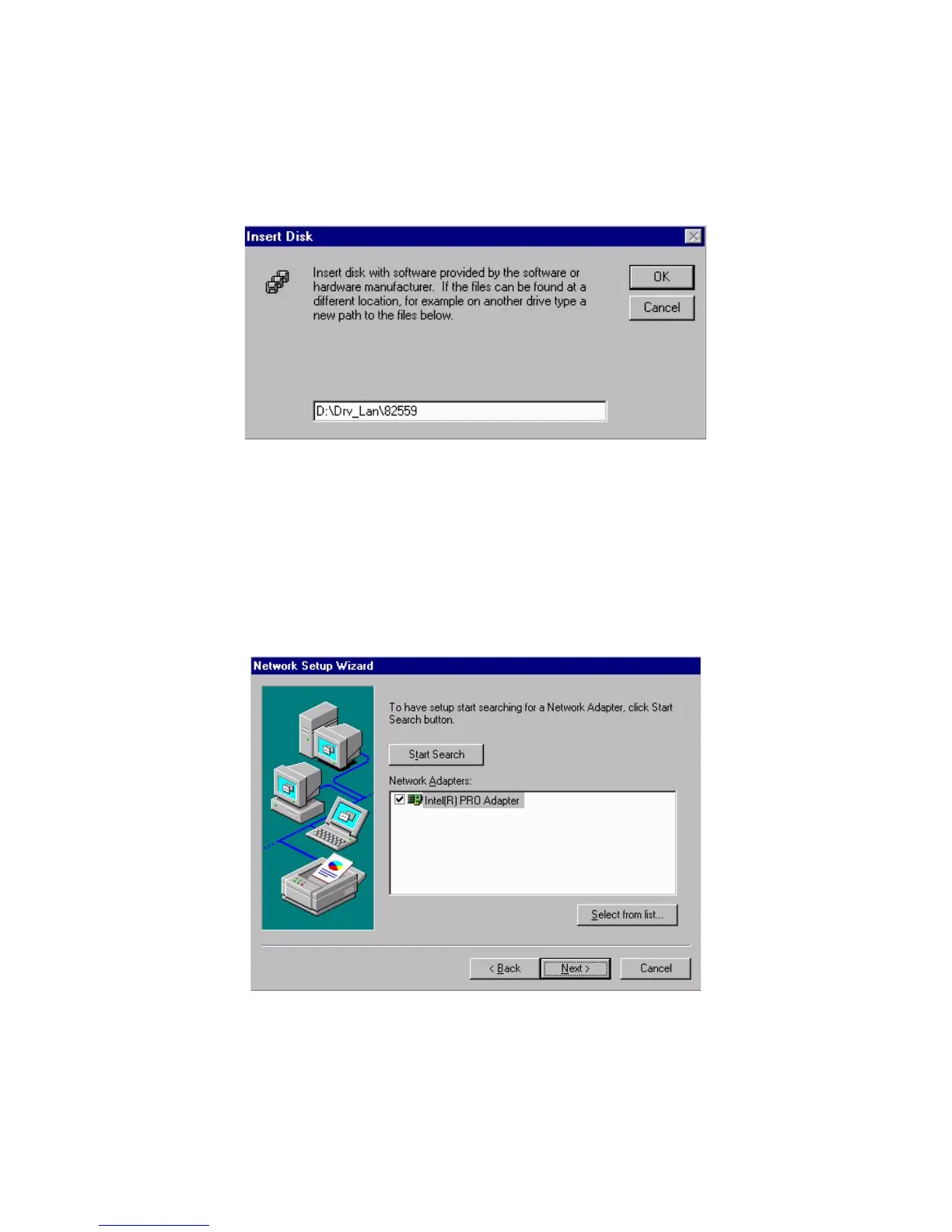

Chapter 6
4.
When
the "Insert Disk"
window appears, i
nsert the utility
CD into
the CD-ROM drive. The correct fi
le path is D:\Drv_Lan\82559
.
When you have the correct file path, click on "OK".
5.
In the
"Network" windo
w
, select
the "Adapters" t
ab. Under "Net-
work Adapters:", hi
ghlight "Intel® Pro Adap
ter". Then click on
"Close".
66
68
Table of Contents
Default Chapter
3
Table of Contents
3
General Information
9
Chapter 1 Hardware Configuration
10
Introduction
10
PCA-6184, Ed. 1 User's Manual
10
Features
11
Specifications
12
System
12
Memory
12
Input/Output
12
VGA Interface
12
Ethernet LAN
13
Industrial Features
13
Mechanical and Environmental Specifications
13
Jumpers and Connectors
14
Table 1.1:Jumpers
14
Table 1.2:Connectors
14
Board Layout: Jumper and Connector Locations
16
Figure 1.1:Jumper and Connecter Locations
16
Figure 1.2:Extension I/O Daughter Board
17
Safety Precautions
18
Jumper Settings
18
How to Set Jumpers
18
CMOS Clear (J1)
19
Table 1.3:CMOS (J1)
19
Watchdog Timer Output (J2)
19
Table 1.4:Watchdog Timer Output (J2)
19
System Memory
20
Supplementary Information about Dimms
20
Memory Installation Procedures
20
Cache Memory
20
CPU Installation
21
Power Supply
21
Chapter 2 Connecting Peripherals
23
Primary (CN1) and Secondary (CN2) IDE Connectors
24
Floppy Drive Connector (CN3)
25
Parallel Port (CN4)
25
USB Ports (CN6)
26
VGA Connector (CN7)
26
10/100Base-T Ethernet Connectors (CN8 and CN34)
27
Serial Ports (CN9: COM1; CN10: COM2)
27
Table 2.1:Serial Port Connections (COM1, COM2))
27
PS/2 Keyboard and Mouse Connectors (CN11 and 33)
28
External Keyboard Connector (CN12)
28
Infrared (IR) Connector (CN13)
29
CPU Fan Connector (CN14)
29
Front Panel Connectors (CN16, 17, 18, 19, 21&22)
30
Power LED and Keyboard Lock(CN16)
30
Table 2.2:PS/2 or ATX Power Supply LED Status
30
External Speaker (CN17)
30
Reset (CN18)
31
Hdd Led (Cn19)
31
SM Bus Connector (CN29)
31
Connecting to SNMP-1000 Remote Manager
31
ATX Power Control Connectors (CN20 and 21)
32
ATX Feature (CN20) and Soft Power Switch (CN21)
32
Controlling the Soft Power Switch
33
Chapter 3 Award BIOS Setup
36
Introduction
36
Figure 3.1:Award BIOS Setup Initial Screen
36
Entering Setup
36
Standard CMOS Setup
37
Figure 3.2:Standard CMOS Features Screen
37
CMOS RAM Backup
37
Advanced BIOS Features
38
Figure 3.3:Advanced BIOS Features Screen
38
Virus Warning
38
CPU L1 & L2 Cache
38
Quick Power on Self Test
38
First/Second/Third/Other Boot Device
38
Swap Floppy Drive
39
Boot up Floppy Seek
39
Boot up Numlock Status
39
Gate A20 Option
39
Typematic Rate Setting
39
Typematic Rate (Chars/Sec)
39
Typematic Delay (Msec)
39
Security Option
39
Advanced Chipset Features
40
Figure 3.4:Advanced Chipset Features Screen
40
DRAM Timing Selectable
41
CAS Letency Time
41
Active to Precharge Delay
41
DRAM RAS#-To-CAS Delay
41
DRAM RAS# Precharge
41
DRAM DATA Integrity Mode
41
Memory Frequency for Onboard UBS
41
DRAM Read Thermal Mgmt
41
System BIOS Cacheable
41
Video BIOS Cacheable
42
Memory Hole at 15M-16M
42
Delay Transaction
42
Delay Prior to Thermal
42
AGP Apecture Size (MB)
42
Integrated Peripherals
43
Figure 3.5:Integrated Peripherals (1)
43
On-Chip Primary/Secondary PCI IDE
43
IDE Primary Master/Slave PIO/UDMA, and IDE Secondary Master/Slave PIO/UDMA Modes (Auto)
43
USB Controller
43
USB Keyboard Support
43
Onboard FDC Controller
44
Onboard Serial Port 1 (3F8H/IRQ4)
44
Onboard Serial Port 2 (2F8H/IRQ3)
44
UART Mode Select
44
Rxd, Txd Active
44
Figure 3.6:Integrated Peripherals (2)
44
Onboard Parallel Port (378/IRQ7)
45
Parallel Port Mode (ECP + EPP)
45
ECP Mode Use DMA
45
Power Management Setup
45
Figure 3.7:Power Management Setup
45
Power-Supply Type
46
Power Management
46
Video off in Suspend
46
MODEM Use IRQ
46
Soft-Off by PWRBTN
46
CPU THRM-Throttling
47
Power on by LAN
47
Power on by Ring
47
Power on by Alarm
47
Figure 3.8:Pnp/Pci Configurations Screen
47
Pnp os Installed
47
Reset Configuration Data
48
Resources Controlled by
48
PC Health Status
48
CPU Warning Temperature
48
Current CPU Temperature
48
Current System Temperature
48
Figure 3.9:PC Health Status Screen
48
12V/-5V/-12V
49
Vcore
49
Load Setup Defaults
49
Password Setting
49
Save & Exit Setup
50
Exit Without Saving
50
Chapter 4 Chipset Software Installation Utility
52
Before You Begin
52
Introduction
53
Installing the CSI Utility
54
Chapter 5 AGP SVGA Setup
58
Before You Begin
58
Features
59
VGA Installation
59
Chapter 6 LAN Configuration
64
Introduction
64
Features
64
Driver Installation
64
Windows NT Drivers (Intel 82559) Setup Procedure
65
Windows 2000 Drivers (Intel 82559) Setup Procedure
69
Chapter 7 Onboard Security Setup
75
Introduction
76
Windows 9X Drivers Setup Procedure
76
Windows NT Drivers Setup Procedure
78
Using the OBS Hardware Doctor Utility
81
Chapter 8 Ultra ATA Storage Driver Setup
84
Introduction
84
Features
84
Installation
85
Displaying Driver Information
89
Appendix A Programming the Watchdog Timer
92
Programming the Watchdog Timer
92
Watchdog Timer Overview
92
Reset/ Interrupt Selection
92
Example Program
95
A.1.4 Example Program
95
Appendix B Pin Assignments
102
IDE Hard Drive Connector(CN1, CN2)
102
Floppy Drive Connector (CN3)
103
Parallel Port Connector (CN4)
104
USB Connector (CN6)
105
VGA Connector (CN7)
105
COM1/COM2 Serial Port (CN9, CN10)
106
Ethernet Base-T Connector (CN8, CN34)
106
Connector (CN8, CN34)
106
External Keyboard Connector (CN12)
107
Keyboard and Mouse Connnector (CN11)
107
B.10 IR Connector (CN13)
108
CPU Fan Power Connector (CN14)
108
IR Connector (CN13)
108
External Speaker Connector (CN17)
109
Power LED and Keyboard Lock (CN16)
109
Keyboard Lock (CN 16)
109
HDD LED Connector (CN19)
110
Reset Connector (CN18)
110
ATX Feature Connector (CN20)
111
ATX Soft Power Switch (CN21)
111
Extension I/O Board Connector (CN27)
112
Extension I/O Board Connector (CN28)
112
SM Bus Connector (CN29)
113
System I/O Ports
113
B.21 System I/O Ports
113
DMA Channel Assignments
114
B.23 Interrupt Assignments
115
B.24 1St MB Memory Map
115
B.25 PCI Bus Map
116
