PPC-3150/3170 User M
anual
18
5.
Relock the HDD bracket, and connect th
e dat
a cable to the mainboard. (See
Figure 2.13)
Figure 2.13
2.5
Inst
alling MiniSA
T
A

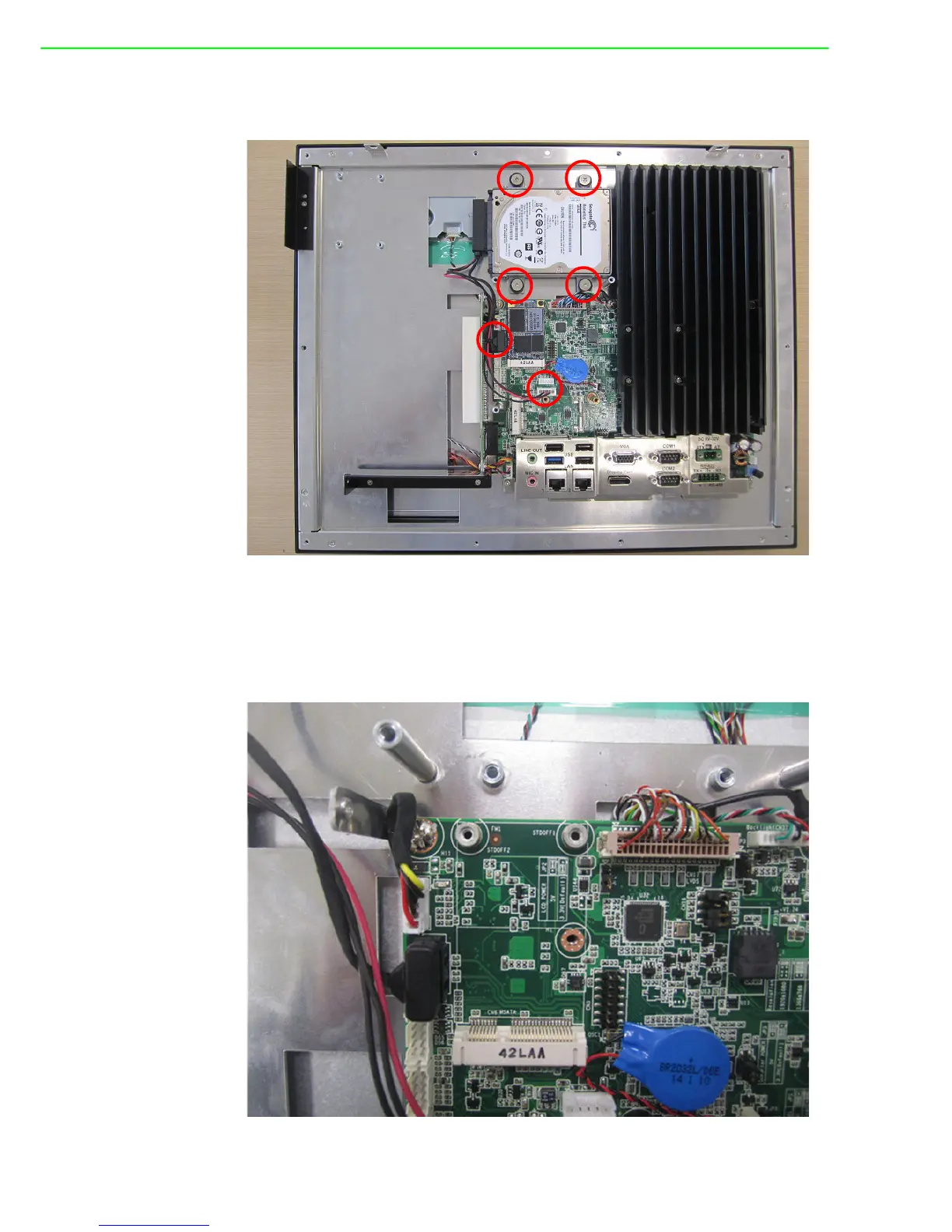

1.
Follow installation step
s 1 ~ 2 in the Section 2.4, and you’ll see the d
isassem-
bled machine as shown in Figure 2.14.
Figure 2.14
