39 PPC-3150/3170 User Manual
Chapter 2 System Installation & Setup
D. Installing COM Module
There are two ways to fix COM cable: One is to fix it onto COM ironware (default); the
other is to fix in onto the shield of the expansion card. Please see below for the
details.
D.1 Installing COM module onto the side I/O shield:
1. Follow the steps 1 ~ 3 in Section A.
2. Take COM module out of module box and fix it with two screws.

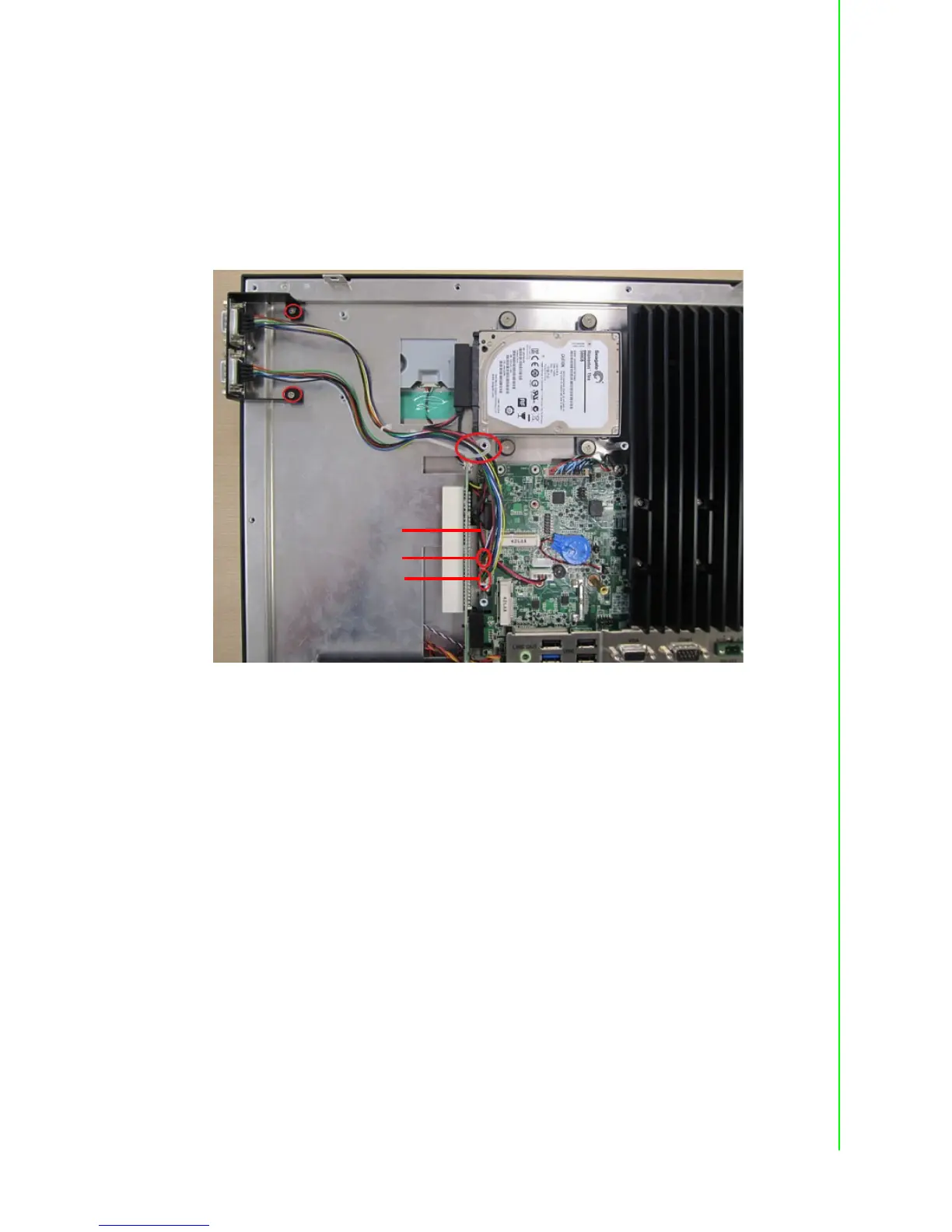

Then connect COM cable and bind it with cable tie. (See Figure 2.51)
Figure 2.51
To Next Page
