35 PPC-3150/3170 User Manual
Chapter 2 System Installation & Setup
B. Installing CF Card Module
1. Follow the steps 1 ~ 3 in Section A.
2. Take CF module out of module box and remove the two screws on iron tray.
Fix the iron tray to the bottom of CF card, and insert it in the direction as indi-
cated in the below figure. Then connect SATA+SATA Power line. (See Figure
2.34)

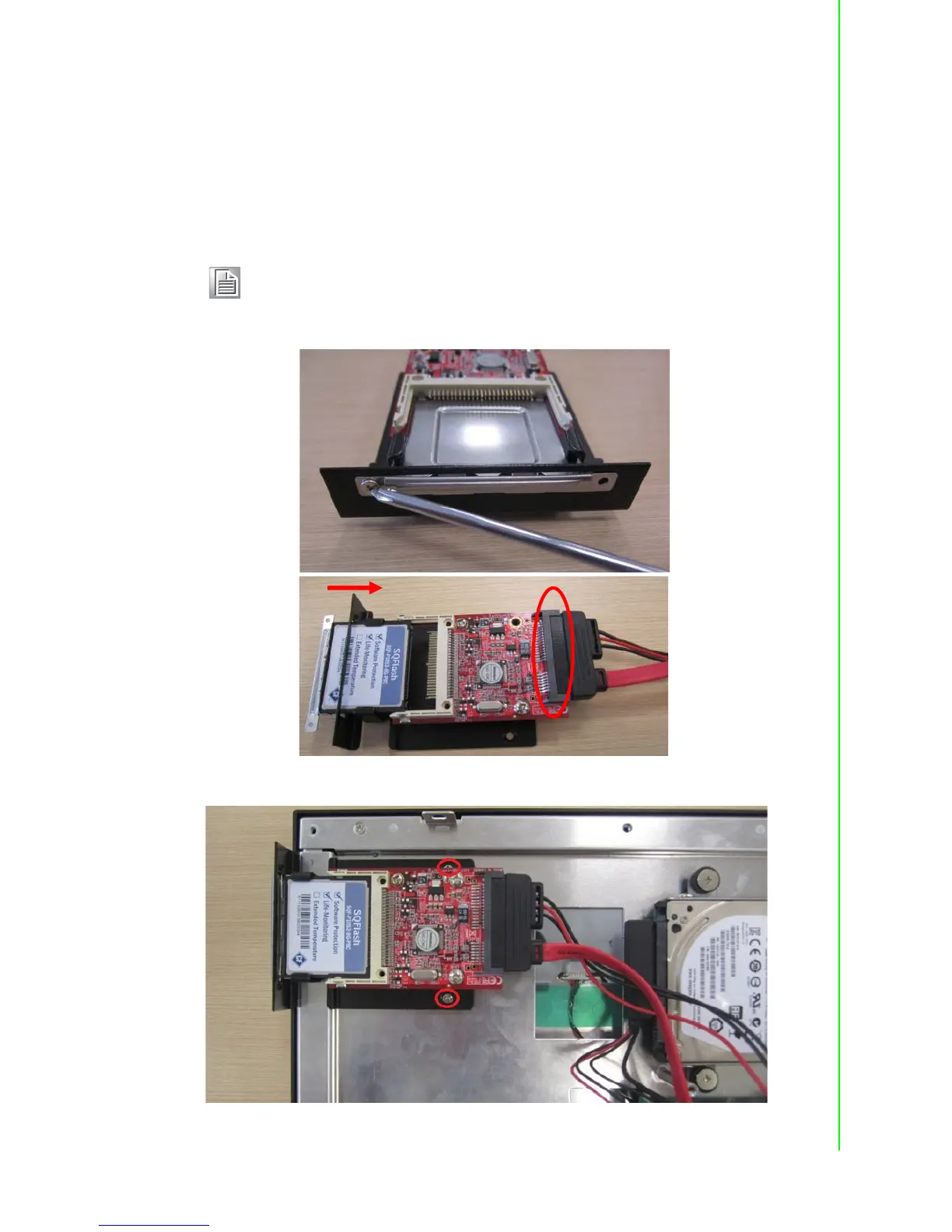

The assembled CF card module is shown as Figure 2.44.
Figure 2.44
Figure 2.45
Note! When installing CF card, the iron tray should be installed on the bottom.
To Next Page
