41
PPC-3150/31
70 User Manual
Chapter 2
System
Installation
&
Setup
3.

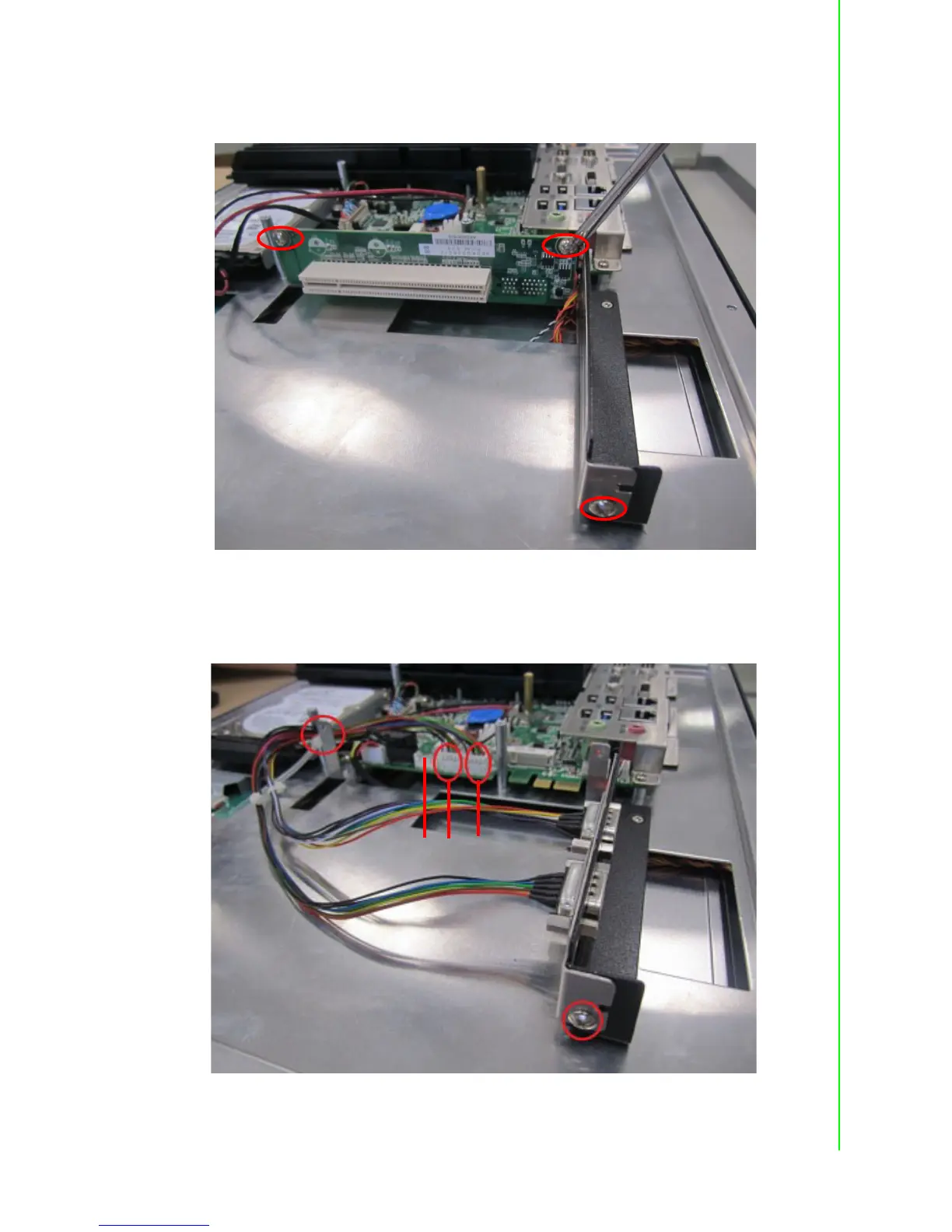

Remove the two screws on the
riser card and the screw on the shield of expan-
sion slot. (See Figure 2.54)
Figure 2.54
4.
Fix COM module on the blade of exp
ansion slot. Then connect two COM cables
and bind them with cable tie. (See Figu
re 2.55)
Figure 2.55
GPIO
COM4
COM5
48
50
