PPC-3150/3170 User M
anual
28
2.10
Inst
alling Optional Modules
PPC-3150/3170 supports four
optional modul
es: USB module, CFast module, CF
module and COM module (See Figure 2.32).
For detailed in
stallation procedures, see Section A, B, C and D in the below
.
Figure 2.32
A. Inst
alling CFast Module
1.
Remove the eleven screws and take down the four plugs of the
rear cover
. (See
Figure 2.33 and 2.34)

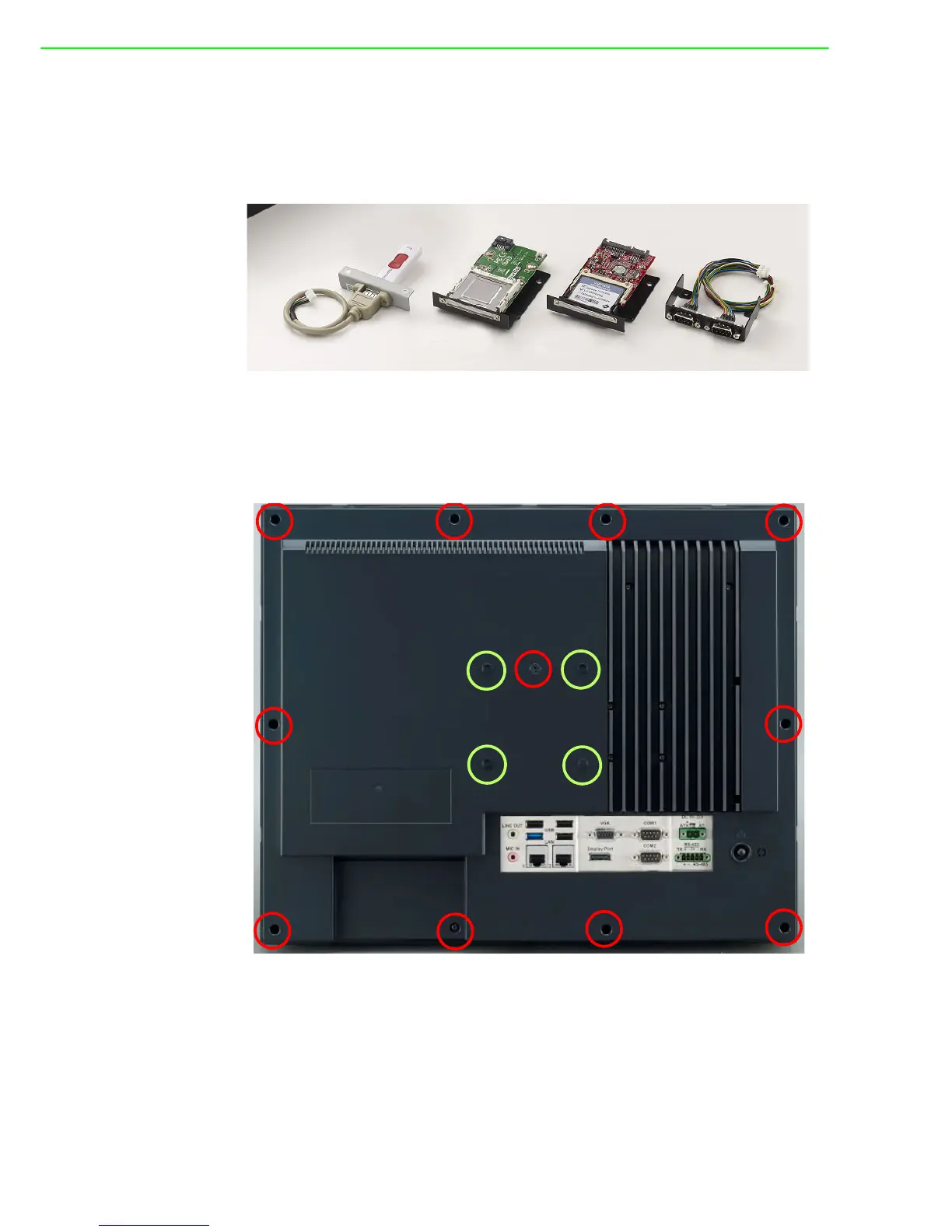

Figure 2.33
USB Module CFast Module
CF Module
COM Module
35
37
