61
PPC-3150/31
70 User Manual
Chapter 4
Software
Setup
4.2.8
OS Selection

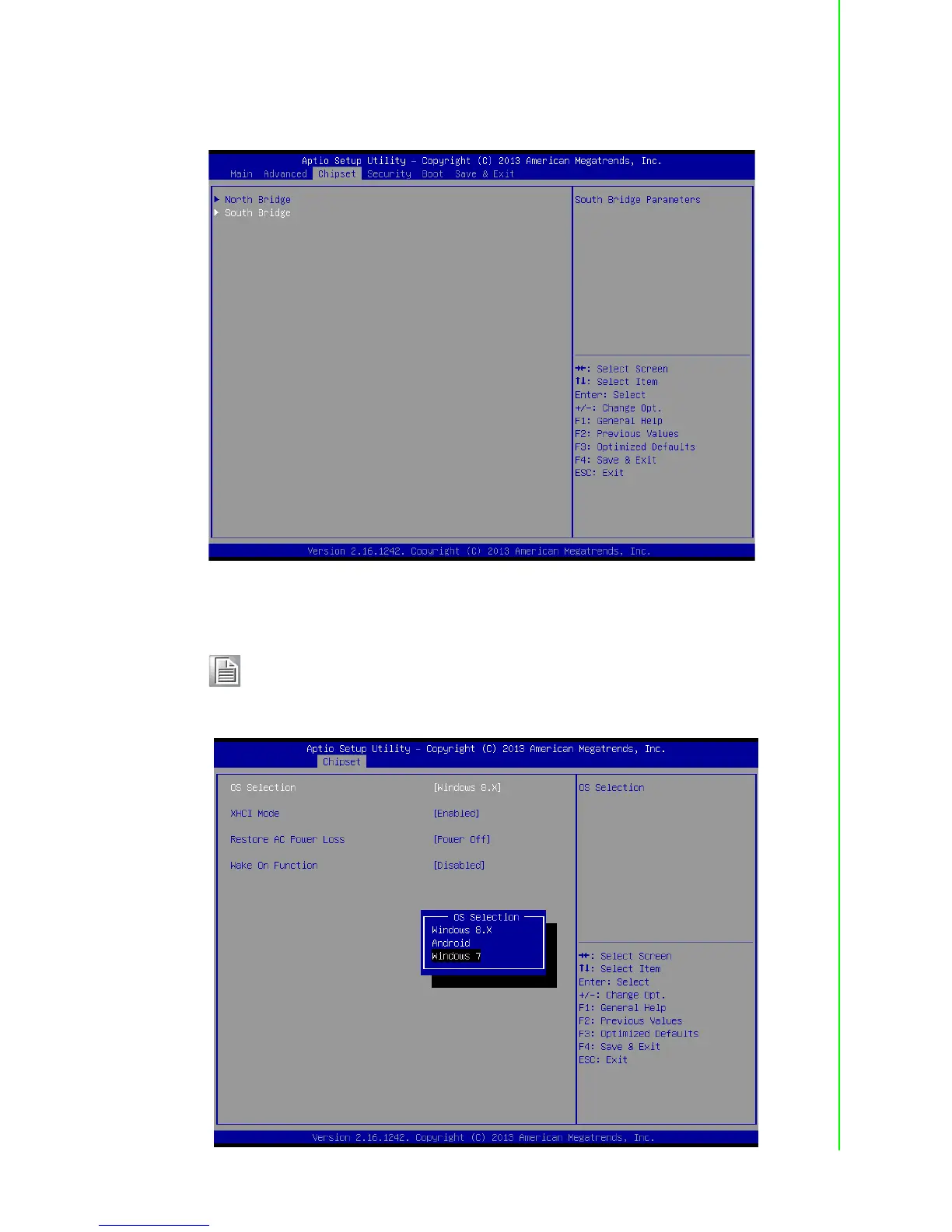

1.
Select "South Bridge" in "Chip
set" tab.
2.
Diff
erent OS can be selected through “OS Selection”.
Note!
“OS Selection
" is preset as Windows 7, which needs to be changed
when Windows 8.X or Android OS is installed
.
68
70
