33 PPC-3150/3170 User Manual
Chapter 2 System Installation & Setup

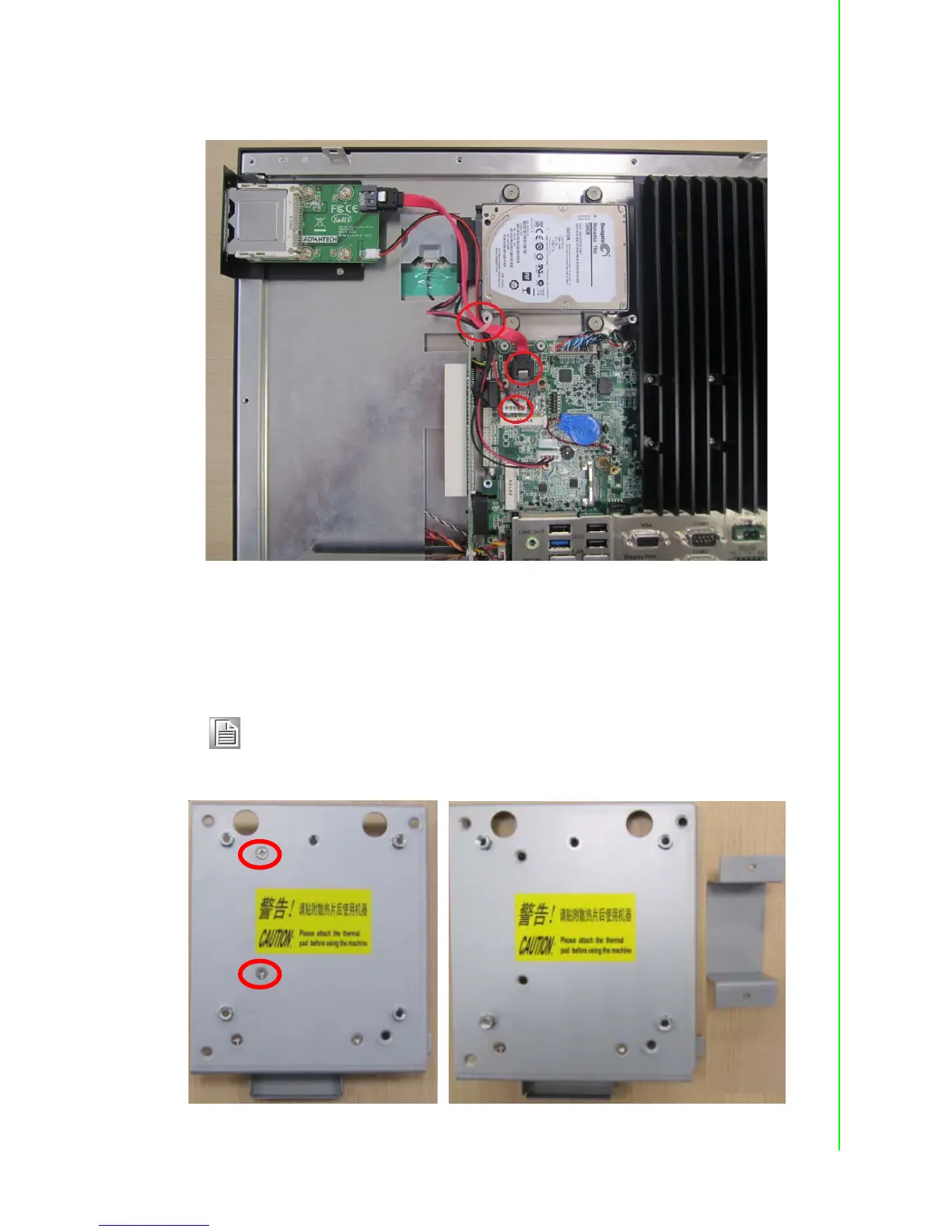

6. Connect red SATA cable and power cable to their respective connector, then
bind them with cable tie. (See Figure 2.41)
Figure 2.41
7. Remove the iron plate on the rear side of VESA ironware. (See Figure 2.42)
Then lock VESA ironware as shown in Figure 2.43. Lastly, replace the rear
cover and fix it to finish the installation.
Figure 2.42
Note! Please properly keep the two screws removed from VESA ironware for
future installation of MSATA.
