37
PPC-3150/31
70 User Manual
Chapter 2
System
Installation
&
Setup
C. Inst
alling USB Module
1.
Follow the step 1
~
2 in Section A.
2.
T
ake USB module out of module box and use the two screws to
fix it. Then con-
nect the other end of the USB cable and
bi
nd it with cable tie. (See Figure 2.48)

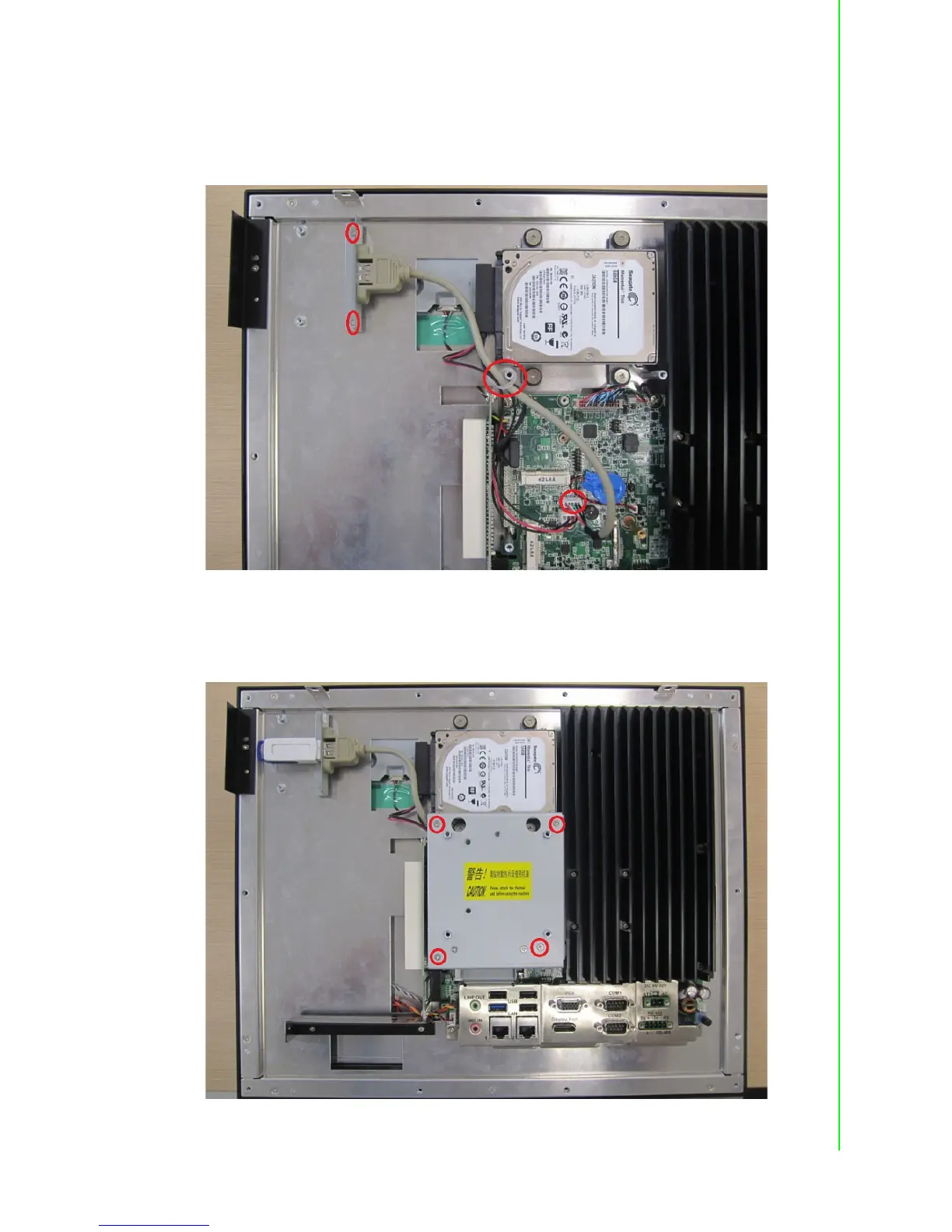

Figure 2.48
3.
Fix VESA ironware as shown in Figure 2.49
. Then replace the rear cover and fix
it to finish the installation.
Figure 2.49
44
46
