IST Series UPS (10kVA-200kVA)
User Manual 2 Overview
15
The dots in above figure are the wiring bundling slots, which are used for fastening the communication
wires.

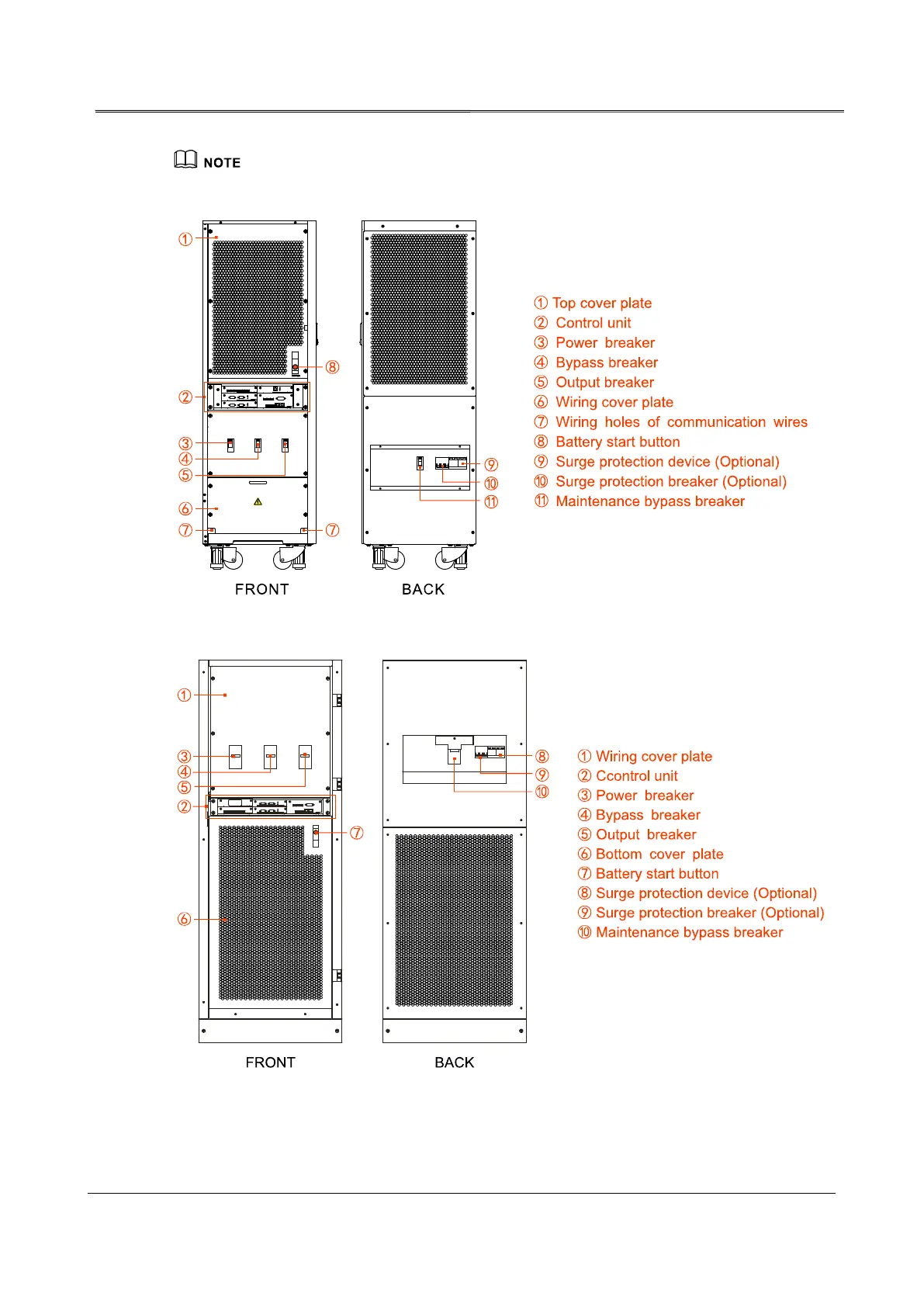

Figure2-8 Structure layout diagram of 50kVA, 80kVA, 100kVA, 140kVA, 140kVA
Figure2-9 Structure layout diagram of 160kVA, 200kVA
