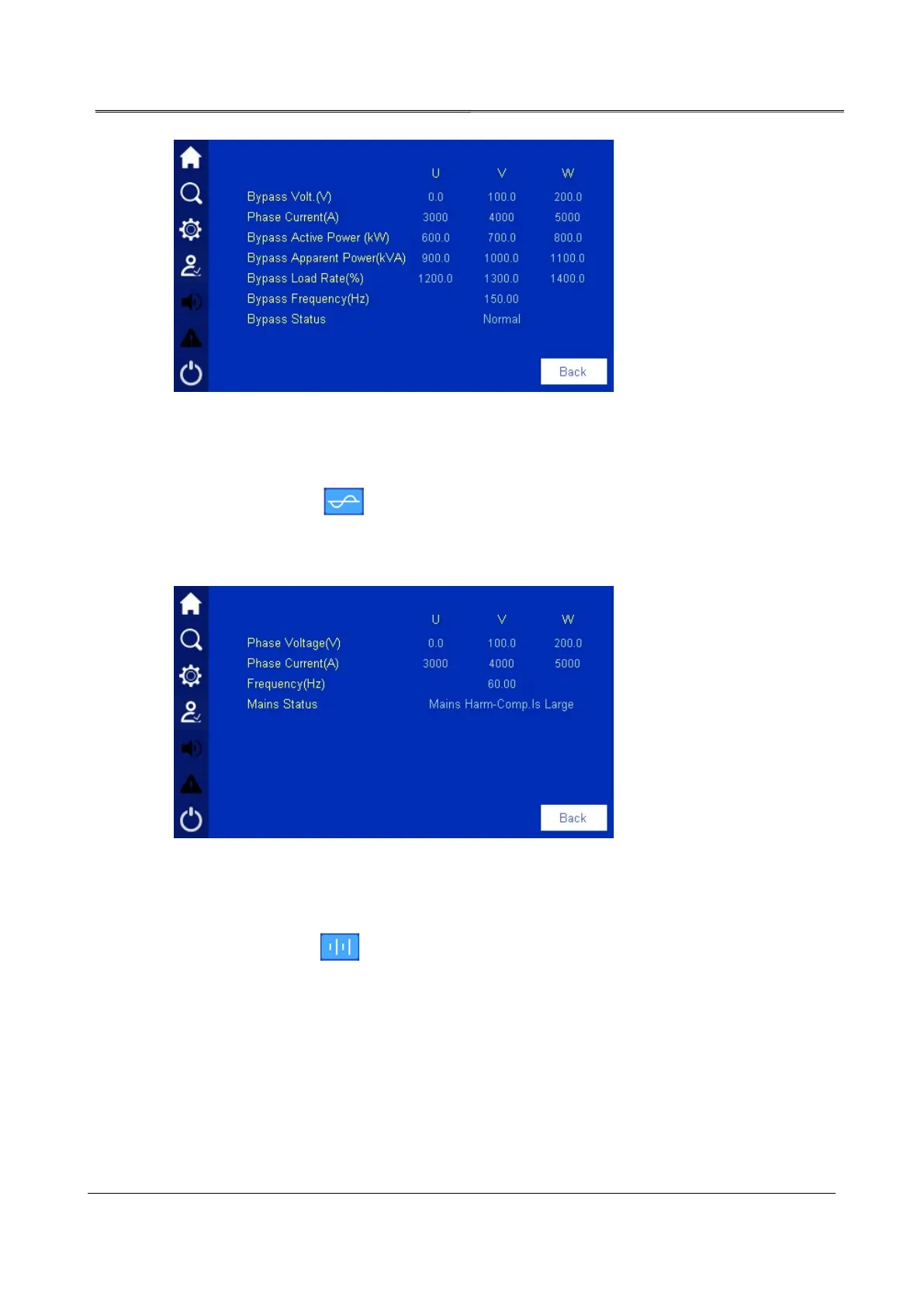

Figure4-16 Bypass information
4.4.2 Mains Information
In main page, click icon, it will enter system mains information page, as shown in
Figure4-17. In the page, it shows the current system mains three-phase voltage, current and
frequency.
Figure4-17 Mains information
4.4.3 Battery Information
In main page, click icon, it will enter battery information page. In the page, it shows
the battery voltage of positive and negative battery group, battery charge/discharge current,
battery remaining capacity, battery remaining time, battery temperature, battery status, as
shown in Figure4-18 and Figure4-20.
