3 Installation
IST Series UPS (10kVA-200kVA)
User Manual
34

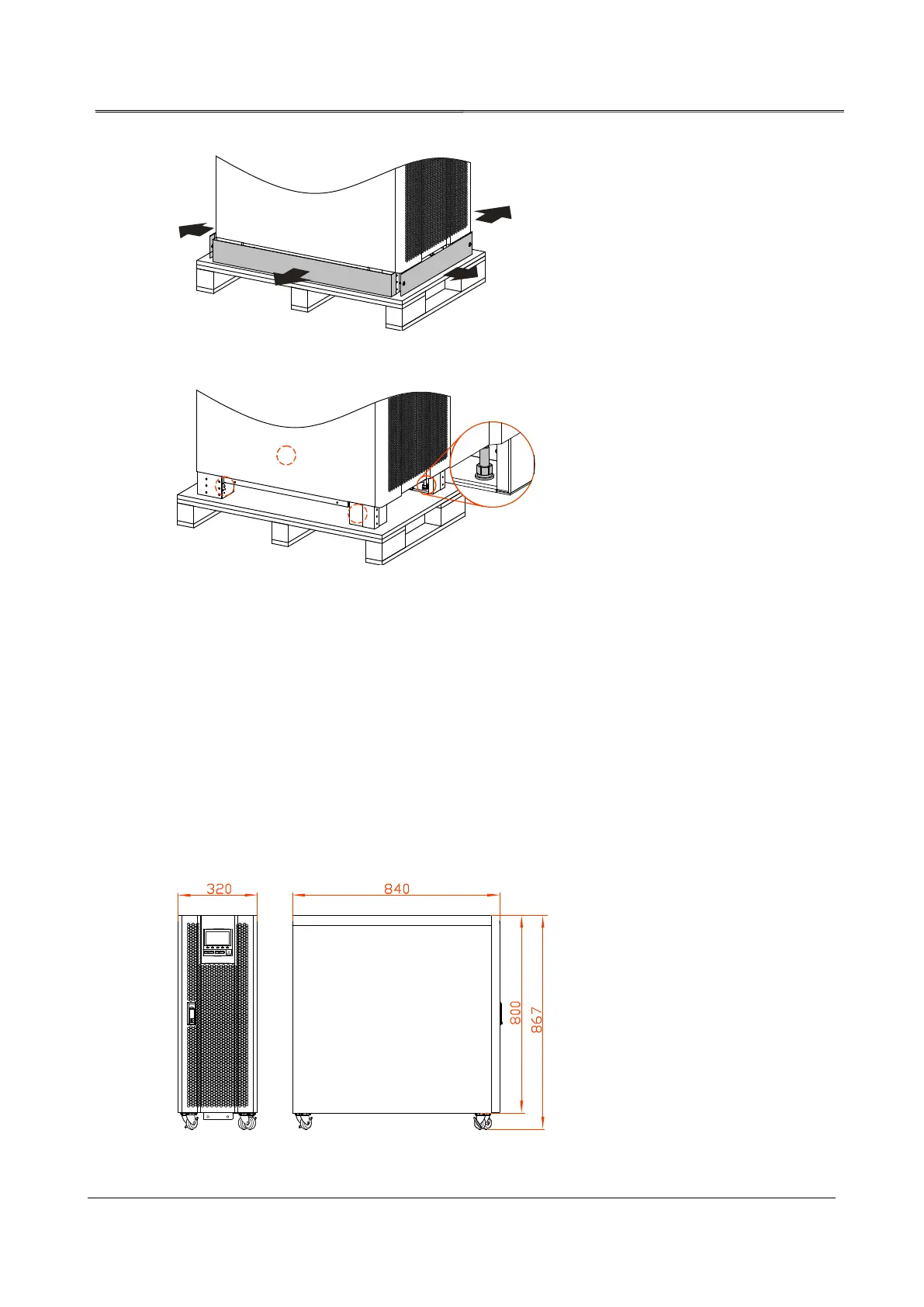

Figure3-8 Remove bottom cover plates
Figure3-9 Bolts position
----End
3.4 Mechanical Installation
3.4.1 UPS Installation
IST7 series UPS (10kVA-140kVA)
Step 1 Determine and plan the installation position according to the UPS size (as shown inFigure3-
11) and installation clearance requirement (see 3.2.3 Installation ).
Figure3-10 Size of 10kVA, 20kVA, 30kVA, 40kVA
