IST Series UPS (10kVA-200kVA)
User Manual 3 Installation
37

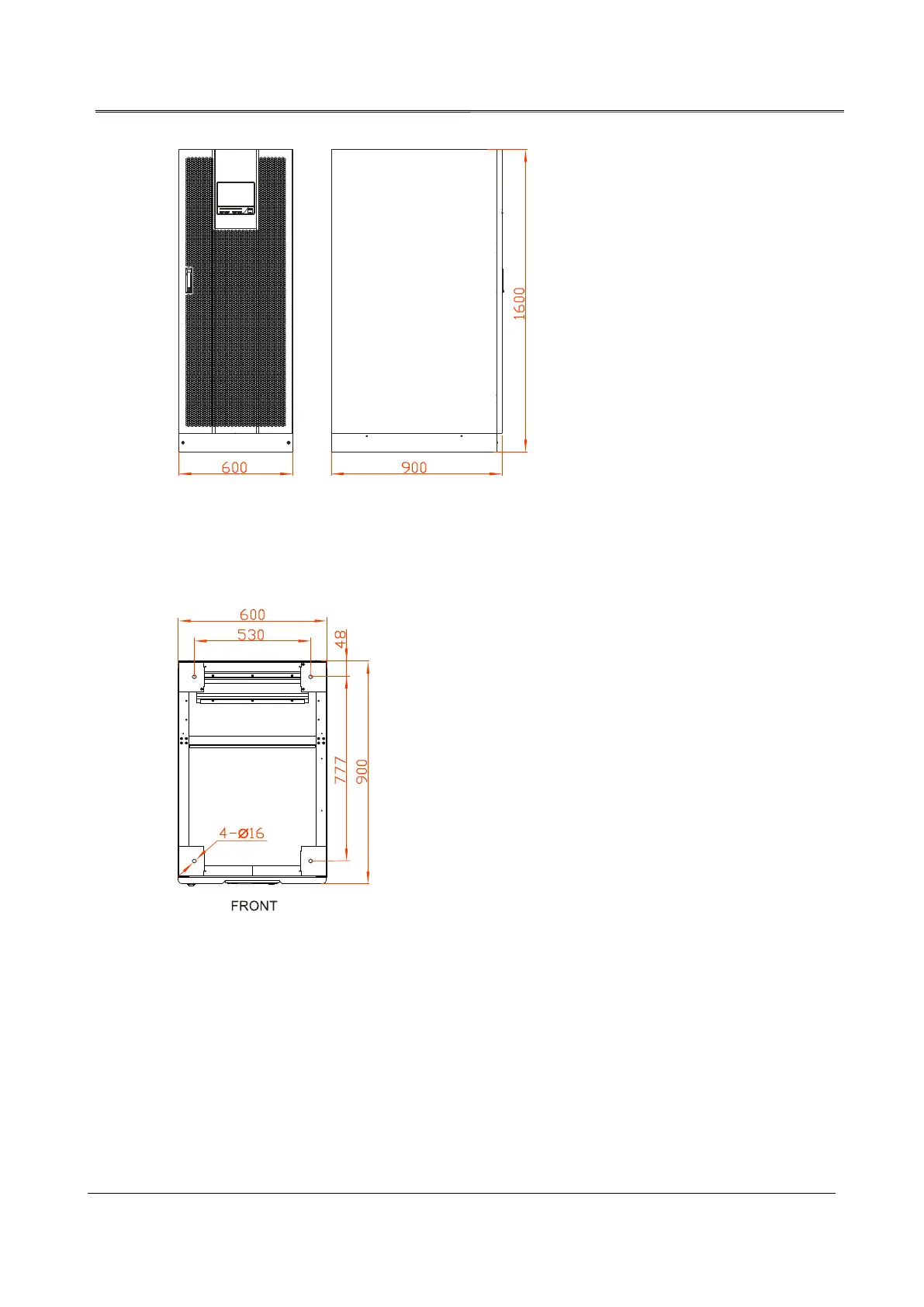

Figure3-13 Size of 160kVA, 200kVA
Step 2 Drill 4 holes ofΦ13 by hammer drill according to the installation size of pedestal (as shown in
Figure3-14).
Figure3-14 Bottom installation size (bottom view of pedestal)
Step 3 Install 4 expansion bolts M12 into the installation holes. The structure and installation of the
expansion bolt is as shown in Figure3-15.
