AEMC DTR 8510 - Cable Identification

Digital Transformer Ratiometer DTR
®
Model 8510 9
8. Display Contrast Adjustment: Allowsadjustmentofthedisplay
contrast.
9. Function Keys:Allowsnavigationofthemenuandfunctionsofthe
instrument.
10. Backlight ( ) Control Button:TurnsthedisplaybacklightONor
OFF.
11. Test Button: Runstheselectedtestwhenpressedandreleased.

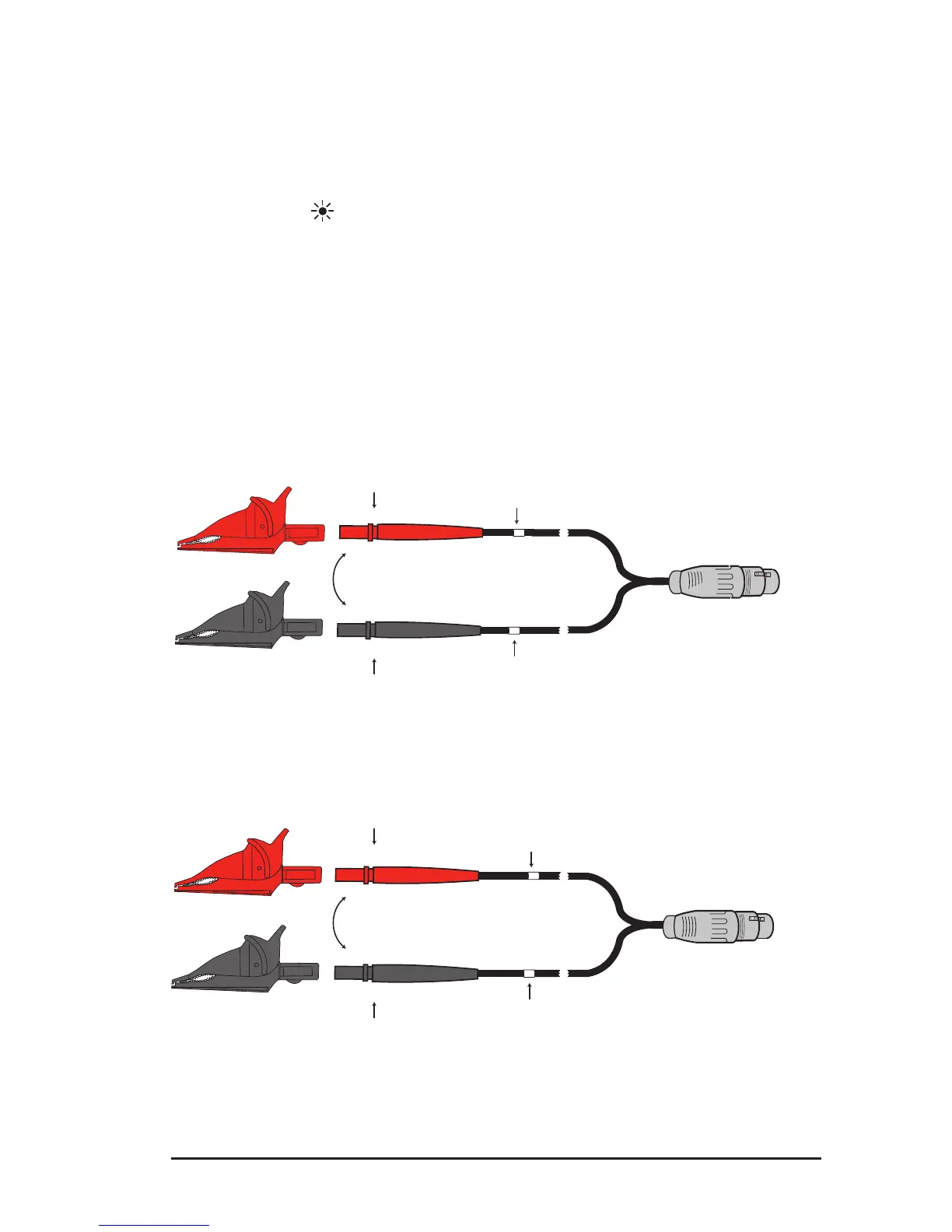

2.3 Cable Identification
H CABLE SET
RED INLINE PLUG
BLACK INLINE PLUG
"H" IDENTIFIER
5 PIN
CONNECTOR
"H" IDENTIFIER
X CABLE SET
RED INLINE PLUG
BLACK INLINE PLUG
"X" IDENTIFIER
3 PIN
CONNECTOR
"X" IDENTIFIER
H
H
X
X
Primary (H) Cable:
Secondary (X) Cable:
Eachcableisclearlymarked.ThePrimary(H)cablehasa5-pinconnector
and the Secondary (X) cable has a 3-pin connector. They cannot
inadvertently be connected incorrectly.
