5.2 Running a Test
5.2.1 VT/PT Test
Inthissection,anexampleofrunningatestusingthefollowingcongura-
tion(see§4.3forhowtoconfiguretheinstrument)isshown:
• SetDate/Time:July4,2010.6:00PM
• SetvaluesinNameplate:
PrimaryVoltage:19920;SecondaryVoltage:7200
• SelectType:VT/PT
• SelectTestMode:CONT/Ratio
• StorageMode:Manual
• Set Filter: Normal
• SetLanguage:English
PRIMARY
SECONDARY
19920 : 7200CT
H
RED
X RED
X BLACK
H
BLACK

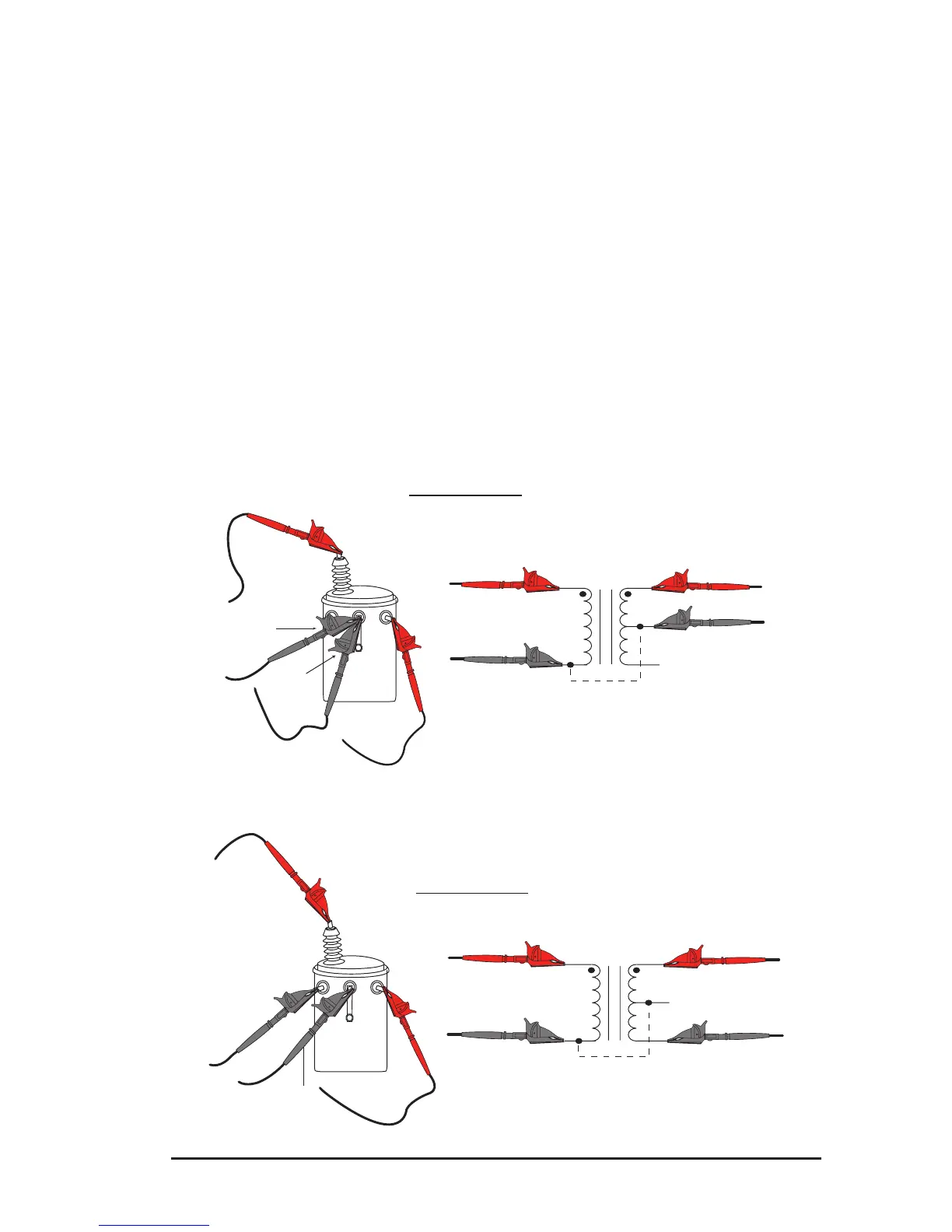

RATIO 2.767 : 1
- Typical Connection
H
BLACK
PRIMARY
SECONDARY
19920 : 7200CT
H
RED
X RED
X
BLACK
H RED
X RED
X BLACK
H BLACK
RATIO 1.383 : 1
- Alternate Connection
H BLACK
H RED
X BLACK
X RED
Figure 5-2
