AEMC DTR 8510 User Manual

20 Digital Transformer Ratiometer DTR
®
Model 8510
• InordertowritethePresentNameplatevalue,youmustpress
ENTERuntilSetup Nameplateisdisplayed.Otherwise,theratio
willnotbeentered.Iftheup/downarrowsarepressedafter
settingtheratio,thenitperformsacanceloperationandthe
changeswillnotbesaved.

REMEMBER: In order to move one level up and return to Configure
Instrument, press the ▼▲ keys simultaneously.

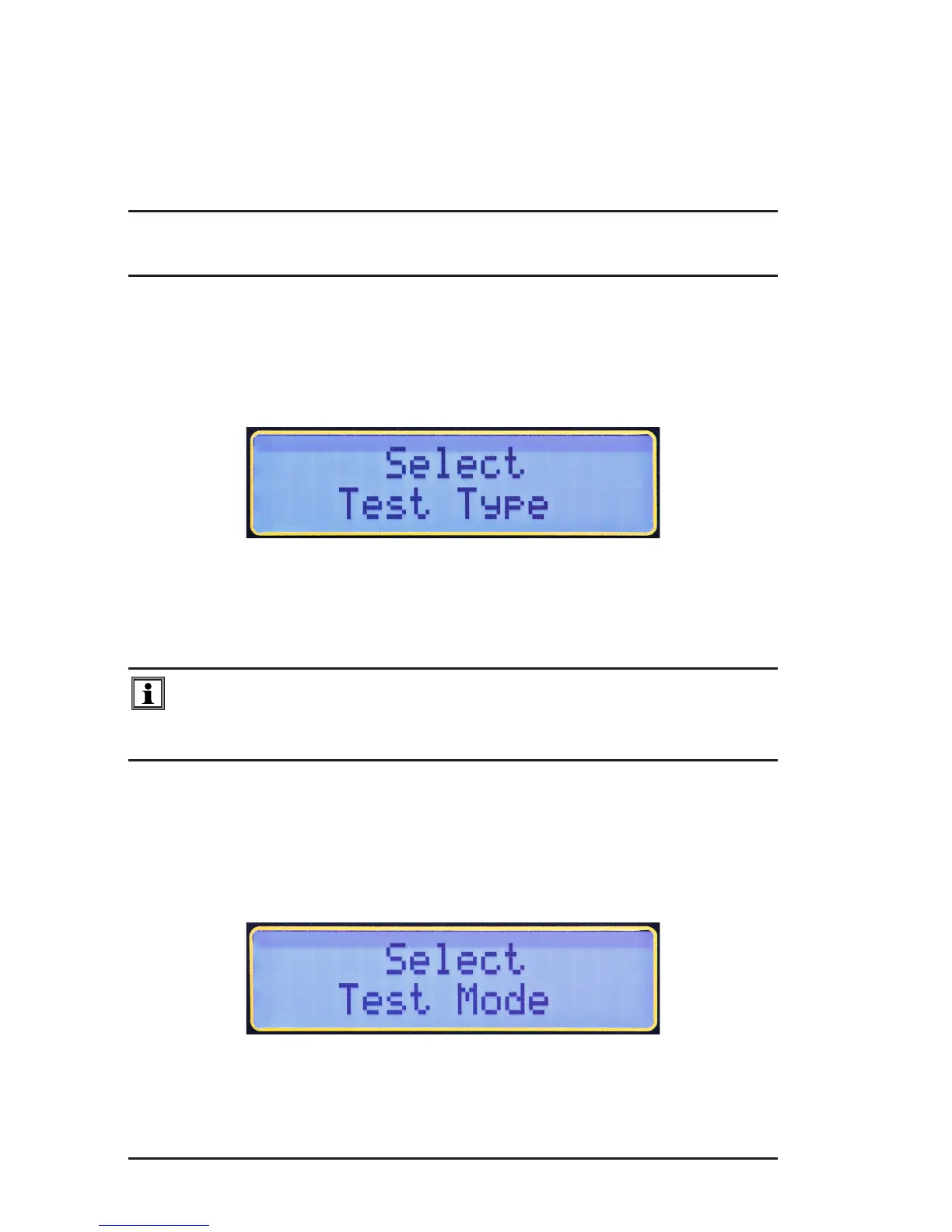

4.3.3 Select Test Type
1. FromthetoplevelofCongure Instrument,pressthe▼or▲keyuntil
Select Test Typeappearsonthedisplay,thenpressENTER.
Figure 4-14
2. Select VT/PT or CTusing▼or▲andpressENTER.Thedisplaywill
returntoSelect Test Type.
NOTE: Once the Test Type is selected, it is retained until changed by the
user. If the instrument is turned OFF and turned ON, the Test Type will be
the same as last selected.
4.3.4 Select Test Mode
1. FromthetoplevelofCongure Instrument,pressthe▼or▲keyuntil
Select Test Modeappearsonthedisplay,thenpressENTER.
Figure 4-15
2. Select Ratio or CONT/Ratiotestusing▼or▲andpressENTER.The
displaywillreturntoSelect Test Mode.
