3. Thedisplaywillnowshowthefollowingscreen:

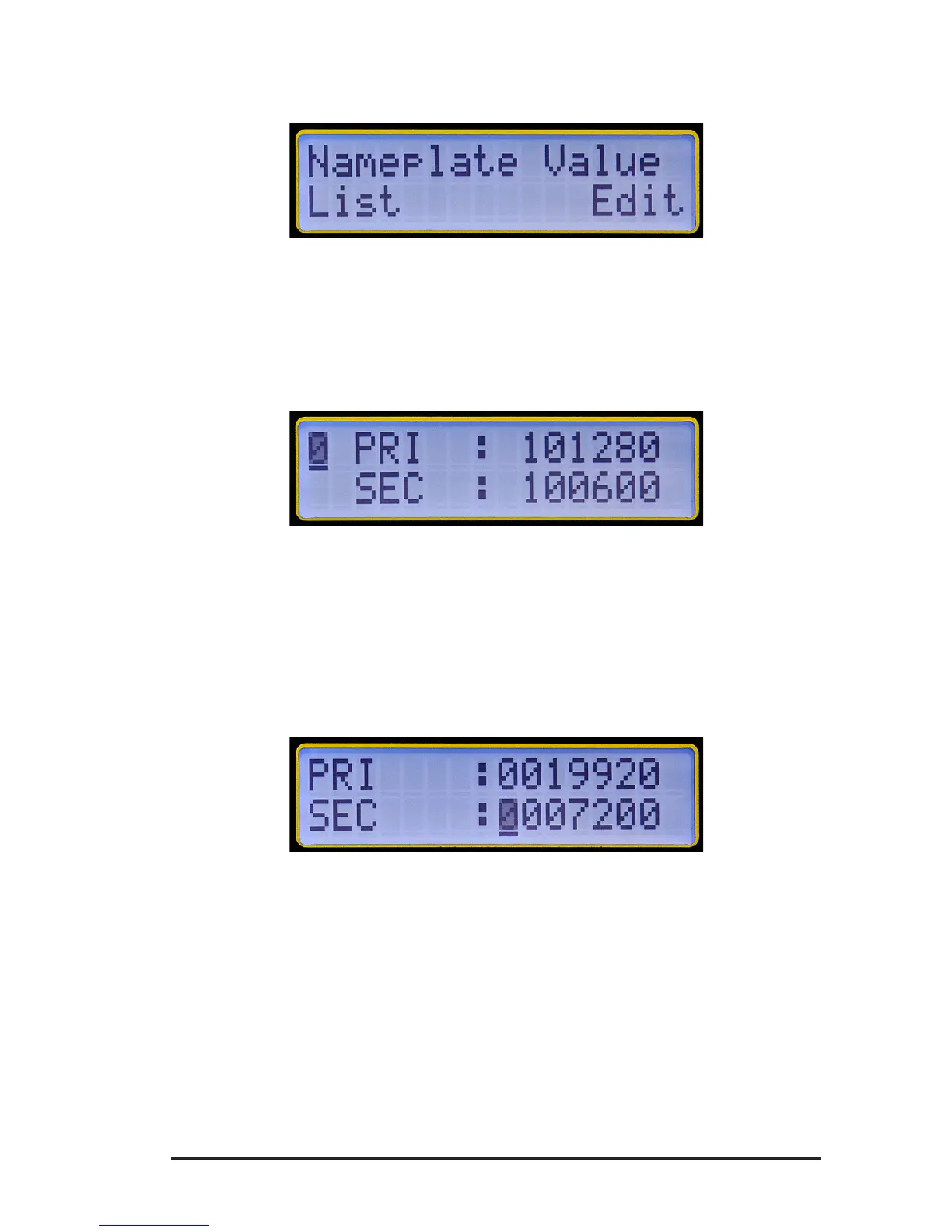

Figure 4-11
4. Select Listbypressingthe▼key.Thelistcanthenbescrolledfrom
0to9Nameplatevaluesbyusingthe▼or▲key.Selectthedesired
Nameplate by pressing ENTER. The display will return to Setup
Nameplate.
Figure 4-12
5. PressENTER,thenYes(▼)onEnable.
6. Select Edit bypressingthe▼key.ThevaluesinthePresentName-
platecanbeediteddigitbydigitbyselectingeachdigitwiththe▼or
▲andthenpressingtheENTERkey.WhenthelastdigitontheSec-
ondaryisselected,thedisplayreturnstoSetup Nameplate.
Figure 4-13
NOTE:
• Selectingonetransformerfromthelistwillreplacethevalues
inthePresentNameplateimmediately.Thevaluescanthenbe
changedintheEditmodeifneeded.
• SelectingEditwillallowtheusertomodifythevaluesinthe
PresentNameplate.
• TheEdit processchangesthevaluesinthePresentNameplate
only.Thevaluespreviouslystoredwouldremainthesame.The
stored List valuescanonlybechangedinDataView
®
.
