AERMEC Multichiller-Evo - Chiller General Status; Chiller Probe;Transducer Values

13

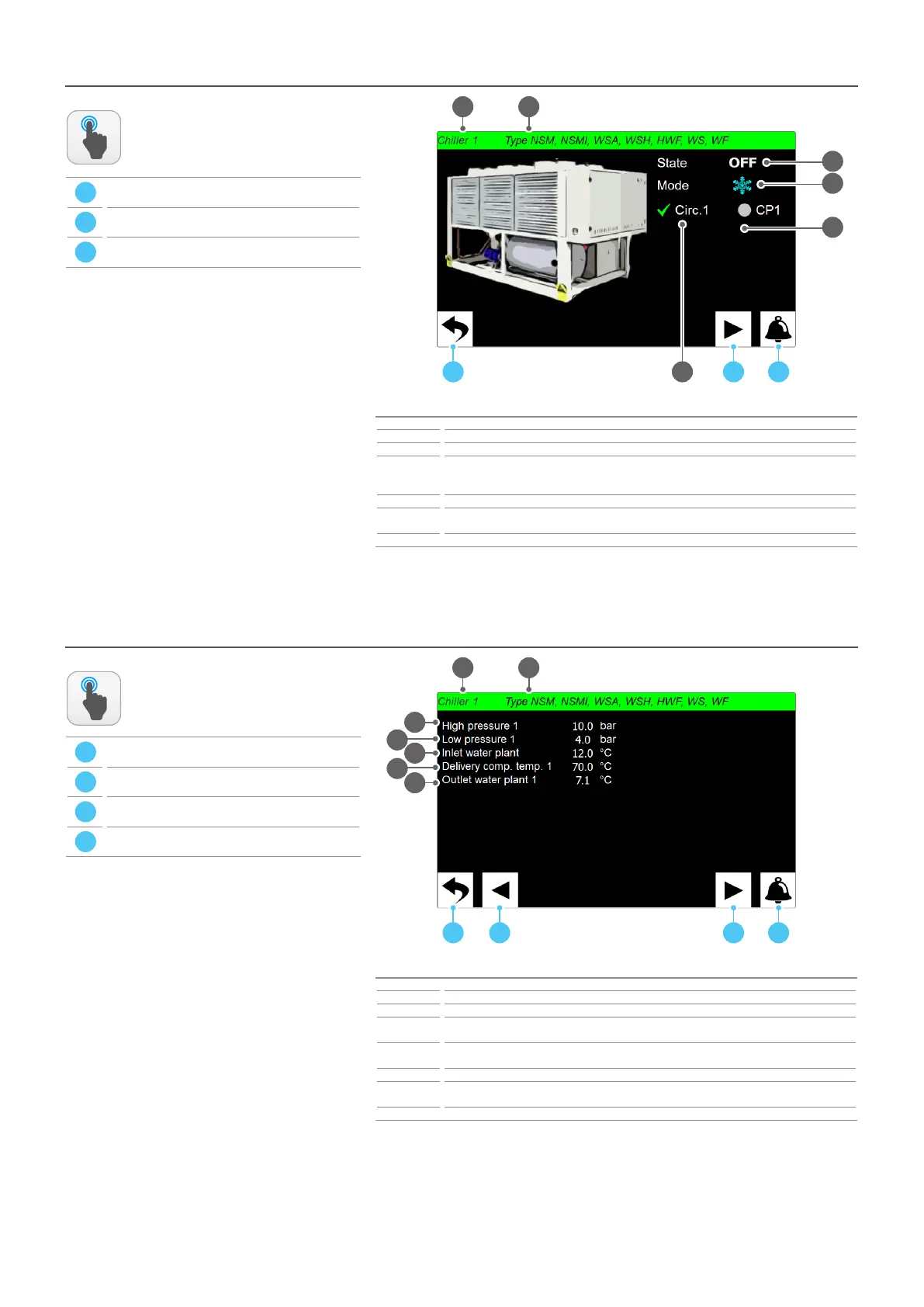

SYSTEM LAYOUT - Chiller main monitor - CHILLER sub-menu - General status
Index Meaning
1 Indicates the current Chiller to which the displayed data refers
2 Indicates the family to which the displayed Chiller belongs
3
Indicates the current state of the selected chiller; this can be:
On = chiller currently operating;
O = chiller not currently operating;
4 Indicates the current functioning mode set on the unit: (cooling or heating);
5
Indicates the state of compressors related to the reference circuit (if the dot is grey the compressor is
o, if it is green the compressor is on)
6 Indicates the relative circuit status: (4) normal circuit; (8) circuit in alarm
ACTIONS
AVAILABLE:
SYSTEM LAYOUT - Chiller main monitor - CHILLER sub-menu - Values read on the chiller probes/transducers
Index Meaning
1 Indicates the current Chiller to which the displayed data refers
2 Indicates the family to which the displayed Chiller belongs
3
Indicates the value read by the high pressure transducer on the selected chiller (this data may be
repeated if the unit has several circuits)
4
Indicates the value read by the low pressure transducer on the selected chiller (this data may be
repeated if the unit has several circuits)
5 Indicates the value read by the temperature probe for the selected chiller inlet water
6
Indicates the value read by the compressor 1 pressing line probe on the selected chiller (this data
may be repeated if the unit has several compressors)
7 Indicates the value read by the temperature probe for the selected chiller outlet water
ACTIONS
AVAILABLE:
A

B

C

A

B

C

D

1
A B C
2
5
4
3
6
1
A C D
2
4
3
B
6
5
7
