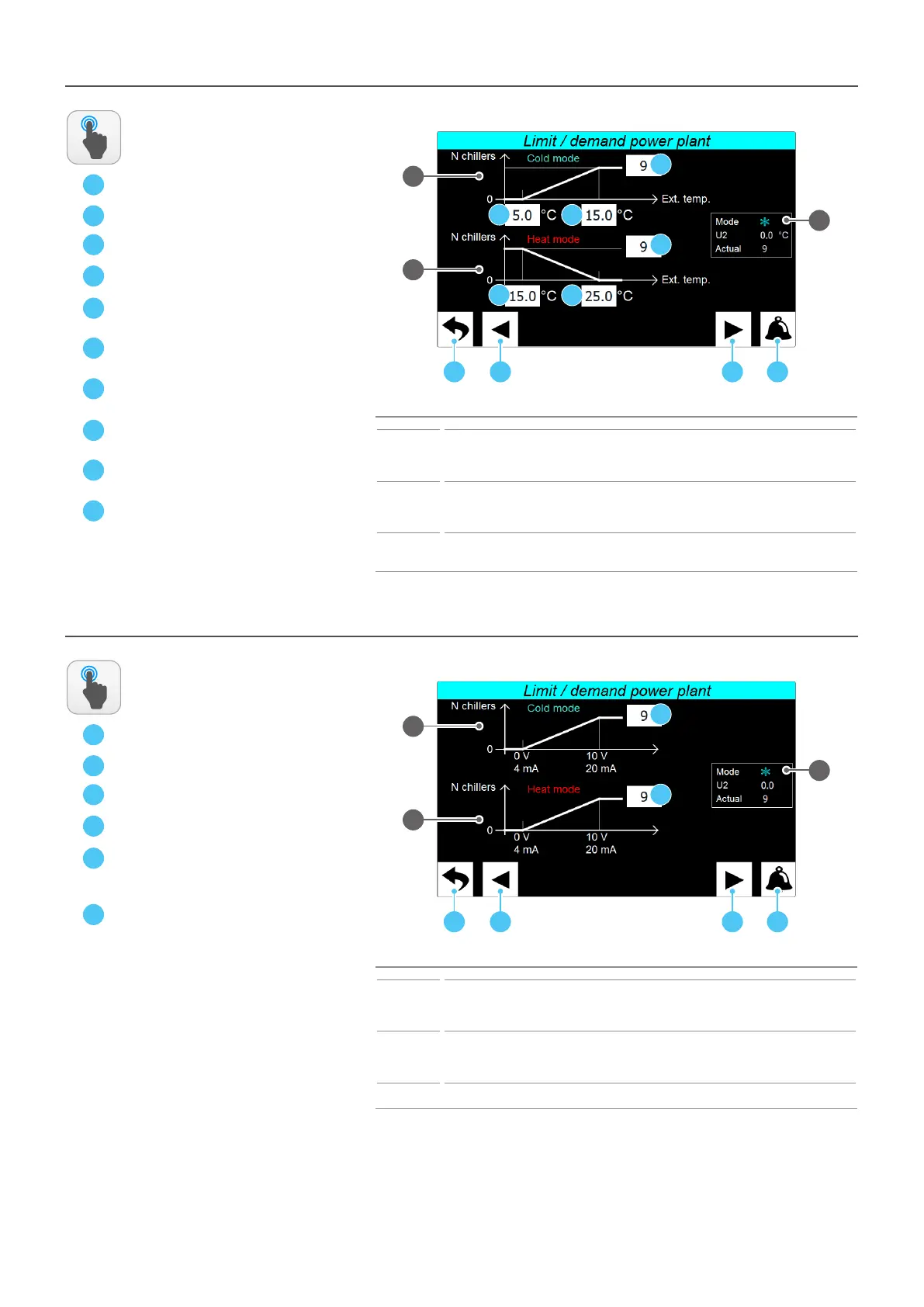

INSTALLER - Remote control - Power demand/limitaon sengs (U2 set as NTC probe)
A
B
C
Index Meaning
1
Indicates the chart representing the power demand or limitation (if selected as function on the U2
input, with temperature variation) according to the temperature read by the NTC probe connected
to the U2 input; the chart shows the temperature at which no chiller is active, and the one at which
to activate the maximum number of chillers specied for the cooling mode
2
Indicates the chart representing the power demand or limitation (if selected as function on the U2
input, with temperature variation) according to the temperature read by the NTC probe connected
to the U2 input; the chart shows the temperature at which no chiller is active, and the one at which
to activate the maximum number of chillers specied for the heating mode
3
It summarises the current system state, indicating the active functioning mode, the temperature
read by the NTC probe connected to the U2 input and the maximum number of chillers that can be
activated at that time
ACTIONS
AVAILABLE:
1
A B D
2
D
E
F
C
3
G
G
E
F
L
H
I
H
I
L
INSTALLER - Remote control - Power demand/limitaon sengs (U2 set as voltage or current value)
A
B
C
Index Meaning
1
Indicates the chart representing the power demand or limitation (if selected as function on the U2
input, with voltage or current signal) according to the U2 input signal value; the chart shows the
values at which no chiller is active, and those at which to activate the maximum number of chillers
specied for the cooling mode
2
Indicates the chart representing the power demand or limitation (if selected as function on the U2
input, with voltage or current signal) according to the U2 input signal value; the chart shows the
values at which no chiller is active, and those at which to activate the maximum number of chillers
specied for the heating mode
3
It summarises the current system state, indicating the active functioning mode, the U2 input signal
value and the maximum number of chillers that can be activated at that time
ACTIONS
AVAILABLE:
1
A B D
2
D
E
F
C
3
E
F
