AERMEC Multichiller-Evo - Installer - pCO5+ Analogue Inputs

23

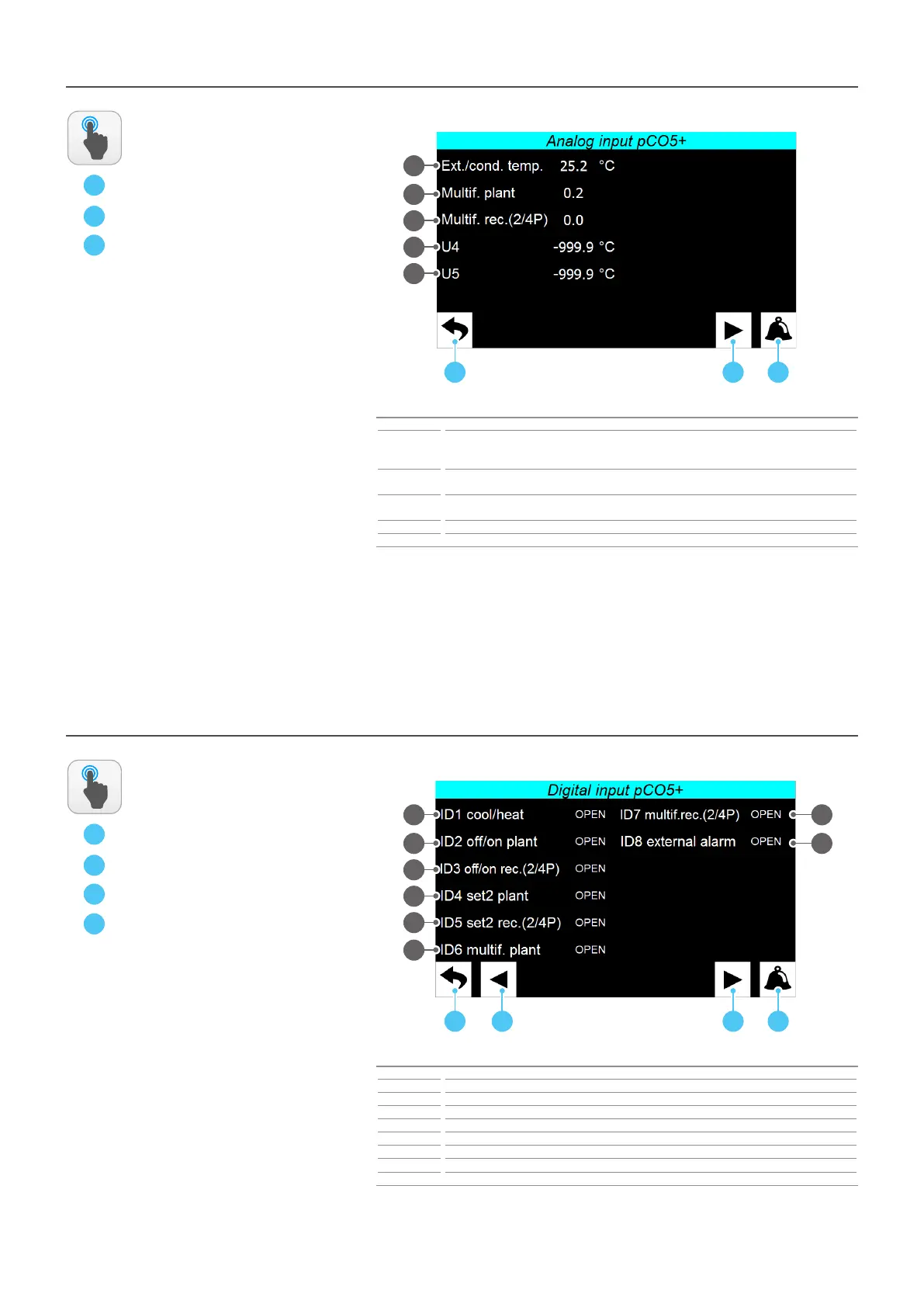

INSTALLER - Inputs/Outputs - Status of pCO5+ analogue inputs (page 1)
A
B
C

Index Meaning
1
Current temperature value detected by the NTC probe connected to analogue input U1 on the
Multichiller-Evo board. This probe must be installed outdoors in case of Air/water chiller or on the
source return in case of Water/Water chiller
2
Indicates the value (the size of which must be set in the “remote control” menu window) read on the
system side multifunction input
3
Indicates the value (the size of which must be set in the “remote control” menu window) read on the
recovery side multifunction input
4 Not used
5 Not used
ACTIONS
AVAILABLE:
1
A B C
2
3
4
5


INSTALLER - Inputs/Outputs - Status of pCO5+ analogue inputs (page 2)
A
B
C

Index Meaning
1 Indicates the actual state of digital input ID1 (functioning mode)
2 Indicates the actual state of digital input ID2 (connected to the system On/O)
3 Indicates the actual state of digital input ID3 (connected to the recovery side On/O)
4 Indicates the actual state of digital input ID4 (use secondary set on system)
5 Indicates the actual state of digital input ID5 (use secondary set on recovery side)
6 Indicates the actual state of digital input ID6 (system multifunction input)
7 Indicates the actual state of digital input ID7 (recovery side multifunction input)
8 Indicates the actual state of digital input ID8 (external alarm)
ACTIONS
AVAILABLE:
1
A C D
2
3
4
5


6
7
8
B
D

