STRUCTURE OF THE MENUS
SELECTING THE MENUS
Icon Menu Description Notes
A ON/OFF
It allows you to turn the chillers on or o directly; it also contains the set points and dieren-
tial settings and the control of the time periods enabled on the system
---
B CLOCK
It allows you to adjust the system clock (on the pCO5+ main board and on the touch-screen
control and command board)
---
C INSTALLER
It allows you to view the state of inputs and outputs of the Multichiller-Evo control board,
and it also allows you to: set the connection via BMS, set the thresholds and timings in the
ignitions, view the software information, modify the access password and data to be used
for the graphics menu;
ATTENTION: for software versions prior to version "1.2.0", the password is "0442".
Password (0000)
D MANUFACTURER Protected menu not available to the user Protected menu
E SYSTEM LAYOUT
It allows you to view the information on each connected chiller (state, active loads, any
alarms and their reset) and verify the values read by the temperature probes connected to
the Multichiller-Evo
The rst page
is used as
HOME
F CHARTS
It allows you to view real-time charts of the values read by the temperature probes con-
nected to the Multichiller-Evo
---
G LANGUAGE It allows you to select the system interface language ---
H ALARMS It allows you to view details on the active alarms and access the alarm log
If an alarm is active,
the icon’s background
ashes red
I Debug
It allows you to view the dierent pages containing a summary of the values read by the
chiller probes; this tool is used by the technical after-sales service/assistance to identify any
abnormal operation
This menu is not
normally enabled, you
must set the relevant
parameter in the instal-
ler menu to activate it
(page 35)

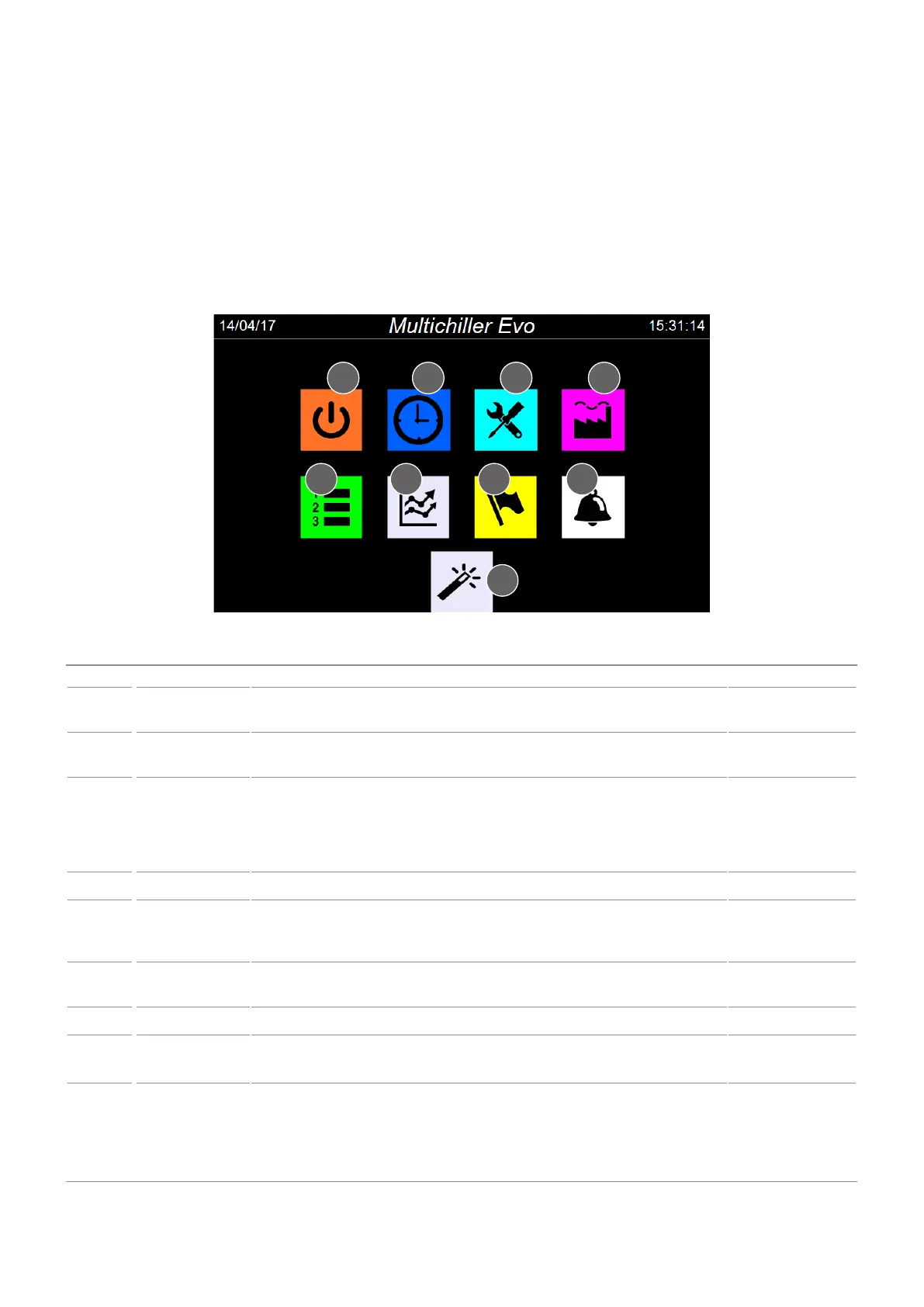

A B C D
E F G H
I
