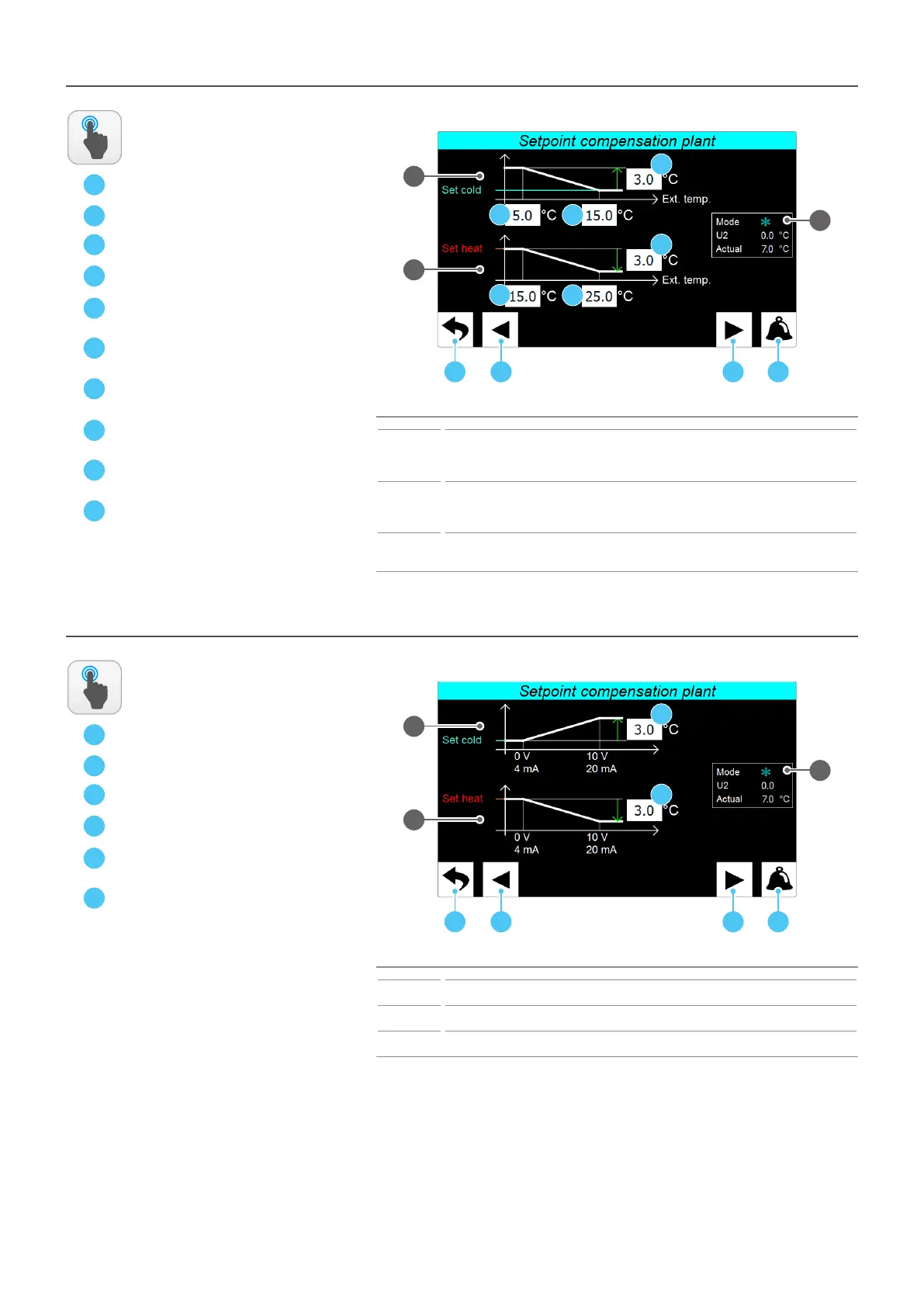

INSTALLER - Remote control - Climac curve sengs (U2 set as NTC for outdoor air probe)
A
B
C
Index Meaning
1
Indicates the chart that summarises the functioning of the climatic curve applied to the cooling set;
setting at which outdoor air temperature (read by the NTC probe connected at the multi-function
input duly set, as explained in the previous page) the cooling work set remains unchanged and at
which it is increased and by how much
2
Indicates the chart that summarises the functioning of the climatic curve applied to the heating set;
setting at which outdoor air temperature (read by the NTC probe connected at the multi-function
input duly set, as explained in the previous page) the heating work set remains unchanged and at
which it is decreased and by how much
3
It summarises the current system state, indicating the active functioning mode, the temperature
read by the NTC probe connected to the U2 input and the set resulting from the correction accor-
ding to the described curve
ACTIONS
AVAILABLE:
1
A B D
2
D
E
F
C
3
G
G
E
F
L
H
I
H
I
L
INSTALLER - Remote control - Climac curve sengs (U2 set as voltage or current value)
A
B
C
Index Meaning
1
Indicates the chart that summarises the functioning of the climatic curve applied to the cooling set;
setting the increase to be applied to the cooling set at maximum of the input signal
2
Indicates the chart that summarises the functioning of the climatic curve applied to the heating set;
setting the decrease to be applied to the heating set at maximum of the input signal
3
It summarises the current system state, indicating the active functioning mode, U2 input value and
the set resulting from the correction according to the described curve
ACTIONS
AVAILABLE:
1
A B D
2
D
E
F
C
3
E
F
