INSTALLER - Remote control - Mul-funcon input management
A
B
C

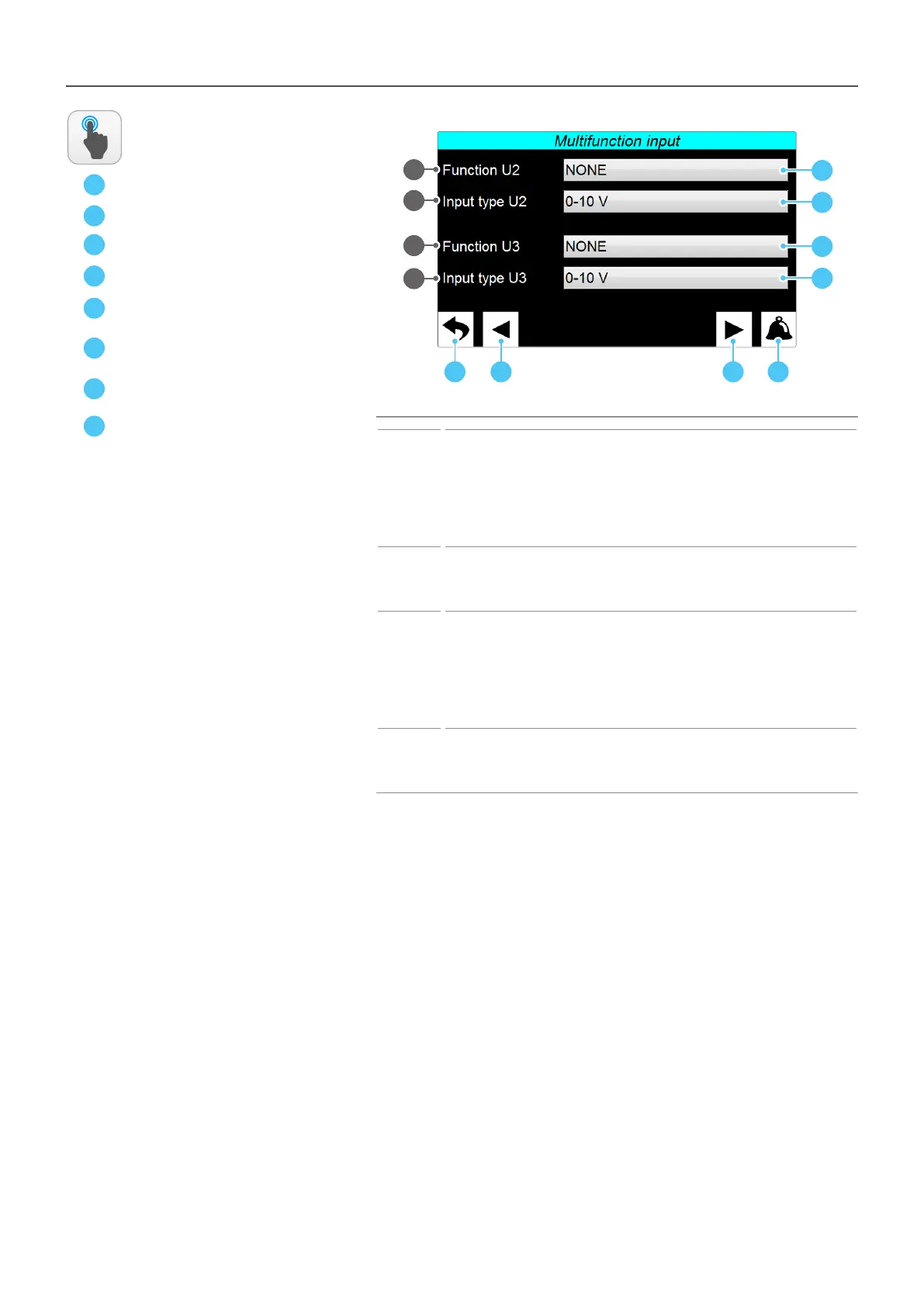

Index Meaning
1
Set the function associated with the U2 multi-function input (for the multi-function input to be
enabled, the ID6 input needs to be open); this function can be:
NONE = input disabled;
SET COMPENSATION = input used to manage the outdoor air probe (supplied) used for the set
correction function with climatic curve;
POWER LIMIT = input used to calculate the maximum number of chillers to be used depending on
the type of signal specied at input;
POWER DEMAND = input used to calculate the maximum number of chillers to be used depending
on the type of signal specied at input;
2
Species the type of signal at multi-function input; this signal can be:
0-10V = a voltage signal from 0 to 10V;
4-20mA = a current signal from 4 to 20mA;
NTC = a signal from the NTC temperature probe (option to be selected if the supplied probe has
been connected for compensation with the climatic curve);
3
Set the function associated with the U3 multi-function input (for the multi-function input to be
enabled, the ID7 input needs to be open); this function can be:
NONE = input disabled;
SET COMPENSATION = input used to manage the outdoor air probe (supplied) used for the set
correction function with climatic curve;
POWER LIMIT = input used to calculate the maximum number of chillers to be used depending on
the type of signal specied at input;
POWER DEMAND = input used to calculate the maximum number of chillers to be used depending
on the type of signal specied at input;
4
Species the type of signal at multi-function input; this signal can be:
0-10V = a voltage signal from 0 to 10V;
4-20mA = a current signal from 4 to 20mA;
NTC = a signal from the NTC temperature probe (option to be selected if the supplied probe has
been connected for compensation with the climatic curve);
ACTIONS
AVAILABLE:
1
A B D
2
D
E
F
C
E
F
G
3
G
4
H
H
