11.3 MENU STRUCTURE

All the functions for managing the unit as well as the information about its opera-

tion are displayed on the unit control panel; all the functions and information are

organised into windows, which are in turn grouped in to menus.

When the unit is operating normally, a main menu is displayed, which is used to

select other operating menus.

The menus are displayed via the rotation of the icons that represent them; once

the desired icon is selected, the select menu opens, and it is possible to display or

change the corresponding parameters.

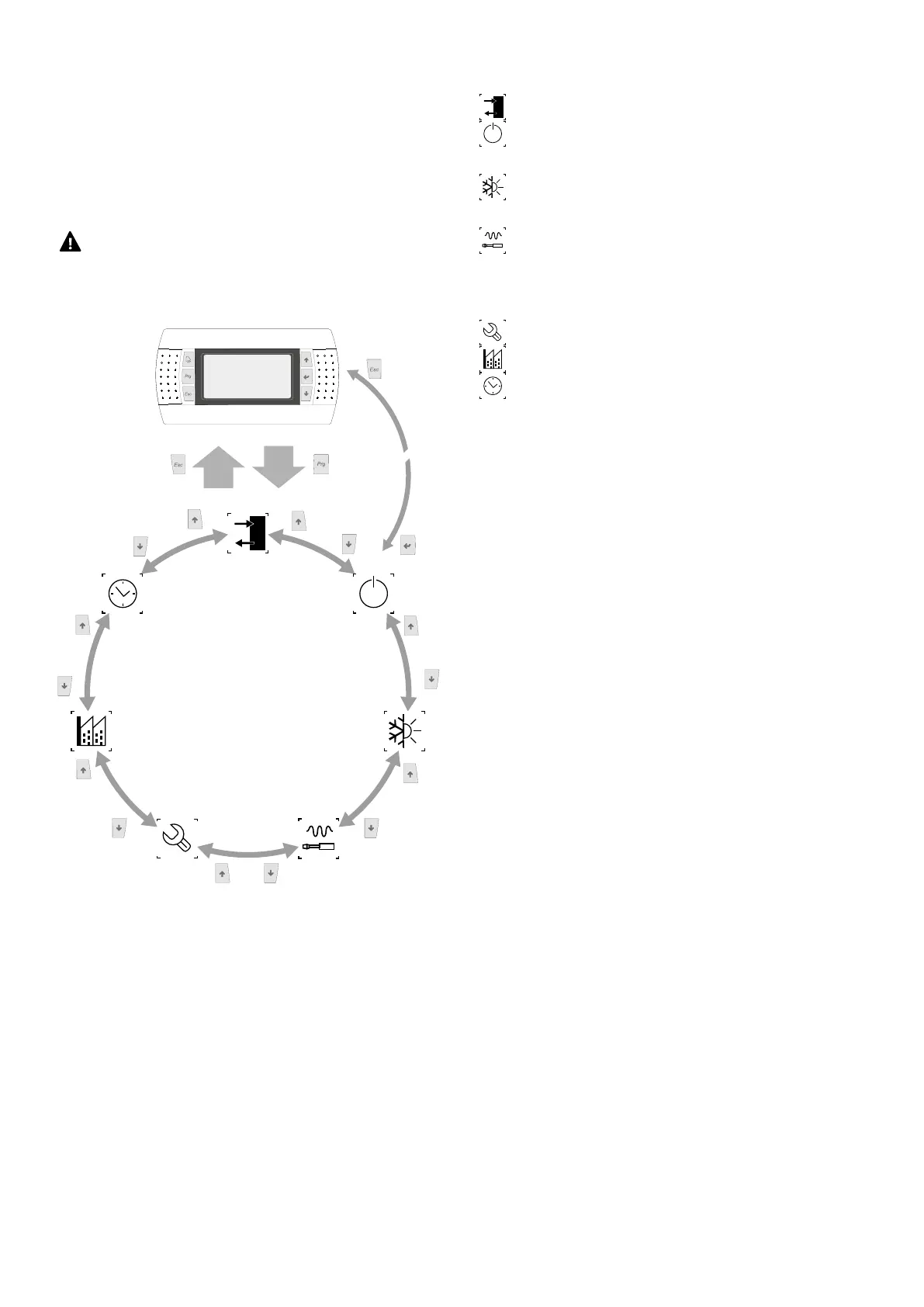

The image shows the relationships between the various menus and the keys used

for navigation.

NB: The following pages show all the masks contained in the menus availa-

ble to the user; Tampering with the parameters in the installer menu could

cause the unit to malfunction, therefore it is recommended to have these

parameters changed only by personnel assigned to unit installation and

conguration.

Menu icons:

IN/OUT: This menu contains advanced information about operating the unit;

ON/OFF: This menu is used to activate or deactivate the unit; it also provides

state information;

CHILLER: This menu is used to set the operating mode, the setpoints for water

production and the time bands to be applied to the system;

INSTALLER: This menu contains settings useful for the installer (Digital input

enabling, BMS conguration, adjustments, pumps, etc ...);

WARNING: this menu is password protected, the value to be set for access is:

0000

ASSISTANCE: This menu is not accessible except by authorized sta;

MANUFACTURER: This menu is not accessible except by authorized sta;

CLOCK: This menu contains the time settings for system management (date

and time, calendar);
