Hardware Reference Guide 81
MOUNTING AND INSTALLATION
MOUNTING AND INSTALLATION
Install SR series switches on a clean, level desktop or surface, or in a standard equipment rack using the rack
mount kit that ships with the switch. Figure 4 shows how to mount the switch in a rack.

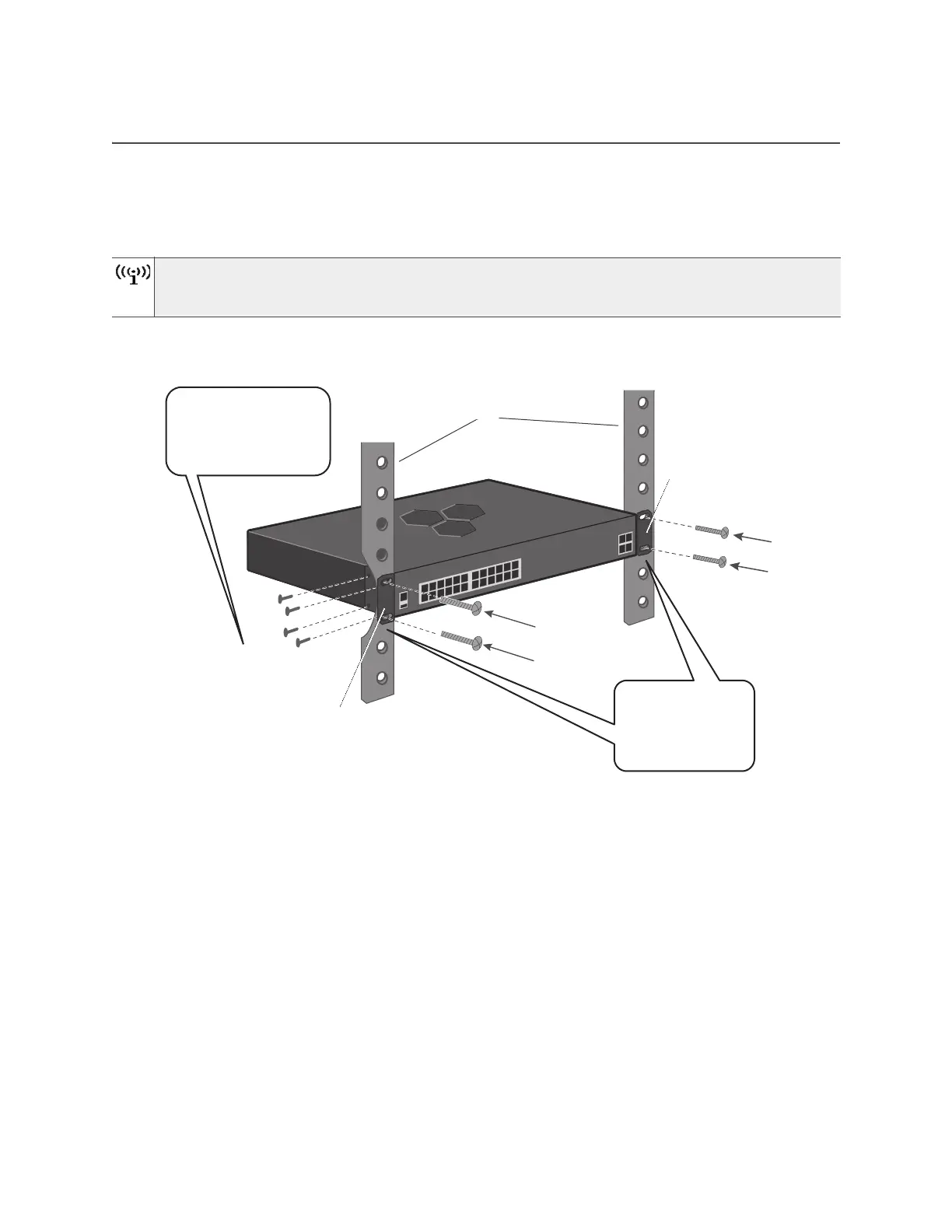

Figure 4 SR2024 switch rack mount
Adequate ventilation is critical for switch operation. Install your devices in a properly ventilated
equipment rack, or for tabletop installations, leave some clear space at the sides of the switch so
the fans can properly cool the chassis.
Mount bracket
Bracket screws
(four per side)
Rack screws
Mount bracket
Attach the mount
brackets to the rack
using two standard
rack mount screws
per bracket.
Install the rack mount
brackets to both sides
of the front panel
using four bracket
screws per side.
Rack rails
