TECHNICAL DESCRIPTION, OPERATING, MAINTENANCE AND REPAIR MANUAL
1.6.9.4 Directional control system
The rudder pedals are attached on the cockpit floor at the model with a fixed undercarriage. The
pedal motions are transferred from the lateral torsional tubes (QR) to the rudder by means of the
control cables. The control cables are guided through a polyurethane casing, which is attached into
the fuselage structure. In case of the retractable undercarriage, due to a present of a nose wheel
leg, the control system is attached on the lateral reinforcement. The rudder control is connected
with nose wheel undercarriage control by means of two short rods (fixed undercarriage) or by
means of control cables „Cablecraft“ type at a model with retractable undercarriage.
For adjustment is necessary pull-up a pin (RB) pushed by spring, slew a pedal (P) into the required
position, than push the pin (RB) again into the appropriate hole. (Fig 15a). From Dynamic serial
number 145/2009 onward the WT-9 Dynamics are fitted with a rudder pedals adjustment control
situated under instrument panel on the both sides of the cockpit ((Fig 15b).

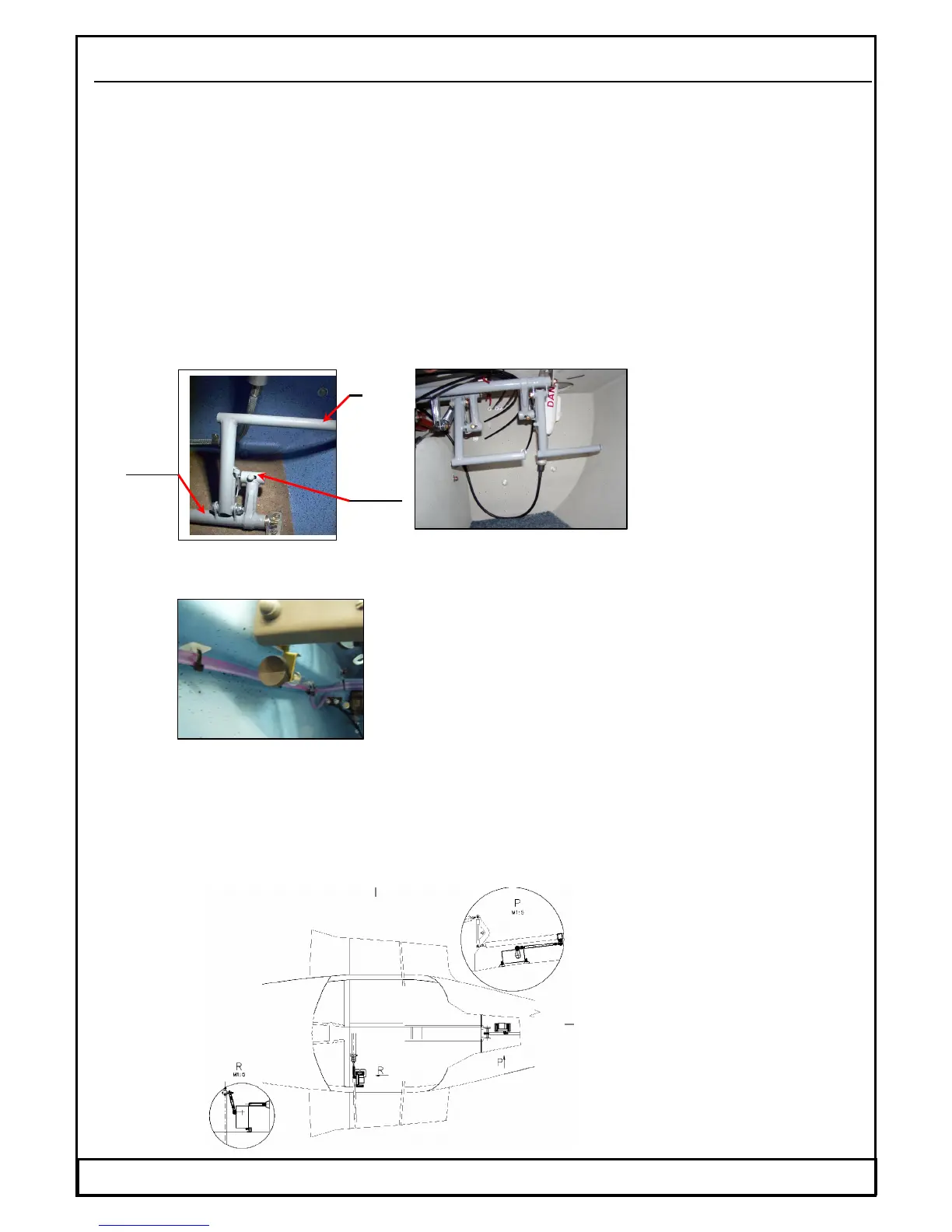

Fig.15a Adjustment of the rudder pedals position up to DY-145/2009 serial number
Fig.15b Adjustment of the rudder pedals position from DY-145/2009 serial number onward
1.6.9.5 Auto Pilot System
In the control system is optionally mounted Autopilot system, There can by mounted two
way autopilot. The autopilot servos are mounted in following places, the lateral control
servo is mounted under pilot seat and the longitudinal control servo is mounted behind the
baggge bulkhead. For the detailed
description of the autopilot
adjustment see also the Autopilot
installation and operation manuals.
