When the RES command is active, the status reads:
GENERATOR STATUS
STANDBY
The TEST – SCR – EJP functions are excluded.

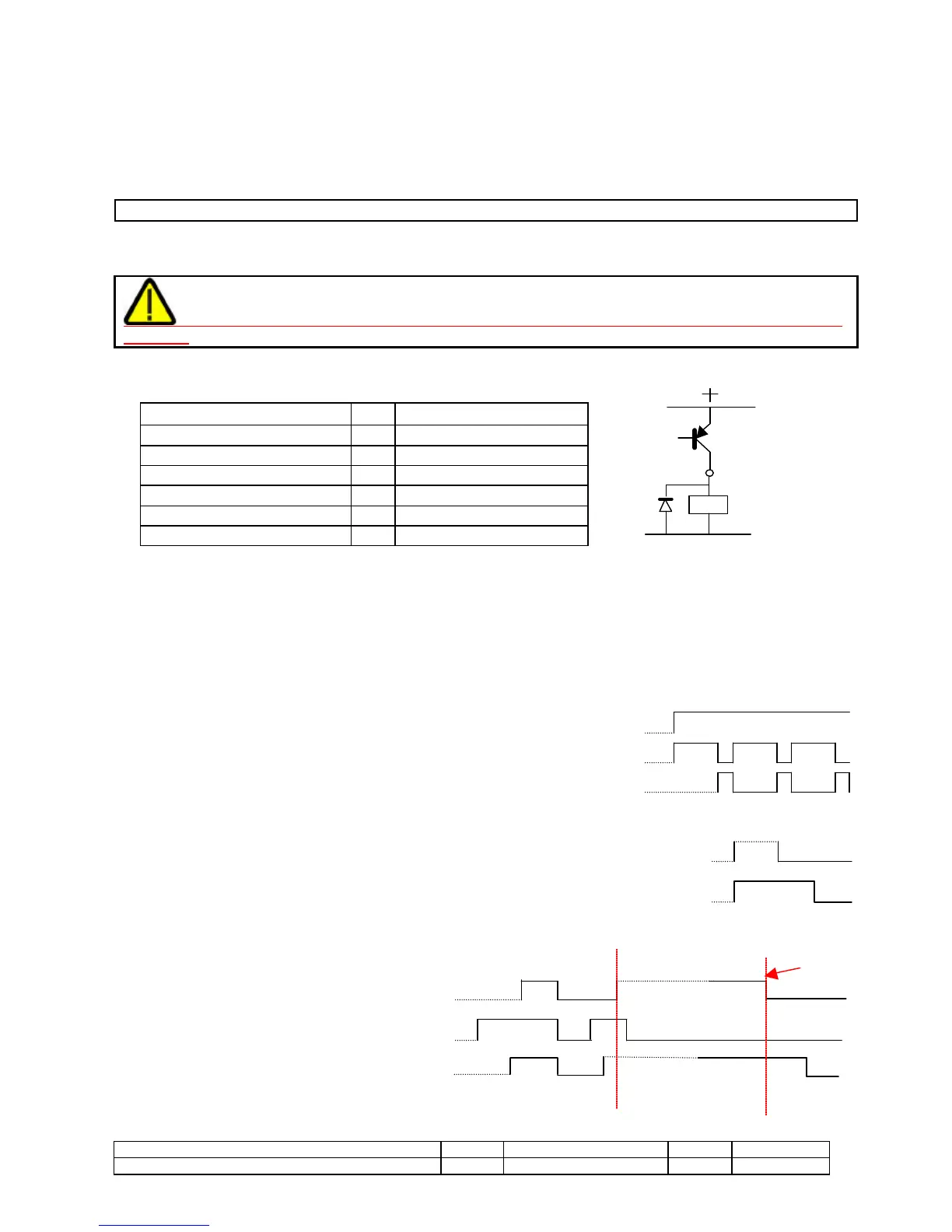

2.11. SPECIAL FUNCTIONS
The M02 has a transistorised output (28) for controlling a dc contactor. A number of functions can be programmed individually for output
28 – MOTOR PRE-HEATING, GLOW PLUG PRE-HEATING, STARTER, RESET, GAS MOTOR CONTROLS AND DOUBLE
STARTING.
WARNING to protect the transistor from overloading a 1A diode must be fitted in parallel with the contactor’s coil, as shown
in the layout.
2.11.1. PROGRAMMING
MISC. SETTINGS (OUTPUT 28 ) TIME SETTINGS
MOTOR PRE-HEATING THRESHOLD SETTING
GLOW PLUG PRE-HEATING GLOW PLUG 10 – 120”
STARTER STARTER 0 – 10”
EV. GAS EV. GAS 0 – 10”
RESET RESET 2 – 10”
DOUBLE STARTING
2.11.2. MOTOR PRE-HEATING (out 28) ( Default )
The Motor Pre-heating function can be controlled in two ways:
1. When the unit is running, or the programming switch is set to Cut-out, it is deactivated, otherwise it is always active;
2. If the motor temperature transducer is connected (16), it can be used to programme the activation (40°C) and deactivation
(50°C) settings, when the motor temperature has reached the set value.
See analogue inputs.
Programming under misc. Settings and threshold settings.
2.11.3 SPARKPLUGS PRE-HEATING (out 28)
A transistorised output is provided that may be programmed to
command a pre-heating system of the sparkplugs. This output is
controlled by the software and if programmed to pre-heat the
sparkplugs, each time it is triggered the pre-heating cycle is enabled
before each starting cycle.
In manual to press OK to activate the sparkplugs pre-heating for the desired time.
2.11.4 STARTING MOTOR (out 28)
Output 28 can be configured also with the starter function. In this case upon each starting
cycle the output is enabled for the set timing.
In manual to press OK to activate the starter for the desired time.
2.11.5. GAS SOLENOID VALVES
(for gas motors) (out 28)
When the start command is given the
actuator is powered (OUT 15/54)and it
opens the butterfly valve, after the ignitions
are fed (OUT 27)with the gas solenoid
valve is opened after the delay set (OUT
28) This allows unburned mixtures to be
removed before each start up.
STARTER
