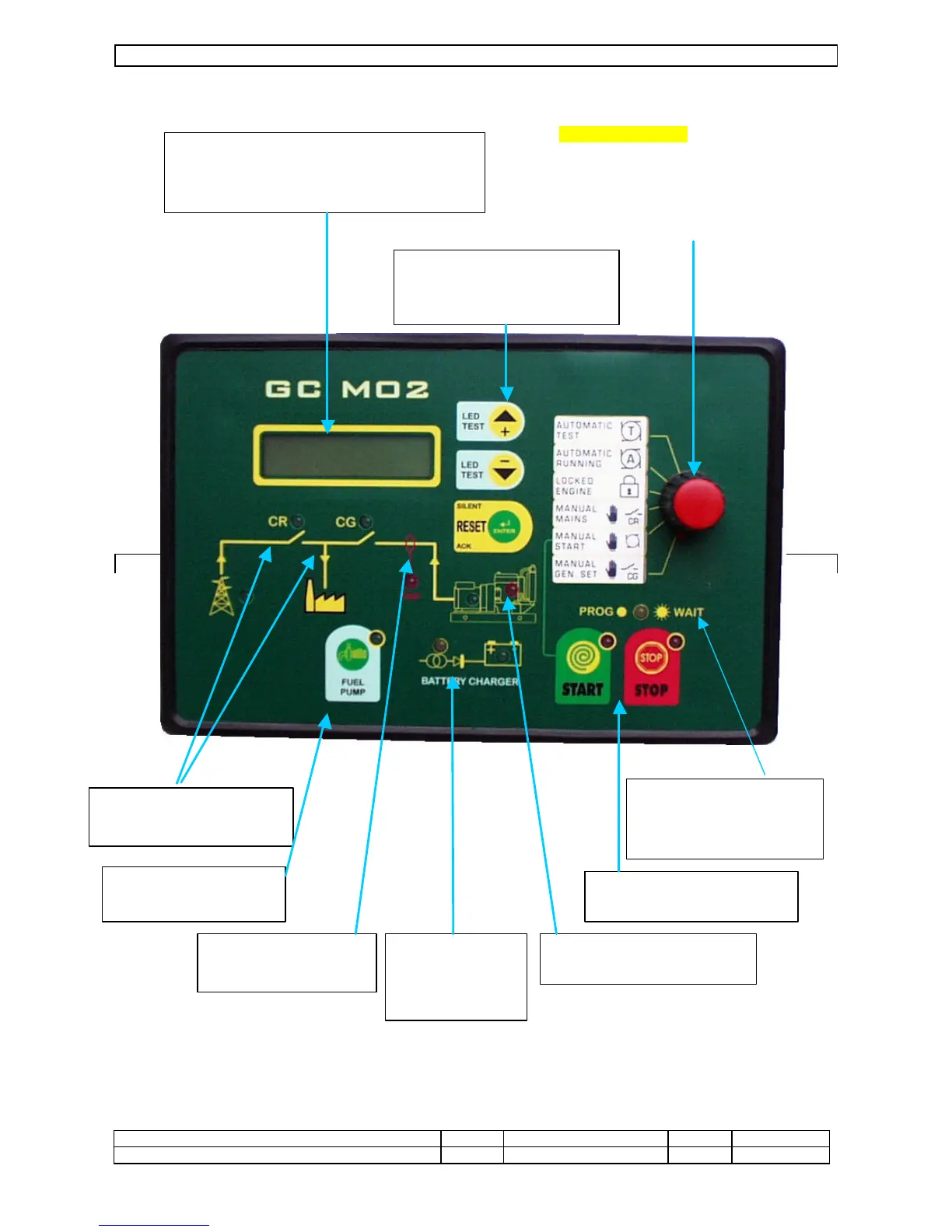

1.3 VIEW OF THE GC-M02 UNIT
Functional description of the block diagrams.
1. Alphanumeric display of visualization of all the
measures and the literal description of the type of alarm
(es. Reserve Fuel).
3. Butt
on + /
-
of selection measures
and button of reset for restoration
functions or unlock alarm.
2. Commutator of programming:
1 Automatic test. (T)
2 Automatic running. (A)
3 Block (Locked) excluded logic.
4 Feeding forced from mains (CR)
5 Manual starting.
6 Feeding forced from generating (CG).
4. Mains and s
witching
mains/gen-set situation
5. Manual command fuel
pump
6. Intervention of the
differential protection
7. Fed battery charger
and battery
8. Signalings gen
-
set running and
alarm motor
9. Buttons for the manual command
of work or stop
10. The flash indicates that the
microprocessor is elaborating a
function.
