7. MAINTENANCE HI ROLLER - BELT CONVEYORS
7.7. HEAD & DRIVE PULLEY LAGGING HI ROLLER, MINI ROLLER, LO ROLLER & HI LIFE
114 P115506 R3
Figure 7.42

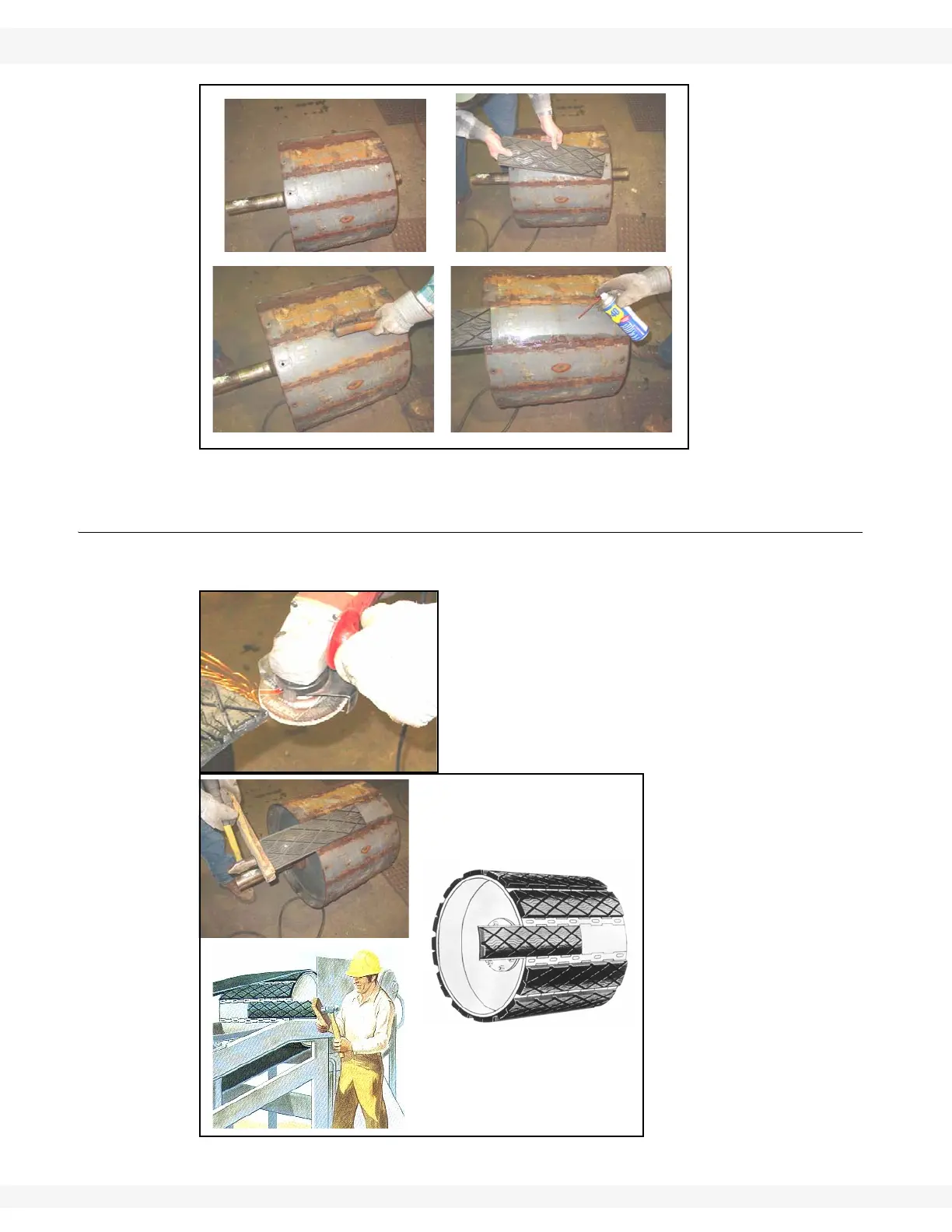

7.7.2. INSTALLATION OF NEW LAGGING PLATES
1. Install new lagging plates:
•In some cases, the metal edge will have to be
ground smooth so that the metal plate can be eas-
ily installed in the retainers.
•Drive new lagging plates
in the retainers with a
hammer and wooden
block to protect the metal
edge.
