HI ROLLER - BELT CONVEYORS 3. CONVEYOR COMPONENTS
HI ROLLER, MINI ROLLER, LO ROLLER & HI LIFE 3.2. COMPONENT LIST
P115506 R3 19

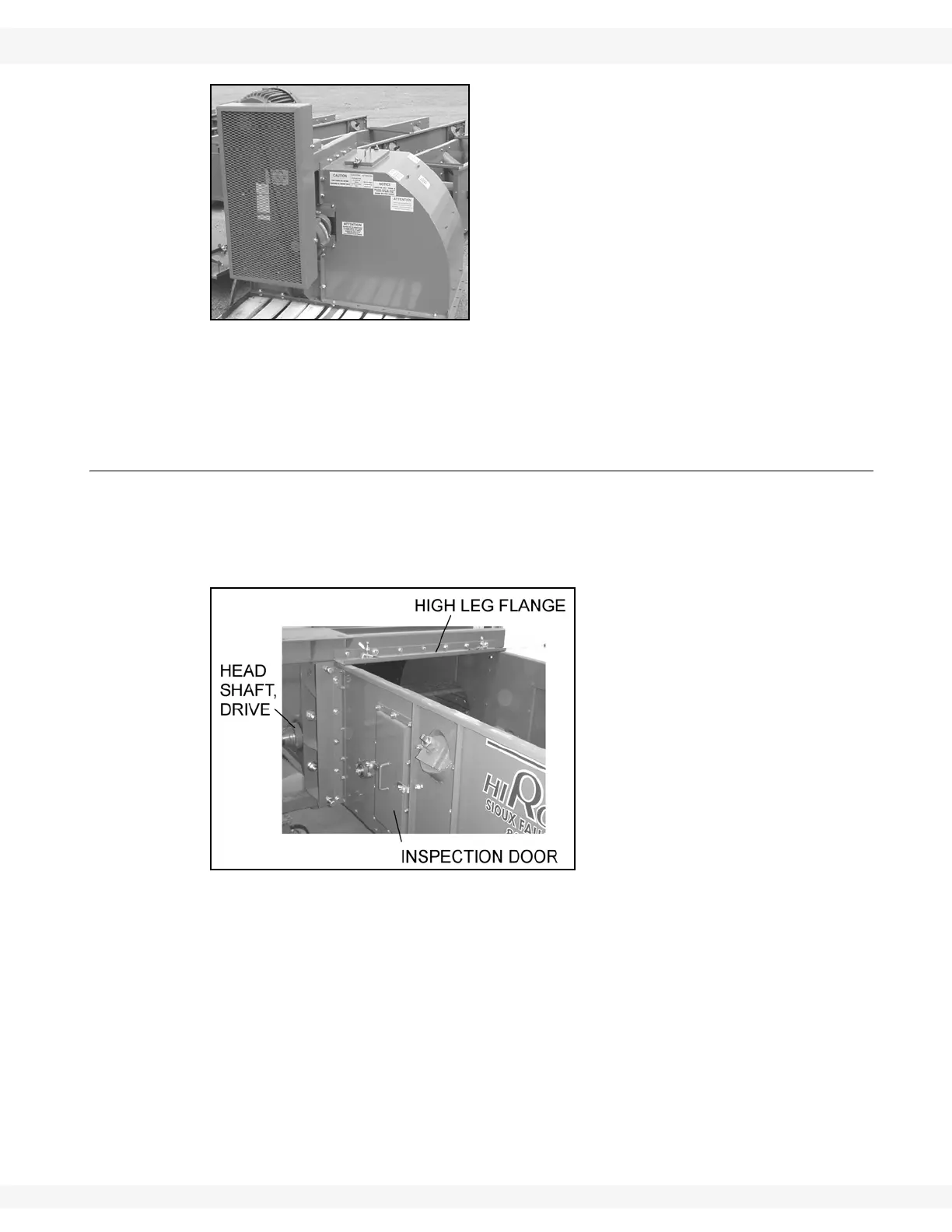

Figure 3.3
Note: The shaft mount drive with synchronous cog-belt (Figure 3.3) is the most
common type of drive. The in-line drive with synchronous cog-belt final drive belt
and in-line drive with direct coupled drive (not shown) are not as common.
3.2.3. TRUNKING SECTIONS
HEAD / DRIVE END TRUNKING SECTIONS
• High leg end channel, inspection door location, and special flanges (Fig-
ure 3.4).
Figure 3.4
TAIL / NON-DRIVE END TRUNKING SECTIONS
• High leg end channel, inspection door, and two equal middle flange chan-
nels and opposite end of the high leg end channel.
INTERMEDIATE TRUNKING SECTIONS
• Each intermediate section has two equal flange channels, an equal flange
channel on the end, and another in the middle of each section (Figure
3.5).
