AGI HI ROLLER - Tail Sections; Take-Up Sections

3. CONVEYOR COMPONENTS HI ROLLER - BELT CONVEYORS
3.2. COMPONENT LIST HI ROLLER, MINI ROLLER, LO ROLLER & HI LIFE
24 P115506 R3
3.2.7. TAIL SECTIONS

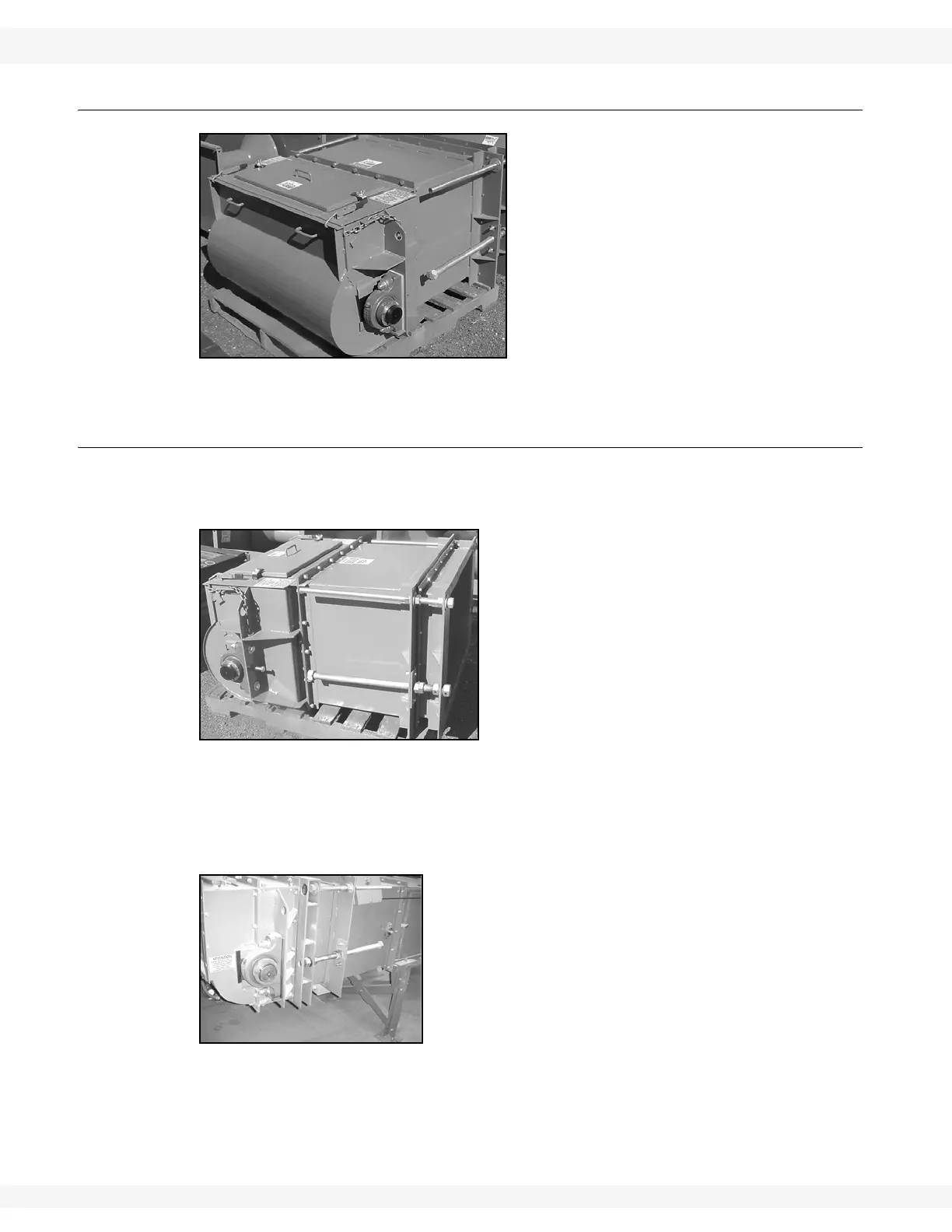

Figure 3.13 Standard Tail Section w/ Inner & Outer Box Take-Up
3.2.8. TAKE-UP SECTIONS
There is one take-up rod on each side of the take-up section on the centerline of
the tail shaft bearings and they are used to tighten the belt (Figure 3.14).
Figure 3.14 Tail Take-Up Section w/ Rods and Leveling Rods
SPECIAL TAKE-UP SECTIONS
The take-up head section works in the same manner as a sliding box tail. The
take-up rods located on the sides tighten the belt (Figure 3.15).
Figure 3.15 Head Take-Up Sections w/ Rods and Leveling Rods
The sliding plate take-up head section uses a sliding plate to mount the head
pulley bearings. The conveyor belt is tightened with the take-up rods mounted
directly behind the bearing mounting (Figure 3.16).
