5. INSTALLATION HI ROLLER - BELT CONVEYORS
5.5. LEVELING TAIL TAKE-UP SECTION HI ROLLER, MINI ROLLER, LO ROLLER & HI LIFE
52 P115506 R3

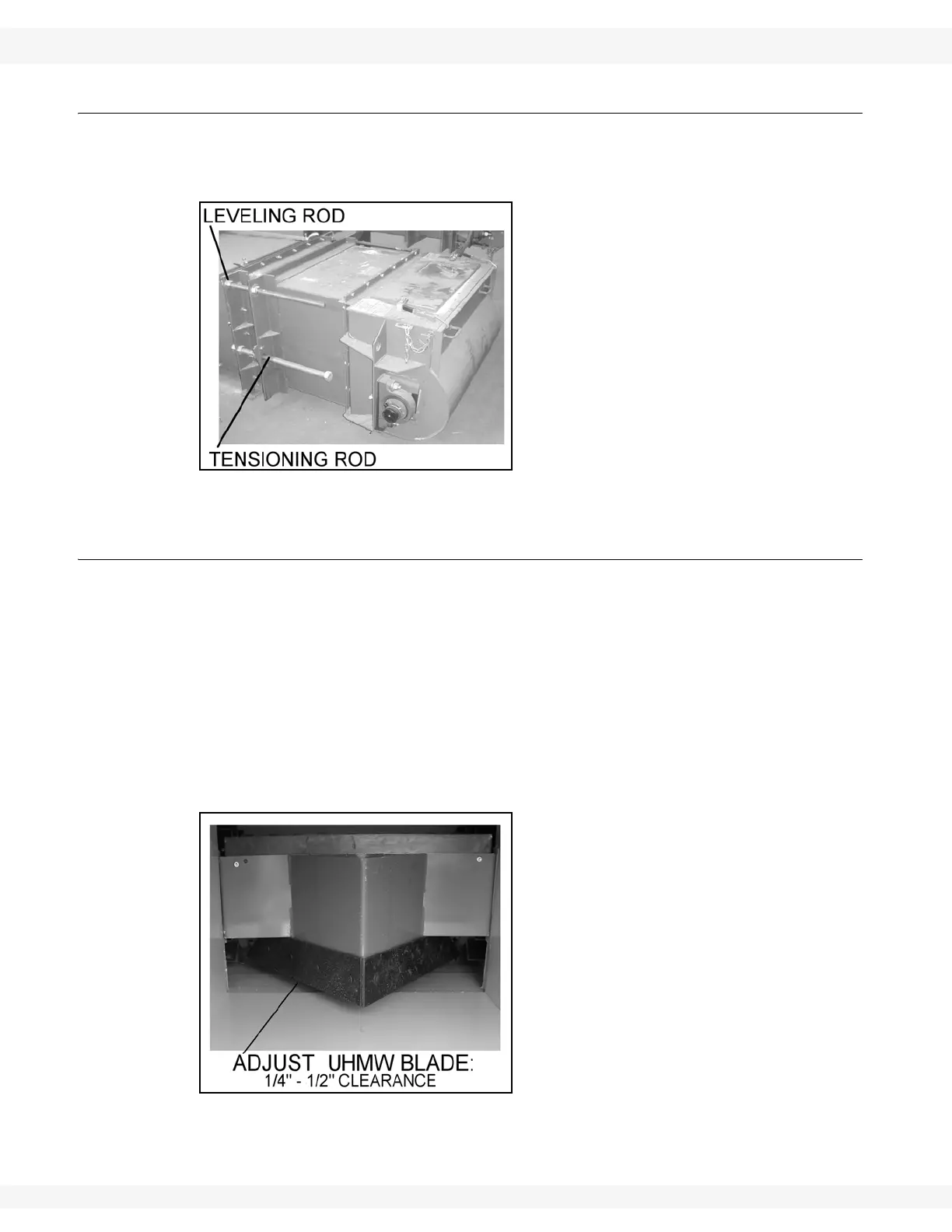

5.5. LEVELING TAIL TAKE-UP SECTION
Important: Take-up rods, nuts, and washer areas must be properly lubricated.
Level tail with leveling rod.
Figure 5.21
5.6. V-PLOW ADJUSTMENT
Important: The v-plow must be adjusted after the conveyor belt has been installed and
properly tensioned.
The v-plow is NOT set at the factory. It must be adjusted so that the UHMW
(black plastic) blade is 1/4" - 1/2" above the conveyor belt. The v-plow may have
to be set at an angle to follow the belt line as it rises to the tail pulley.
• After adjustment, watch to make sure that the splice protector / wiper
cleats do not hit the v-plow blade when they pass under the v-plow.
The v-plow shown in Figure 5.22 is installed in the tail section before the belt has
been installed.
Figure 5.22
