3. CONVEYOR COMPONENTS HI ROLLER - BELT CONVEYORS
3.2. COMPONENT LIST HI ROLLER, MINI ROLLER, LO ROLLER & HI LIFE
20 P115506 R3

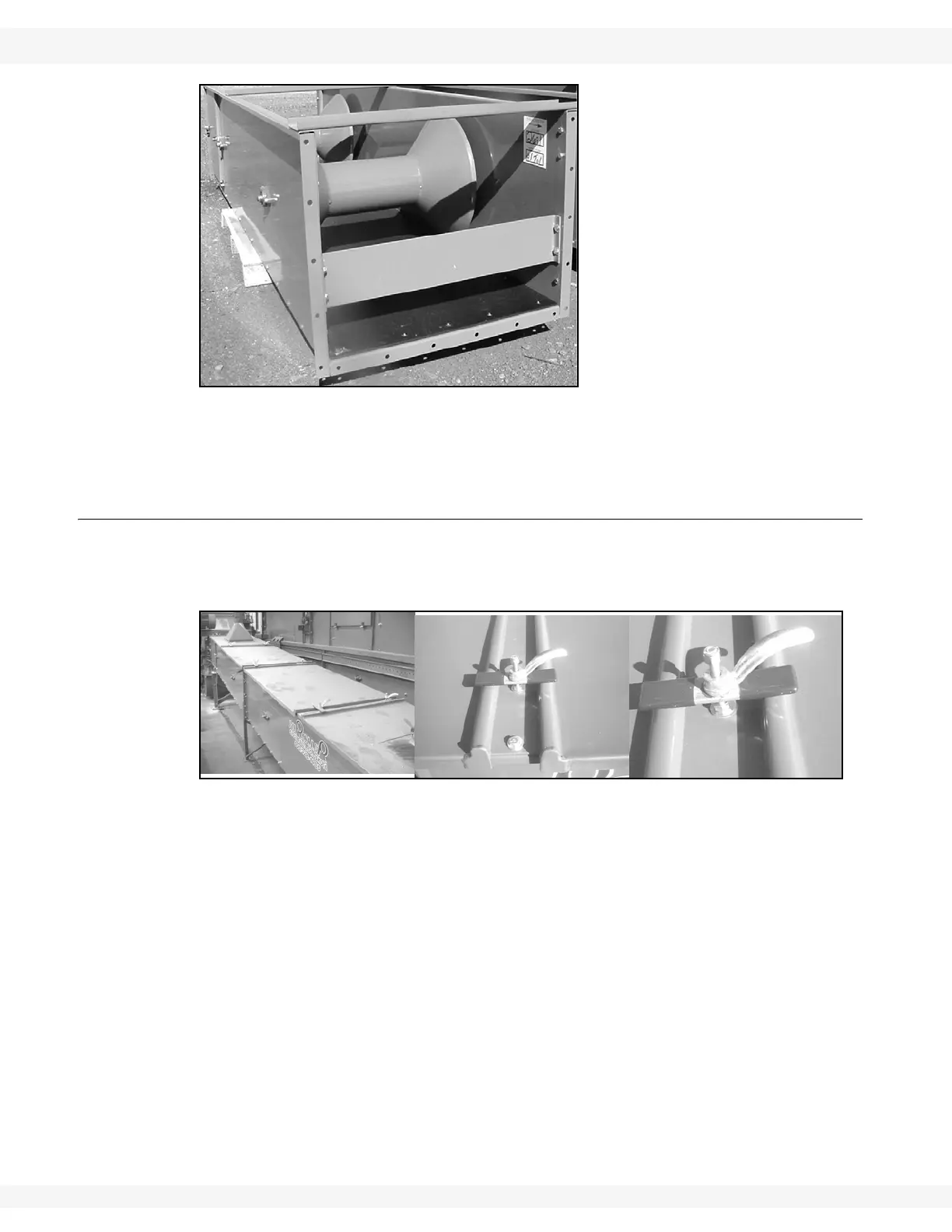

Figure 3.5
Note: For ease of assembly, sections are labeled and numbered starting with 1 on the
tail section.
3.2.4. COVERS
Covers are made to fit over the width of the conveyor and 5’ of a section.
STANDARD 5’ COVERS
Figure 3.6
Note: Covers can be cut to length at the factory if ordered to specific lengths. (Contact
Hi-Roller’s engineering department.)
INLET/LOADER
• Figure 3.7 shows a hold-down clamp (with a bend) near the inlet.
