5.4.6. NORMAL IDLER WEAR
• Normal Idler Wear - Hi Roller idler wear should not be evident in the weld
area; a good rule of thumb is that the paint should not be worn off within 1” of
the weld area (Figure 5.20).
• Proper belt tensions can be set using Hi Roller Conveyor's belt tension proce-
dure. (Section 5.4.5.)

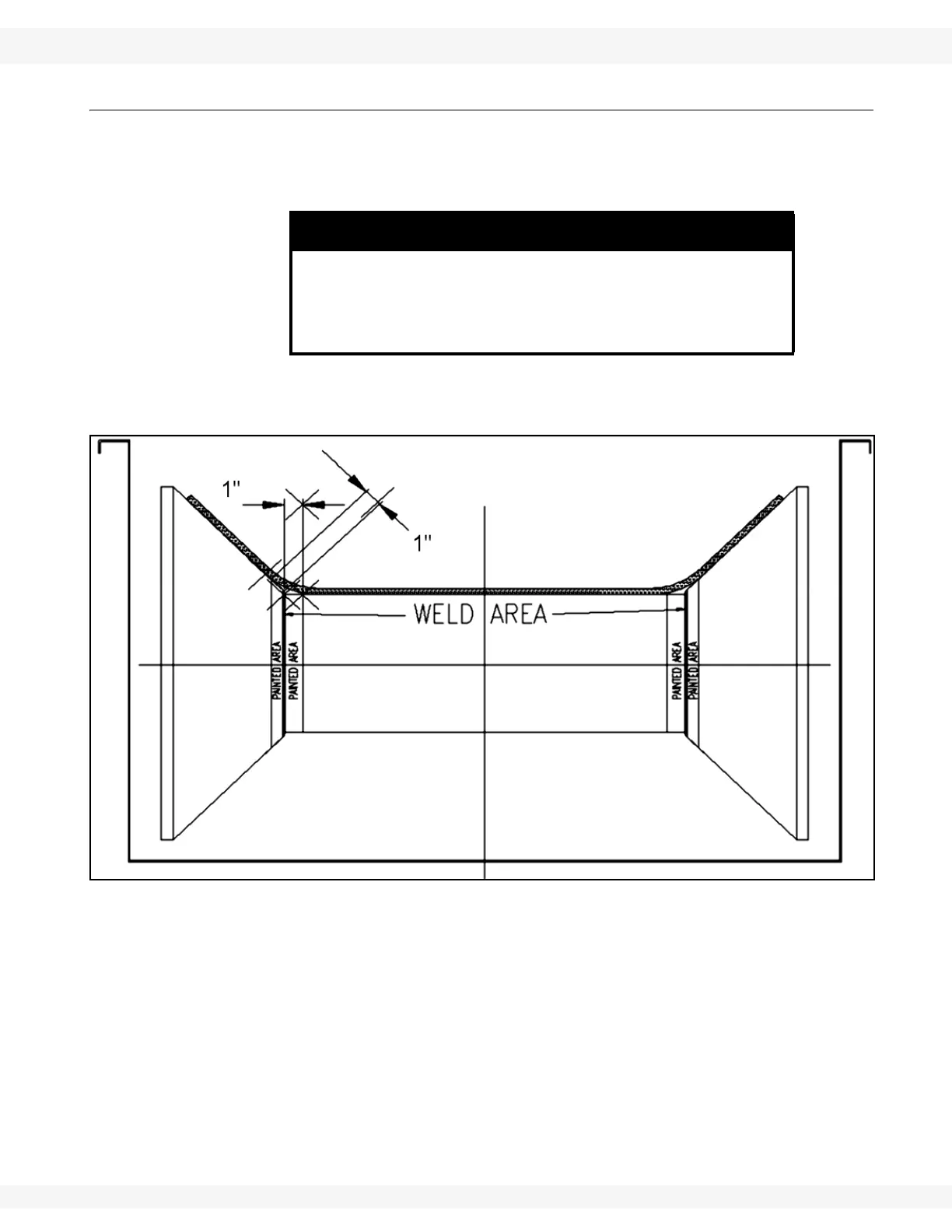

Figure 5.20
NOTICE
Worn areas too close to the weld area indicate that belt
tension is too loose.
This will dramatically increase the wear on the idler and
lead to premature failure.
