5. INSTALLATION HI ROLLER - BELT CONVEYORS
5.7. COVER INSTALLATION HI ROLLER, MINI ROLLER, LO ROLLER & HI LIFE
54 P115506 R3

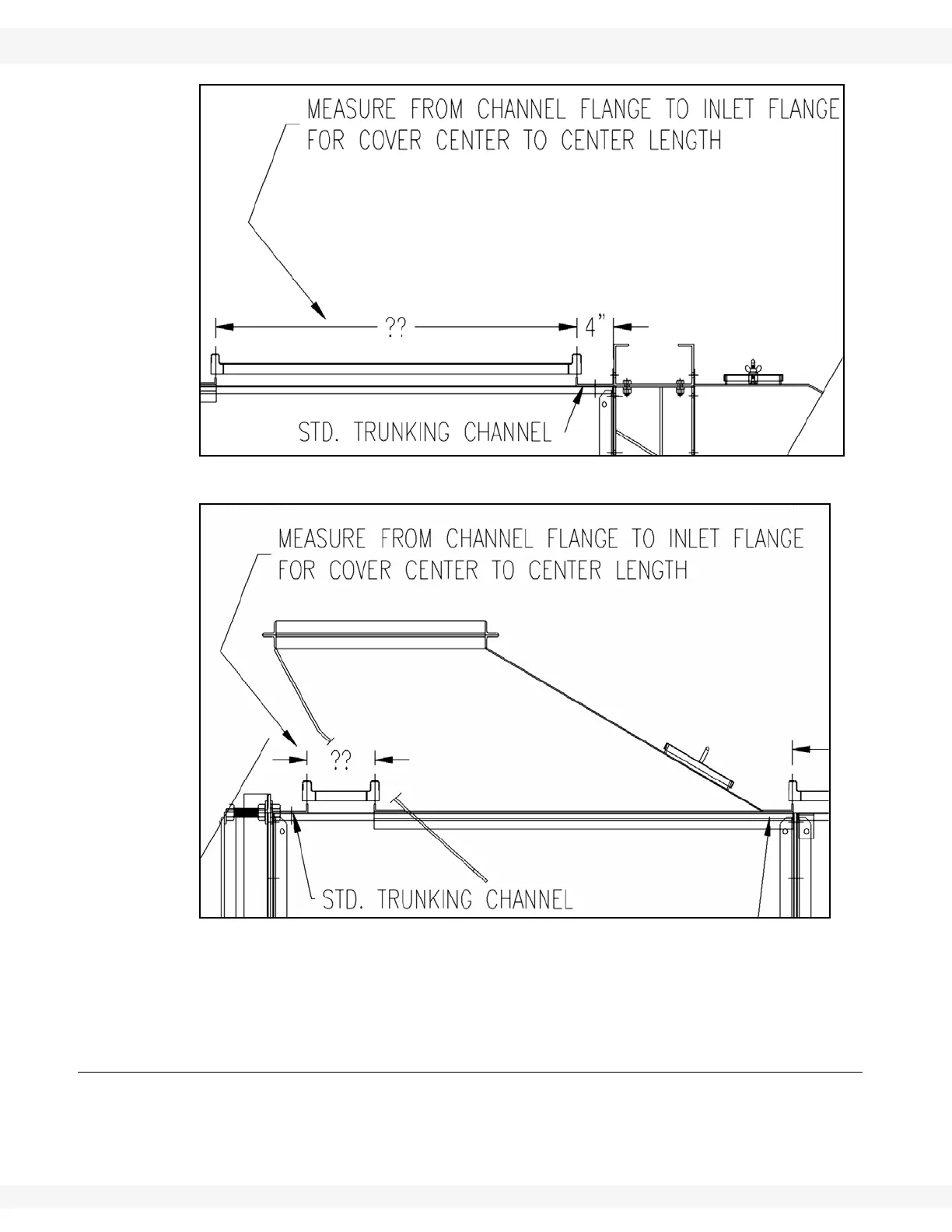

Figure 5.25
Figure 5.26
5.7.2. CUT-TO-LENGTH COVERS
1. To measure, determine the length from the cover channel flange that the
cover will fit over as shown Figure 5.24. In the figure, the measurement
below this length is 24".
