5.2.2. TAIL SECTION MOUNTING

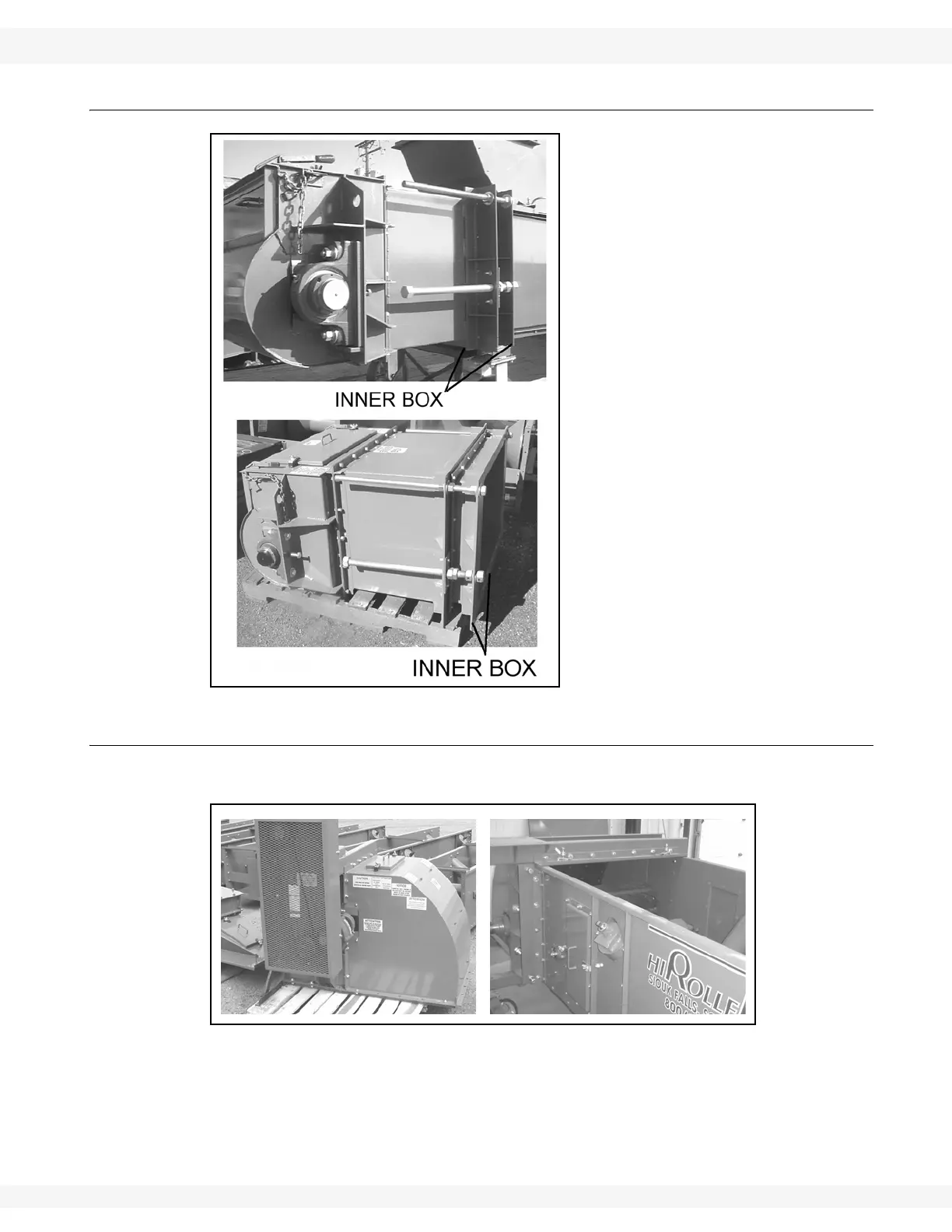

The tail section must be properly
supported so there is no vertical or
horizontal movement of the inner box
of the take-up section. The support
structure should be attached to the
angle vertical flange of the inner box
(left, top picture), or the angle bottom
flange bolted connections of the
inner box of the take-up section (left,
bottom picture).
All conveyors with a belt width larger
than 48” or a take-up length over 18”
must have a sliding support attached
to the stub tail for support in the tail
and outer box of the take-up. This
sliding support is to be provided by
the customer/contractor.
5.2.3. TRUNKING INSTALLATION
1. Install head end trunking.
Figure 5.3
