5. INSTALLATION HI ROLLER - BELT CONVEYORS
5.2. HEAD END & TAIL END TRUNKING INSTALLATION HI ROLLER, MINI ROLLER, LO ROLLER & HI LIFE
36 P115506 R3
STANDARD HEAD SECTION
Mounting supports can be attached to the bearing mounting vertical plate or the
bottom head section bolted connections of the standard head section as shown
in Figure 5.1.

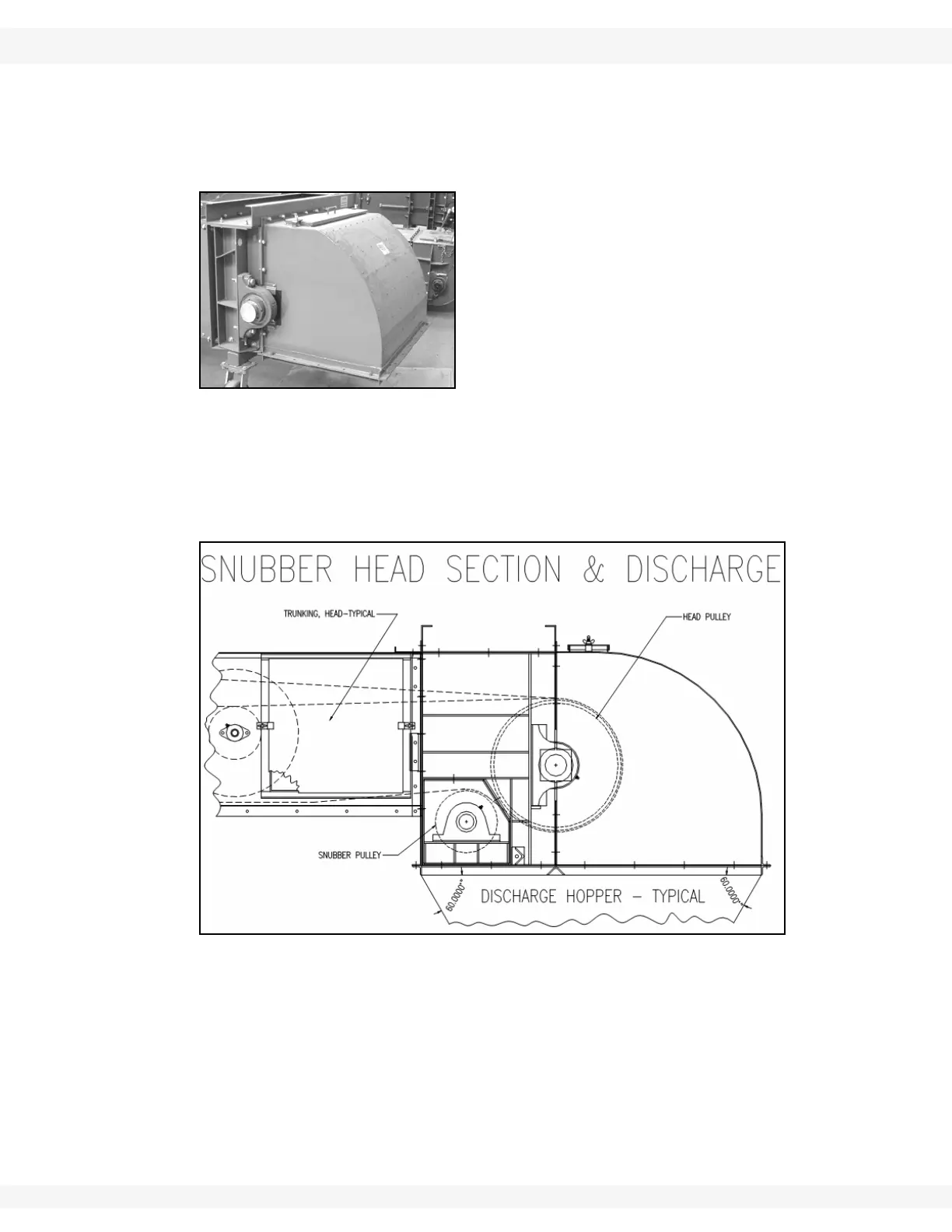

Figure 5.1
SNUBBER HEAD SECTION
Mounting supports can be attached to the bearing mounting vertical plate or the
bottom head section bolted connections of the special snubber head section as
shown in Figure 5.2.
Figure 5.2
