HI ROLLER - BELT CONVEYORS 3. CONVEYOR COMPONENTS
HI ROLLER, MINI ROLLER, LO ROLLER & HI LIFE 3.2. COMPONENT LIST
P115506 R3 23

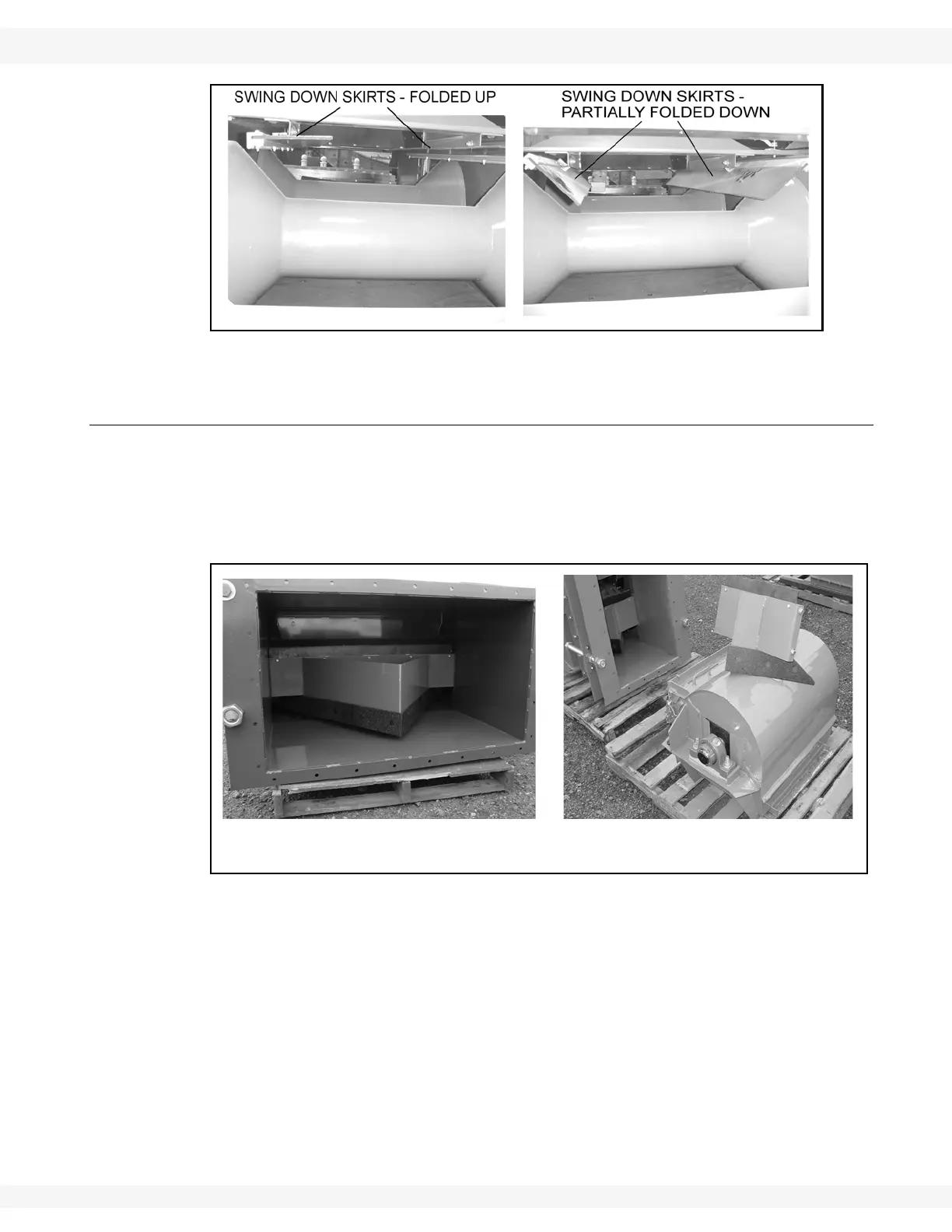

Figure 3.11
3.2.6. V-PLOW
The v-plow is located just in front of the tail pulley. The v-plow:
• acts as a dam to hold back large amounts of spilled material that would
plug the conveyor, and
• helps direct spilled material to the side of the tail section to be reloaded.
Figure 3.12 V-Plow
SHIPPED ATTACHED SHIPPED LOOSE
