HI ROLLER - BELT CONVEYORS 9. APPENDIX
HI ROLLER, MINI ROLLER, LO ROLLER & HI LIFE 9.1. SKIRT INSTALLATION DRAWINGS
P115506 R3 125
9. Appendix
9.1. SKIRT INSTALLATION DRAWINGS

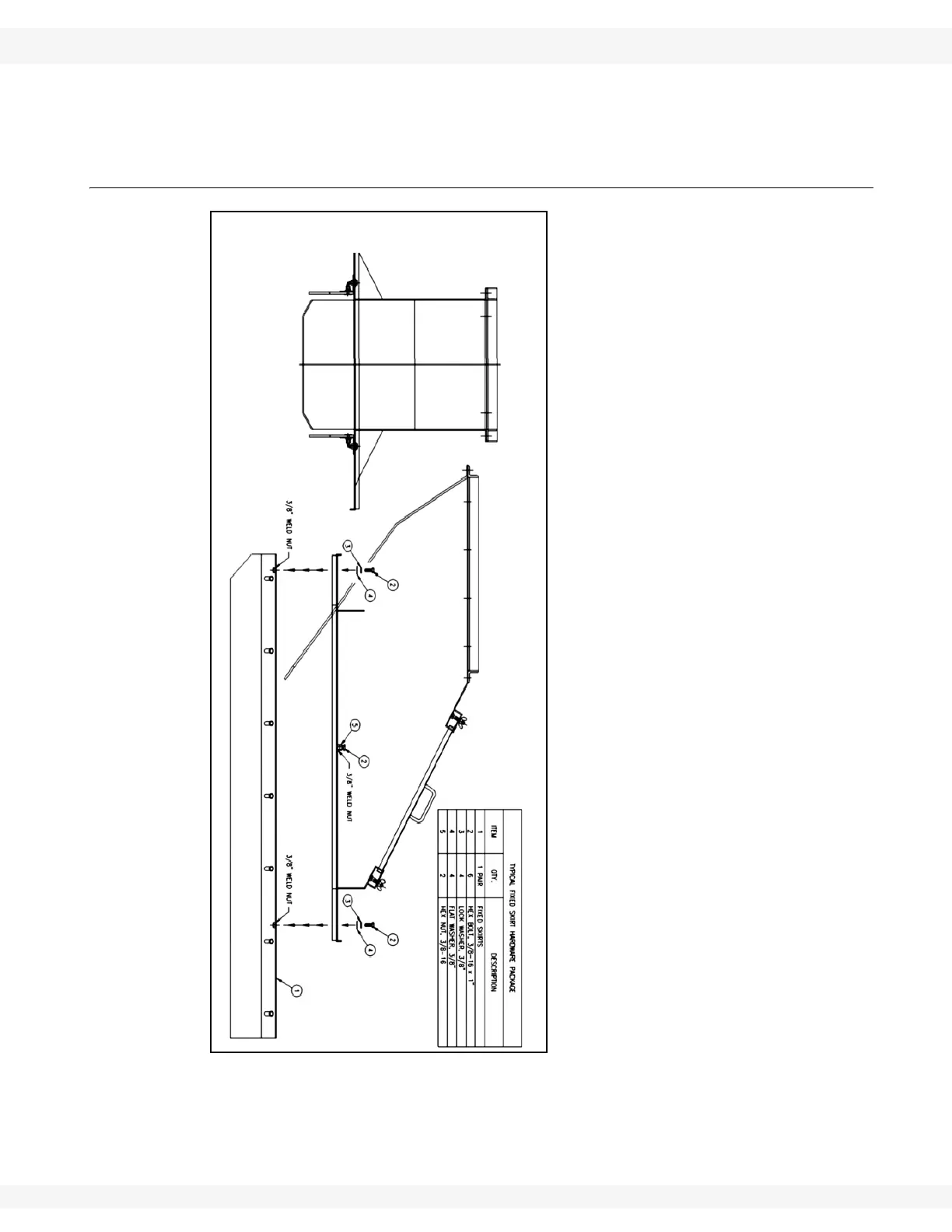

Figure 9.1 Fixed Skirt Installation Type IV Inlet Model 18-54
