HI ROLLER - BELT CONVEYORS 5. INSTALLATION
HI ROLLER, MINI ROLLER, LO ROLLER & HI LIFE 5.9. HAZARD MONITORING DEVICES
P115506 R3 59
5.9.3. BELT ALIGNMENT MONITORS
Note: The belt must be properly installed and tracked before belt alignment monitors
can be installed. Refer to Section 5.4.
Note: Model number equals the width of the belt.
Conveyor belt alignment monitors must be wired properly into the control circuits
so that the conveyor shuts down when a belt misalignment is detected.

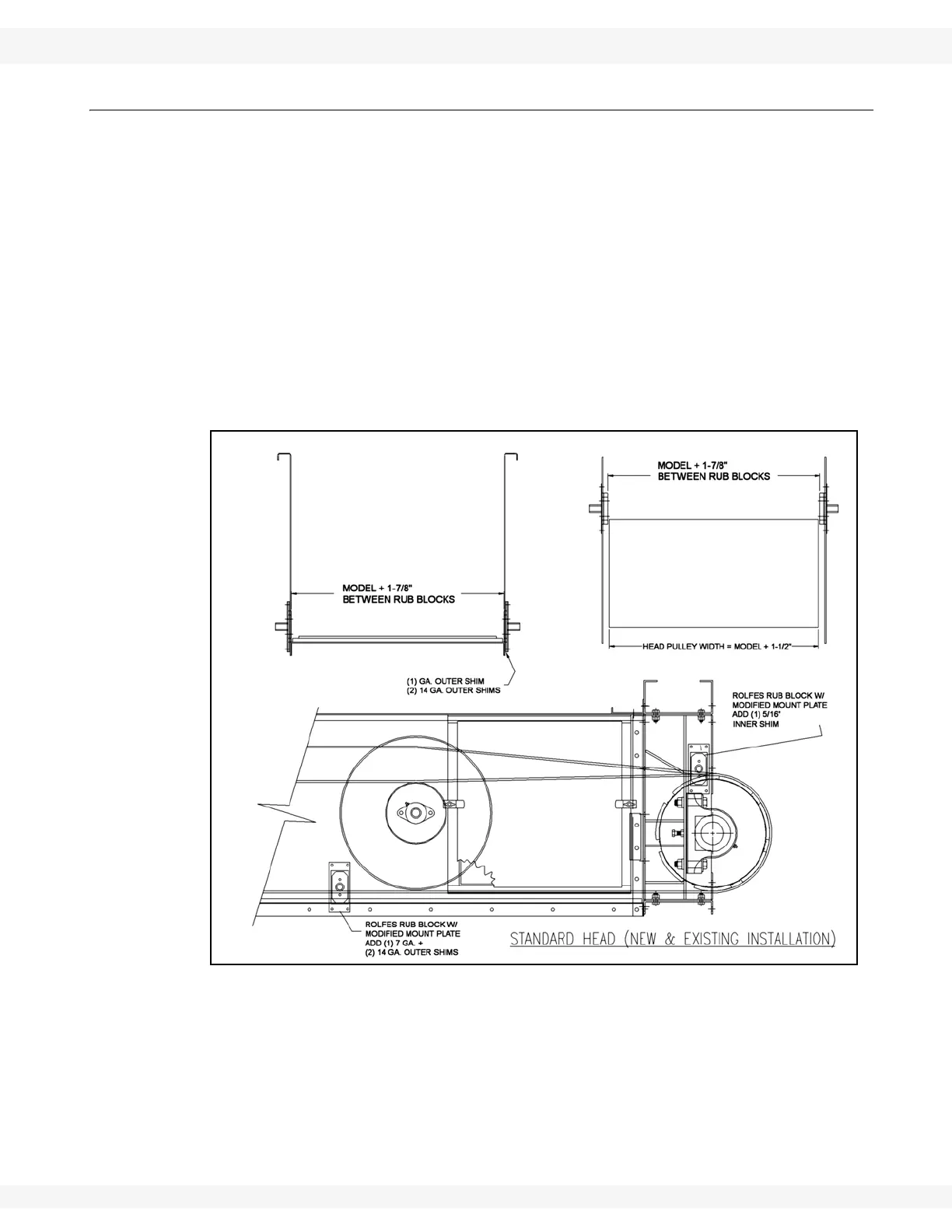

STANDARD HEAD SECTION (Figure 5.34)
• The head pulley and belt alignment can be monitored with one rub block
installed near the top centerline of the head pulley to detect belt and head pul-
ley misalignment.
• The return belt alignment can be monitored with one rub block installed on
the bottom return belt.
Figure 5.34
