5. INSTALLATION HI ROLLER - BELT CONVEYORS
5.2. HEAD END & TAIL END TRUNKING INSTALLATION HI ROLLER, MINI ROLLER, LO ROLLER & HI LIFE
38 P115506 R3

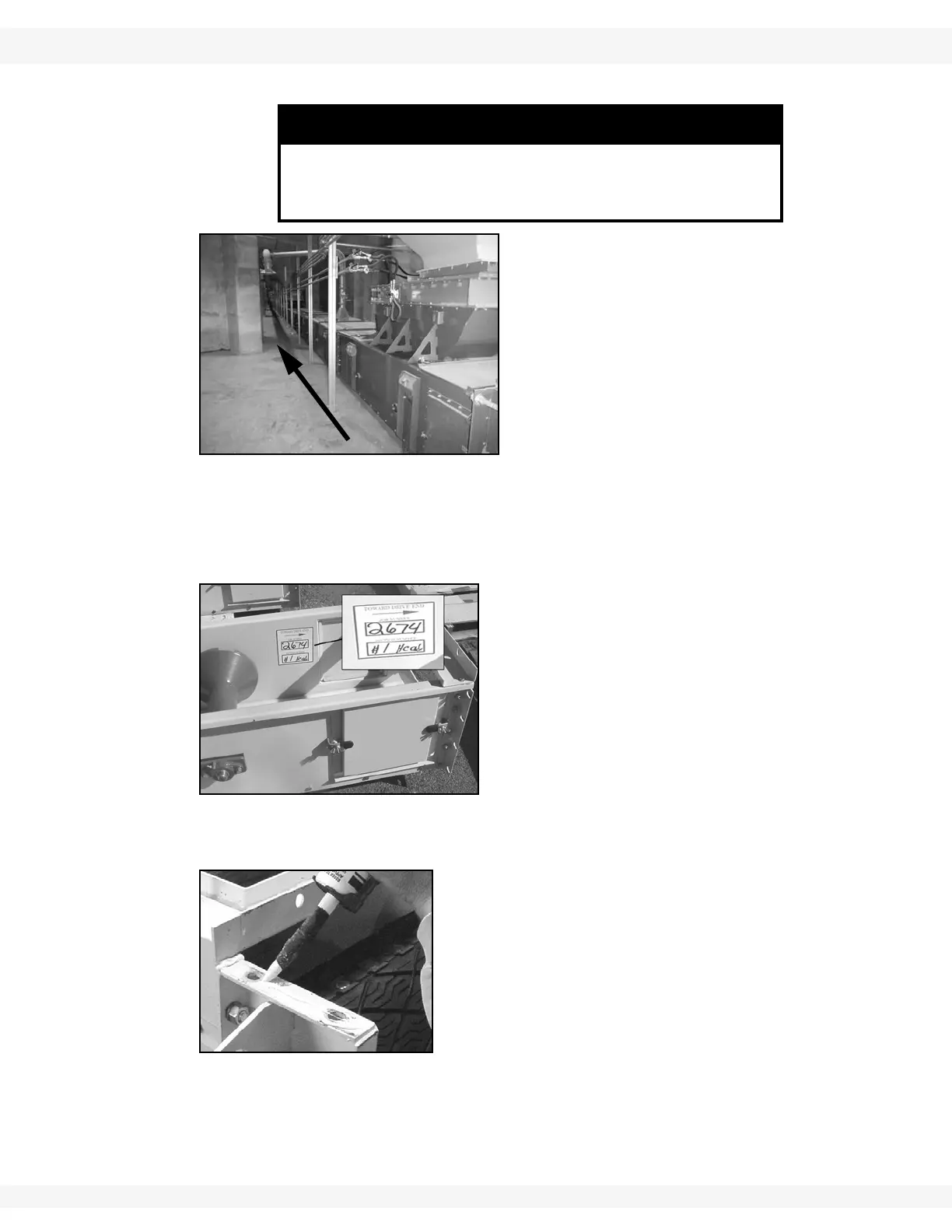

Figure 5.4
2. Take note of the trunking identification/numbering system; use this to help
you assemble the trunking in the correct order (Figure 5.5).
Figure 5.5
3. Caulk and seal all bolt-together flanges (Figure 5.6).
Figure 5.6
4. Check and double-check with a laser, transit, or wire line that trunking is
installed straight and level .
5. Maintain clearances and install tail end trunking section.
NOTICE
Trunking must be installed straight and level with a
tolerance less than +/- 1/8” over the entire length of the
conveyor.
