7. MAINTENANCE HI ROLLER - BELT CONVEYORS
7.7. HEAD & DRIVE PULLEY LAGGING HI ROLLER, MINI ROLLER, LO ROLLER & HI LIFE
116 P115506 R3

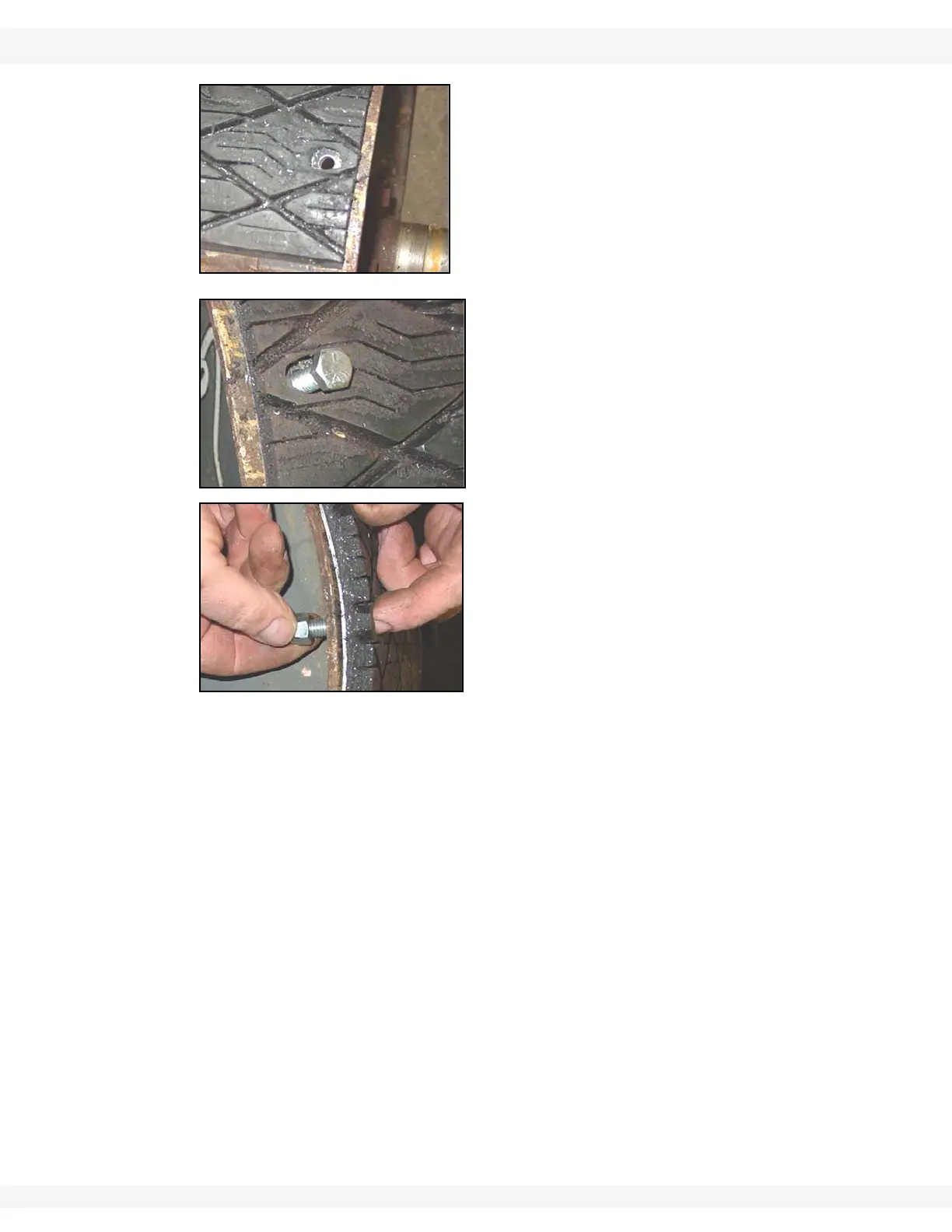

•Lagging plate rubber needs to be clean for the
bolt head.
•Install 3/8" (9.5 mm) bolt from the outside of
the lagging plate so that the locknut is installed
on the inside of the pulley.
•Locknut is installed on the inside of the pulley
and properly tightened.
4. Install head pulley if removed.
5. Re-splice the belt if necessary.
6. Tighten the belt to proper specifications.
7. Install all guards, inspection doors, etc.
8. Replace all removed attachments, discharges, spouts, etc.
