Agilent 1200 Preparative Pump User Manual 63
Using the Preparative Pump
4
Setting Up the Pump
Actual Volume: Set the actual volume after refilling the solvent bottle. When
turning on the pump, the current filling will be calculated based on the flow
rate and the run-time of the pump.
Total Volume: This value is used to calculate the % filling of the bottle for the
display in the system diagram.
You can select not to start the run, if the current fill level is below a
user-defined value, and to turn-off the pump before it is running out off
solvent.

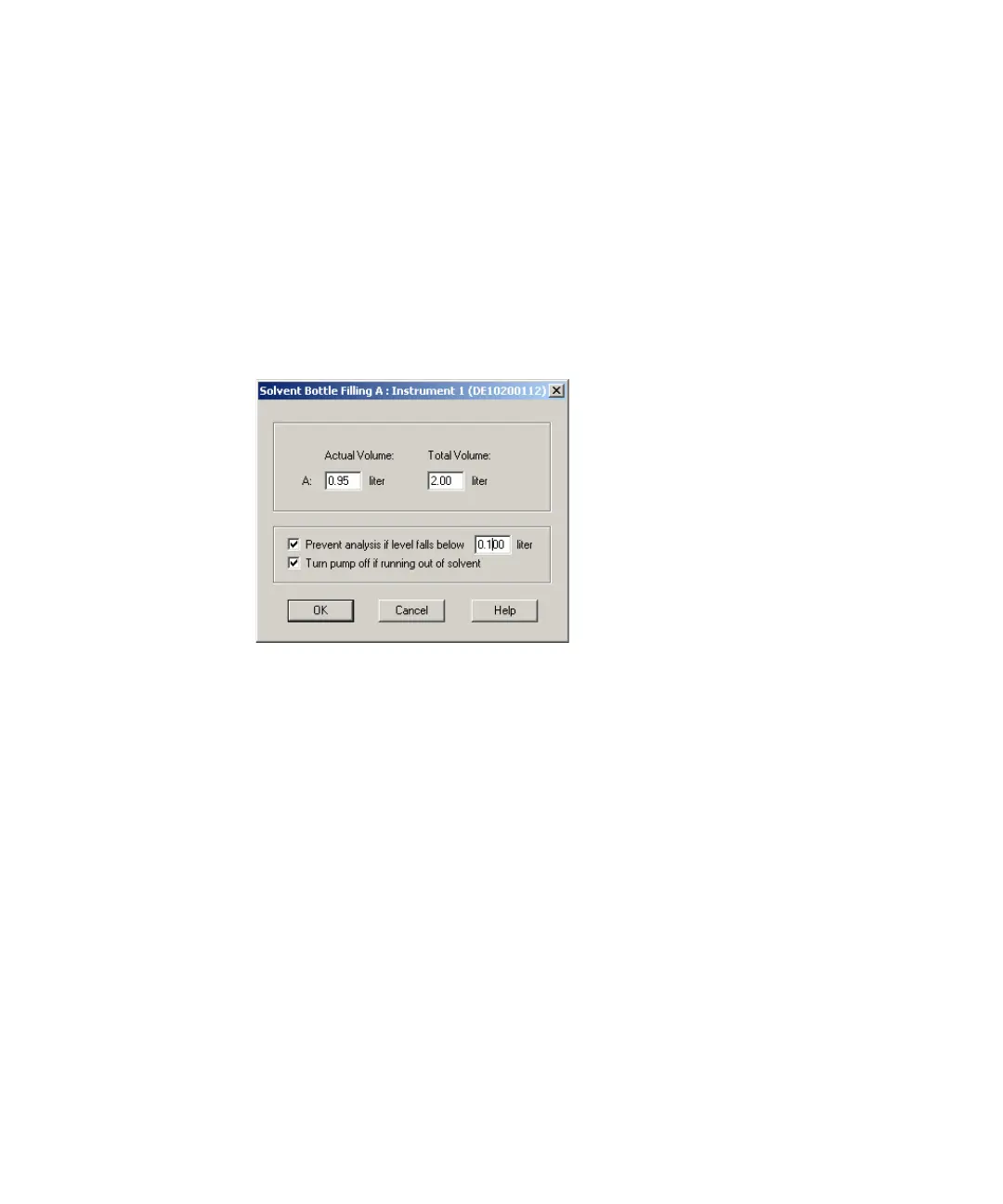

Figure 21 Solvent Bottle Filling dialog box
The Solvent Bottle Filling dialog box is also available for channel B on gradient
pump systems.
